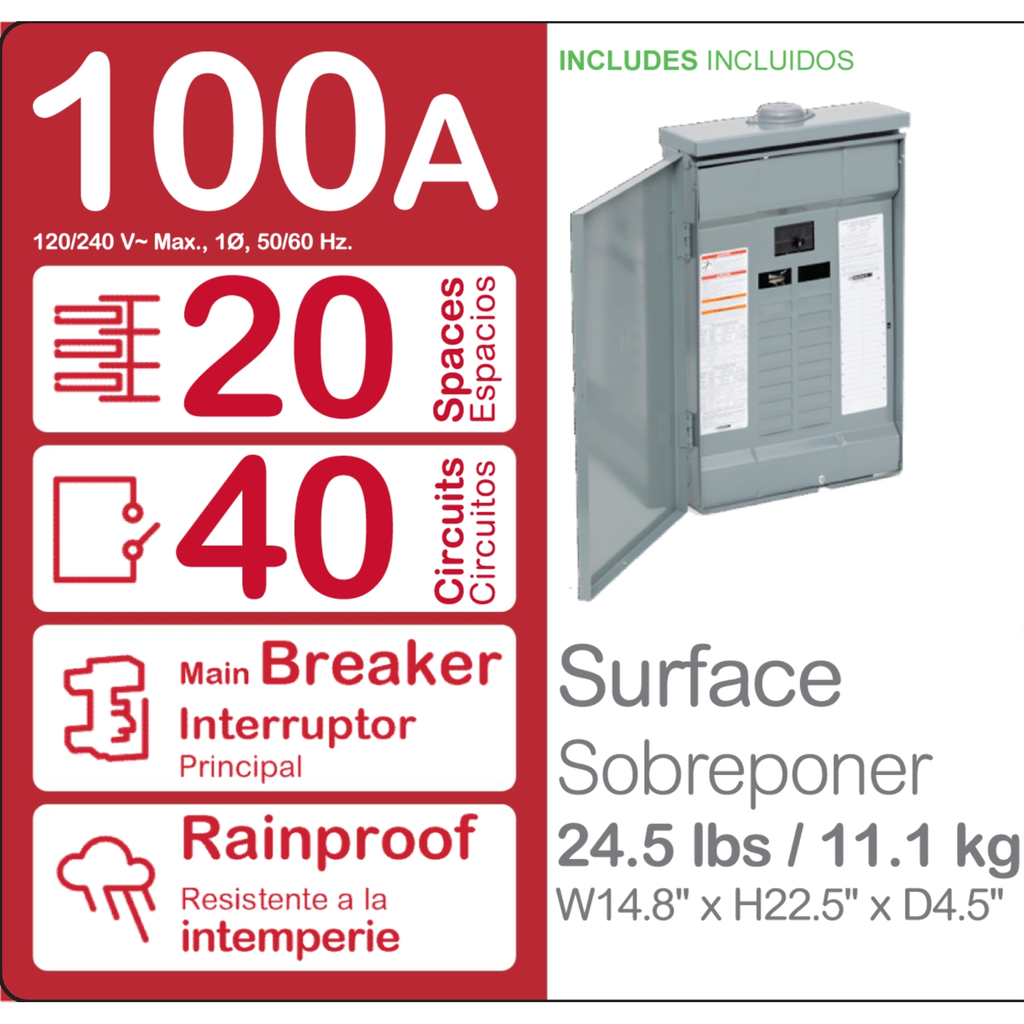

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 100A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 20 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 6 AWG to 1 AWG copper or 6 AWG to 2/0 AWG aluminum wire. This Homeline load center has a height of 22.04 inches, a width of 14.76 inches, and depth of 4.52 inches. Homeline load centers are UL Listed.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Bus Rated Current : 125.0 A
• Line Rated Current : 100 A
• Ue Rated Operational Voltage : 120/240 V AC
• Important Information Attributes
• Persona Type Ids : EU, EUA, LC, OM, SC
• Persona Type Names : End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
• Carbon Footprint Of The Distribution Phase A4 : 3.8333591505, 4 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 1 kg CO2 eq., 1.0594860712
• Carbon Footprint Of The Installation Phase A5 : 0.0458912305, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 57 kg CO2 eq., 56.7283322923
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0.1 kg CO2 eq., 0.087341
• Local Data Status : Publishable
• Local Publishable Date : 2026-03-25
• Return Indicator : Y
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 2531
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• Product Kit Identifier : N
• Awg Gauge : 6 AWG...2/0 AWG aluminium6 AWG...1 AWG copper
• Box Number : 4R
• Cover Type : surface cover
• Device Composition : grounding bar (ordered separately)
• Electrical Connection : lugs
• Enclosure Material : welded galvannealed steel
• Energy Efficiency Optimized : False
• Load Center Type : PoN Convertible Mains (breaker)
• Material : tin plated aluminium: busbar
• Number Of Circuits : 40
• Number Of Spaces : 20
• Number Of Tandem Circuit Breakers : 20
• Phase : 1 phase 3 wires
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Load Center
• Provided Equipment : circuit-breaker 1 ) 2P 100 A 120/240 V AC main supply ready assembled
• Range Of Product : Homeline
• Returnability : Yes
• Software Version : EIME v5.9.4
• Surface Finish : baked enamel Gray
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 62 kg CO2 eq.
• Database Version : 2022-01
• Data Source : extrapolated product
• Height Nominal : 560 mm
• Width Nominal : 375 mm
• Certificate Agency : UL listed file E-6294
• Nbr. Of Units In Pkg. : 1
• Customs Code : 8537109150
• Short Circuit Current : 22 kA
• Warranty In Months : 18
• Product Weight In G : 11340
• Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1000mm x362mm x 95mm, that is certified for UL 67.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Recyclability Potential In % : 89
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Ambient Air Temperature For Operation : -5 °C, -5 °C, 40 °C
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 61.7544097445
• Environmental Disclosure : ENVPEP2212003EN
• Eu Rohs Directive : Compliant
• Nema Degree Of Protection : NEMA 3R weatherproof enclosure
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2212003EN
• Pep Verification Date : 2025-08-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Phase : 1 phase 3 wires
• Product Or Component Type : Load Center
• Provided Equipment : circuit-breaker 1 ) 2P 100 A 120/240 V AC main supply ready assembled
• Range Of Product : Homeline
• Specifications
• Country of Origin : United States
• Depth : 115 mm
