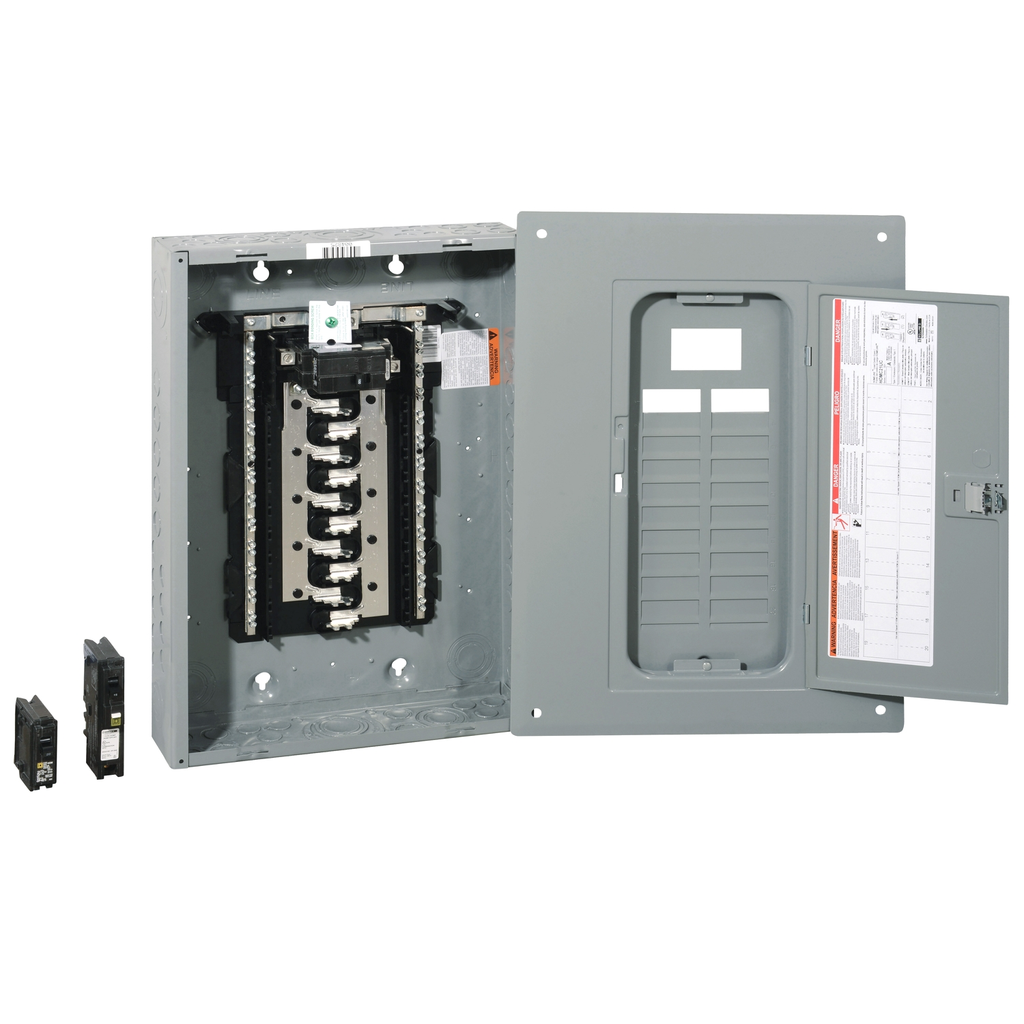

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use o

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0427711124
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 1 kg CO2 eq.
• 0.9874522299
• Provided Equipment
• circuit-breaker 2 ) 1P 20 A 120/240 V AC
• circuit-
• Phase
• 1 phase 3 wires
• Material
• tin plated aluminium: busbar
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 53 kg CO2 eq.
• 52.8714059963
• Nema Degree Of Protection
• NEMA 1 indoor enclosure
• Accessories
• HOMCRBGK1C
• HOMFPCP
• Persona Type Names
• End User
• Consumer
• Electrician
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0.1 kg CO2 eq.
• 0.087341
• Persona Type Ids
• EU
• EUA
• SC
• Carbon Footprint Of The Distribution Phase A4
• 1.3636056465
• 1 kg CO2 eq.
• AWG Gauge
• AWG 6...AWG 1 aluminium
• AWG 6...AWG 3 copper
• UE Rated Operational Voltage
• 120/240 V AC
• Surface Finish
• baked enamel Gray

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=PWFDS-SYRS-0080
• Complementary Attributes
• Bus Rated Current : 125.0 A
• Important Information Attributes
• B2B Bullet Point 1 : Fast installation, reliability, and superior circuit protection
• B2B Bullet Point 2 : Protects against equipment overloads and short-circuits
• B2B Bullet Point 3 : Tin and copper plated aluminum bus bars
• B2B Bullet Point 4 : Replacement covers in gray and white
• B2B Bullet Point 5 : Distributed neutral bars keeps wiring tidy
• Local Data Status : Publishable
• Local Publishable Date : 4/9/2025
• Manufacturing Carbon Footprint : 52.871406
• Distribution Carbon Footprint : 1.363605647
• Installation Carbon Footprint : 0.042771112
• Use Carbon Footprint : 0.087341
• End Of Life Carbon Footprint : 0.98745223
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 2531
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• H And D Enrichment Class 3 : Load centers (equipped)
• H And D Enrichment Class 4 : Single-phase convertible mains indoor load center
• Cover Type : combination flush/surface cover
• Electrical Connection : lugs
• Energy Efficiency Optimized : FALSE
• Load Center Type : PoN Convertible Mains (breaker)
• Number Of Spaces : 20
• Number Of Tandem Circuit Breakers : 20
• Package Weight Lbs : 10.247 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Load Center
• Range Of Product : Homeline
• Returnability : Yes
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 55 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 55.35257599
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2212003EN
• Pep Verification Date : 11/1/2021
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 10569
• Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1000mm x362mm x 95mm, that is certified for UL 67.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 0.126144
• Energy Model Manufacturing A1 A3 : Energy model used: Tlaxcala Mexico
• Energy Model Installation A5 : Electricity mix; AC; 120V; US
• Energy Model Use B6 : Electricity mix; AC; 120V; US
• Energy Model End Of Life C1 C4 : Electricity mix; AC; 120V; US
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.012028018
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.012027931
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 5.46E-08
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 1.6E-09
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 9E-10
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 2.93E-08
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 545.1968256
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 512.9496802
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 19.15821043
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.552789727
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 1.0634
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 11.47274522
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.002460333
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.00023127
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.002229062
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Hazardous Waste Disposed Of Kg Total Life Cycle : 960.095977
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 949.1635353
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 4.5418E-06
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.0023352
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 10.930102
• Materials For Energy Recovery Kg Total Life Cycle : 0.02294483
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0.02294483
• Materials For Recycling Kg Total Life Cycle : 10.64683167
• Materials For Recycling Kg Manufacturing A1 A3 : 1.051024666
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0.77620426
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 8.819602748
• Net Use Of Fresh Water M3 Total Life Cycle : 3.780653643
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 3.779226184
• Net Use Of Fresh Water M3 Distribution A4 : 0.000122042
• Net Use Of Fresh Water M3 Installation A5 : 5.1036E-06
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.00015436
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.001145954
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 66.15159298
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 66.03479513
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.048449722
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.01091954
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.013355
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.044073588
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 6.5401E-06
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 6.4761E-06
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 2.8E-09
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 1E-10
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 1.6E-09
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 5.95E-08
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.024867147
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.024762223
• Radioactive Waste Disposed Of Kg Distribution A4 : 3.45074E-05
• Radioactive Waste Disposed Of Kg Installation A5 : 1.3049E-06
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 1.3741E-06
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.000067738
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1039.946093
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1004.748157
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 19.25525247
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.556460161
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1.1052
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 14.28102292
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 1060.26054
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 1024.948745
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 19.28099831
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.55747019
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 1.1758
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 14.29752667
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 20.28290607
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 20.16956009
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.025695015
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.001009171
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.070616
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.016025799
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 16.74206177
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 16.74206177
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1023.2443
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 988.0463648
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 19.25525247
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.556460161
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1.1052
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 14.28102292
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 15.44420706
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 15.44420706
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 4.838831044
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 4.725485059
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.025695015
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.001009171
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.070616
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.016025799
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0.217215725
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.217215725
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Air Pollution M3 Total Life Cycle : 17489.31003
• Air Pollution M3 Manufacturing A1 A3 : 17321.01324
• Air Pollution M3 Distribution A4 : 58.00803242
• Air Pollution M3 Installation A5 : 1.749793342
• Air Pollution M3 Operational Energy Use B6 : 7.4172
• Air Pollution M3 End Of Life C1 C4 : 101.1217626
• Water Pollution M3 Total Life Cycle : 2827.624985
• Water Pollution M3 Manufacturing A1 A3 : 2483.021843
• Water Pollution M3 Distribution A4 : 224.2463217
• Water Pollution M3 Installation A5 : 6.466036302
• Water Pollution M3 Operational Energy Use B6 : 4.3059
• Water Pollution M3 End Of Life C1 C4 : 109.5848844
• Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.215959576
• Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.01836288
• Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.026157322
• Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.206626921
• Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.006226204
• Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.000178042
• Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.000083625
• Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.002844784
• Global Warming Kg Equivalent Co2 Total Life Cycle : 55.35257599
• Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 52.871406
• Global Warming Kg Equivalent Co2 Distribution A4 : 1.363605647
• Global Warming Kg Equivalent Co2 Installation A5 : 0.042771112
• Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 0.087341
• Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.98745223
• Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.017585073
• Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.000444307
• Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 1.33126E-05
• Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.000013395
• Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.000306792
• Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.023973344
• Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.001434044
• Water Eutrophication Kg Equivalent P04 3 Installation A5 : 4.51694E-05
• Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.000022038
• Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.000682727
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : Load Center
• Range Of Product : Homeline
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=423254380&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 55.35257599
• Environmental Disclosure : ENVPEP2212003EN
• EU ROHS Directive : Compliant
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2212003EN
• Pep Verification Date : 11/1/2021
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Specifications
• Country of Origin : United States
