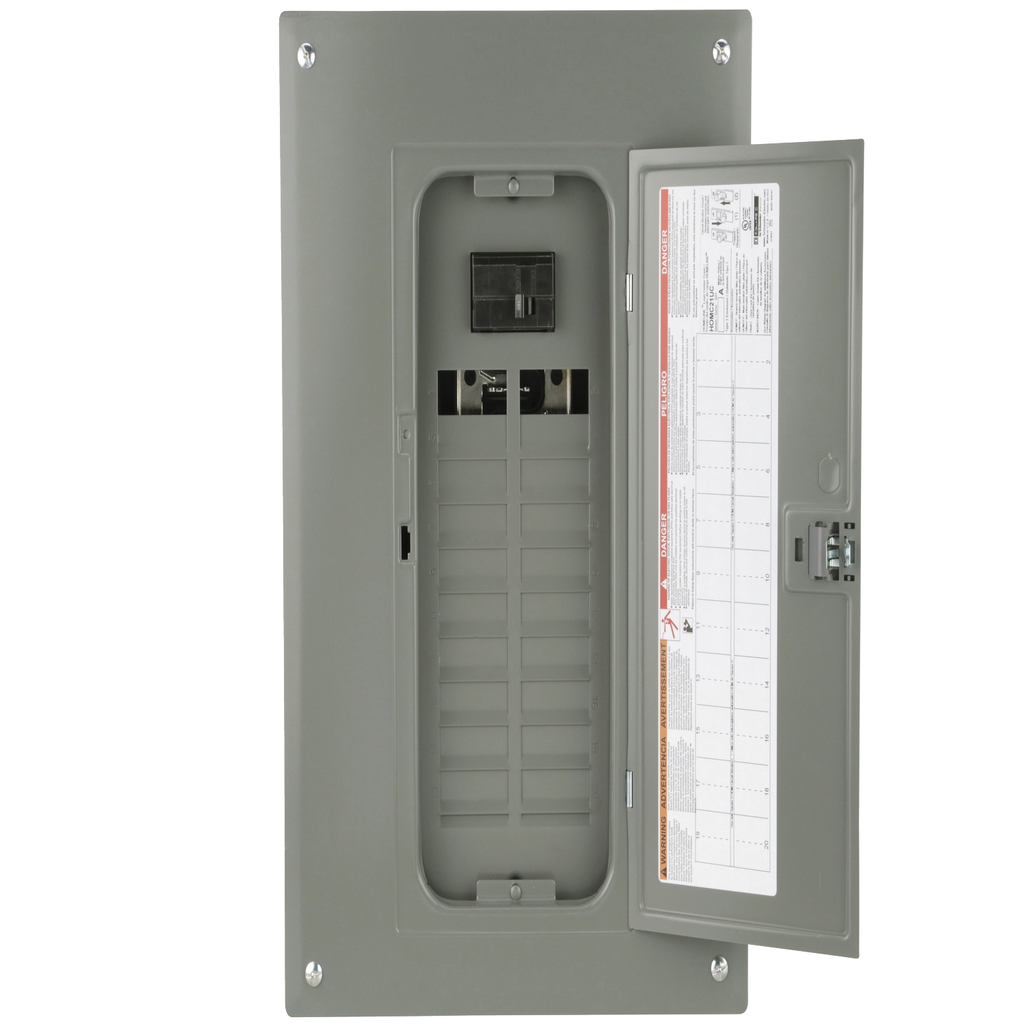

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 100A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 20 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 6 AWG to 1 AWG copper or aluminum wire. This Homeline load center has a height of 20.90 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.

• Features
• Fast installation, reliability, and superior circuit protection
• Protects against equipment overloads and short-circuits
• Tin and copper plated aluminum bus bars
• Replacement covers in gray and white
• Distributed neutral bars keeps wiring tidy
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Product Certifications : UL listed file E-6294
• Complementary Attributes
• Bus Rated Current : 125.0 A
• Line Rated Current : 100 A
• Important Information Attributes
• Persona Type Ids : EU, EUA, LC, OM, SC
• Persona Type Names : End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
• Carbon Footprint Of The Distribution Phase A4 : 3.176887945, 3 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.9 kg CO2 eq., 0.8780467458
• Carbon Footprint Of The Installation Phase A5 : 0.0380322561, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 47 kg CO2 eq., 47.0134803248
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0.1 kg CO2 eq., 0.087341
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Legacy WEEE Scope : In
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• H And D Enrichment Class 3 : Load centers (equipped)
• H And D Enrichment Class 4 : Single-phase convertible mains indoor load center
• AWG Gauge : AWG 6...AWG 1 aluminium/copper
• Cover Type : combination flush/surface cover
• Device Composition : grounding bar (ordered separately)
• Electrical Connection : lugs
• Enclosure Material : welded sheet steel
• Energy Efficiency Optimized : False
• Load Center Type : PoN Convertible Mains (breaker)
• Material : tin plated aluminium: busbar
• Package Weight Lbs : 9.730 kg
• Phase : 1 phase 3 wires
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Load Center
• Provided Equipment : circuit-breaker 1 ) 2P 100 A 120/240 V AC main supply ready assembled
• Range Of Product : Homeline
• Returnability : Yes
• Short Circuit Current : 22 kA
• Surface Finish : baked enamel Gray
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 51 kg CO2 eq.
• Ue Rated Operational Voltage2 : 120/240 V AC
• Medium Desc : Load center, Homeline, 1 phase, 20 spaces, 40 circuits, 100A convertible main breaker, PoN, NEMA1, combo cover
• Stocking Flag : Y
• Product Kit Identifier : N
• Pep Code : ENVPEP2212003EN
• Database Version : 2022-01
• Pep Verification Date : 2025-08-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1000mm x362mm x 95mm, that is certified for UL 67.
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Energy model used: Tlaxcala Mexico
• Energy Model Installation A5 2 : Electricity mix; AC; consumption mix, at consumer; 120V; US
• Energy Model Use B6 2 : Electricity mix; AC; consumption mix, at consumer; 120V; US
• Energy Model End Of Life C1 C4 2 : Electricity mix; AC; consumption mix, at consumer; 120V; US
• Global Commercial Status : Commercialised
• Ue Rated Operational Voltage5 : 120/240 V AC
• Environment Attributes Main
• Take Back : No, Nej
• China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Ambient Air Temperature For Operation : -5 °C, 40 °C
• EU ROHS Directive : Compliant , Compliant
• ROHS Exemption Information : Yes
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 51.1937882717
• Environmental Disclosure : ENVPEP2212003EN
• Nema Degree Of Protection : NEMA 1 indoor enclosure
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2212003EN
• Pep Verification Date : 2025-08-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Phase : 1 phase 3 wires
• Product Or Component Type : Load Center
• Provided Equipment : circuit-breaker 1 ) 2P 100 A 120/240 V AC main supply ready assembled
• Range Of Product : Homeline
• Specifications
• Depth : 95 mm
