Load center, Homeline, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA3R

LOADCENTER - BOX&INT

SQDHOM24L70RB HOM24L70RB 785901061175
68.35 / EACH
http://schema.org/OutOfStock
  • Certifications: UL Listed File E-6294
  • Depth: 102 mm
  • Enclosure Material: Steel
  • Height: 238 mm
  • Line Rated Current: 70 A
  • Material: Tin Plated Aluminium: Busbar
  • Number of Circuits: 4
  • Number of Phases: 1
  • Short Circuit Current: 10 kA
  • Warranty Length: Lifetime
  • Width: 124 mm

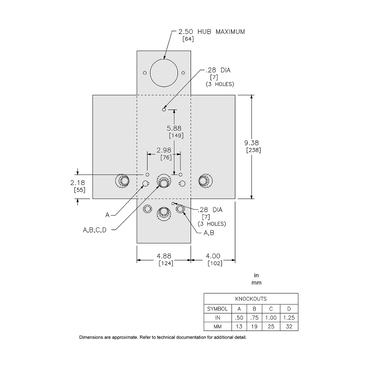

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with fixed main lugs that are rated at 70A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 2 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 14 AWG to 4 AWG copper or 12 AWG to 3 AWG aluminum wire. This Homeline load center has a height of 9.37 inches, a width of 4.88 inches, and depth of 4.01 inches. Homeline load centers are UL Listed.
QTY
  • Product Description
  • Specifications
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with fixed main lugs that are rated at 70A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 2 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 14 AWG to 4 AWG copper or 12 AWG to 3 AWG aluminum wire. This Homeline load center has a height of 9.37 inches, a width of 4.88 inches, and depth of 4.01 inches. Homeline load centers are UL Listed.
  • Environment
    • Product Certifications : UL listed file E-6294
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
  • Contractual warranty
    • Warranty : Lifetime
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1403002
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant
  • Complementary
    • Height : 238 mm
    • Phase : 1 phase
    • Short-Circuit Current : 10 kA
    • Number Of Tandem Circuit Breakers : 2
    • Material : tin plated aluminium: busbar
    • Surface Finish : baked enamel Gray
    • Enclosure Material : welded galvannealed steel
    • Awg Gauge : AWG 12...AWG 3 aluminium || AWG 14...AWG 4 copper
    • Width : 124 mm
    • Wiring Configuration : 3-wire
    • Depth : 102 mm
    • Device Composition : grounding bar (ordered separately)
    • Box Number : 1R
  • Specifications
    • Range Of Product : Homeline
    • Product Or Component Type : Load Center
    • Number Of Circuits : 4
    • Number Of Spaces : 2
    • Nema Degree Of Protection : NEMA 3R outdoor
    • Cover Type : surface cover
    • Line Rated Current : 70 A
    • Load Center Type : Fixed Mains (lugs)
