The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use o

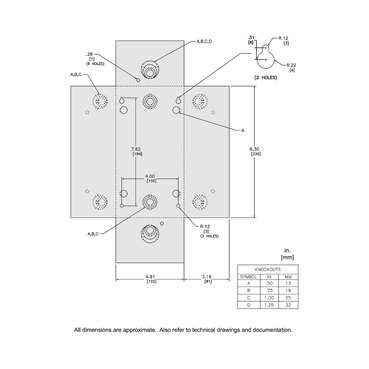

• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=3361&p_File_name=3361.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=3361&p_File_name=3361.dxf
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0067582324
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.2 kg CO2 eq.
• 0.1560266084
• Phase
• 1 phase 3 wires
• Material
• tin plated aluminium: busbar
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 8 kg CO2 eq.
• 8.3541723923
• Nema Degree Of Protection
• NEMA 1 indoor enclosure
• Accessories
• HOM1RKCP
• HOM4RK2LA
• Persona Type Names
• End User
• Contractor
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0.1 kg CO2 eq.
• 0.087341
• Persona Type Ids
• EU
• LC
• Carbon Footprint Of The Distribution Phase A4
• 0.215462336
• 0.2 kg CO2 eq.
• AWG Gauge
• AWG 12...AWG 3 aluminium
• AWG 14...AWG 4 copper
• UE Rated Operational Voltage
• 120/240 V AC
• Surface Finish
• baked enamel Gray

• Important Information Attributes
• B2B Bullet Point 1 : Fast installation, reliability, and superior circuit protection
• B2B Bullet Point 2 : Protects against equipment overloads and short-circuits
• B2B Bullet Point 3 : Tin and copper plated aluminum bus bars
• B2B Bullet Point 4 : Replacement covers in gray and white
• B2B Bullet Point 5 : Distributed neutral bars keeps wiring tidy
• Local Data Status : Publishable
• Local Publishable Date : 8/18/2025
• Manufacturing Carbon Footprint : 8.354172392
• Distribution Carbon Footprint : 0.215462336
• Installation Carbon Footprint : 0.006758232
• Use Carbon Footprint : 0.087341
• End Of Life Carbon Footprint : 0.156026608
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 2532
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• H And D Enrichment Class 3 : Load centers (equipped)
• H And D Enrichment Class 4 : Single-phase convertible mains indoor load center
• Cover Type : flush cover
• Electrical Connection : lugs
• Energy Efficiency Optimized : FALSE
• Load Center Type : Fixed Mains (lugs)
• Number Of Spaces : 2
• Number Of Tandem Circuit Breakers : 2
• Package Weight Lbs : 1.67 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Load Center
• Range Of Product : Homeline
• Returnability : Yes
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 9 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 8.819760569
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2212002
• Pep Verification Date : 11/1/2021
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 1670
• Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1000mm x362mm x 95mm, that is certified for UL 67.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 0.126144
• Energy Model Manufacturing A1 A3 : Energy model used: Tlaxcala Mexico
• Energy Model Installation A5 : Electricity mix; AC; 120V; US
• Energy Model Use B6 : Electricity mix; AC; 120V; US
• Energy Model End Of Life C1 C4 : Electricity mix; AC; 120V; US
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.001900539
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.001900525
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 8.6E-09
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 3E-10
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 9E-10
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 4.6E-09
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 87.04152666
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 81.05080575
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 3.027174891
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.087345903
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 1.0634
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 1.812800125
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.000388755
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 3.65429E-05
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.000352213
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Hazardous Waste Disposed Of Kg Total Life Cycle : 151.706033
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 149.9766396
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 7.176E-07
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.0023352
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 1.727057464
• Materials For Energy Recovery Kg Total Life Cycle : 0.003625496
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0.003625496
• Materials For Recycling Kg Total Life Cycle : 1.682298126
• Materials For Recycling Kg Manufacturing A1 A3 : 0.166071643
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0.12264747
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 1.393579013
• Net Use Of Fresh Water M3 Total Life Cycle : 0.597508301
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.59715278
• Net Use Of Fresh Water M3 Distribution A4 : 1.92838E-05
• Net Use Of Fresh Water M3 Installation A5 : 8.064E-07
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.00015436
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.000181071
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 10.46380986
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 10.43410993
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.007655505
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.001725389
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.013355
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.006964036
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 1.0347E-06
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 1.0233E-06
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 4E-10
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 1.6E-09
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 9.4E-09
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.003930397
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.003912661
• Radioactive Waste Disposed Of Kg Distribution A4 : 5.4525E-06
• Radioactive Waste Disposed Of Kg Installation A5 : 2.062E-07
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 1.3741E-06
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 1.07032E-05
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 165.2516936
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 158.7595253
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 3.042508432
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.087925865
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1.1052
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 2.256534041
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 168.5210091
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 161.9514054
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 3.046576515
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.088085459
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 1.1758
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 2.259141786
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3.264345248
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.186977514
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.004060051
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.000159458
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.070616
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.002532225
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.645400999
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.645400999
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 162.6126555
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 156.1204872
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 3.042508432
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.087925865
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1.1052
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 2.256534041
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.44032792
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.44032792
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.82403819
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.746670456
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.004060051
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.000159458
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.070616
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.002532225
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0.034322099
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.034322099
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Air Pollution M3 Total Life Cycle : 2769.718366
• Air Pollution M3 Manufacturing A1 A3 : 2736.8807
• Air Pollution M3 Distribution A4 : 9.165806996
• Air Pollution M3 Installation A5 : 0.276483573
• Air Pollution M3 Operational Energy Use B6 : 7.4172
• Air Pollution M3 End Of Life C1 C4 : 15.97817614
• Water Pollution M3 Total Life Cycle : 450.4164944
• Water Pollution M3 Manufacturing A1 A3 : 392.3404747
• Water Pollution M3 Distribution A4 : 35.43299813
• Water Pollution M3 Installation A5 : 1.021693691
• Water Pollution M3 Operational Energy Use B6 : 4.3059
• Water Pollution M3 End Of Life C1 C4 : 17.31542786
• Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.034194027
• Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.002912784
• Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.004151655
• Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.032648969
• Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.000983798
• Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 2.81324E-05
• Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.000083625
• Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.000449502
• Global Warming Kg Equivalent Co2 Total Life Cycle : 8.819760569
• Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 8.354172392
• Global Warming Kg Equivalent Co2 Distribution A4 : 0.215462336
• Global Warming Kg Equivalent Co2 Installation A5 : 0.006758232
• Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 0.087341
• Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.156026608
• Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.002778605
• Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 7.02047E-05
• Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 2.1035E-06
• Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.000013395
• Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 4.84759E-05
• Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.003788011
• Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.000226592
• Water Eutrophication Kg Equivalent P04 3 Installation A5 : 7.1372E-06
• Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.000022038
• Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.000107877
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : Load Center
• Range Of Product : Homeline
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=359021&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 8.819760569
• Environmental Disclosure : ENVPEP2212002
• EU ROHS Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2212002
• Pep Verification Date : 11/1/2021
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Contractual Warranty Attributes
• Warranty Period : Lifetime
• Warranty : Lifetime
• Specifications
• Country of Origin : Mexico
