SQUARE D

Load center, Homeline, 1 phase, 12 spaces, 24 circuits, 125A convertible main lugs, PoN, NEMA1, gnd bar, value pack

HOM VALPK INDR 125A MLO 12/24C

SQDHOM1224L125PGCVP HOM1224L125PGCVP 785901864288
81.63 / EACH
http://schema.org/OutOfStock

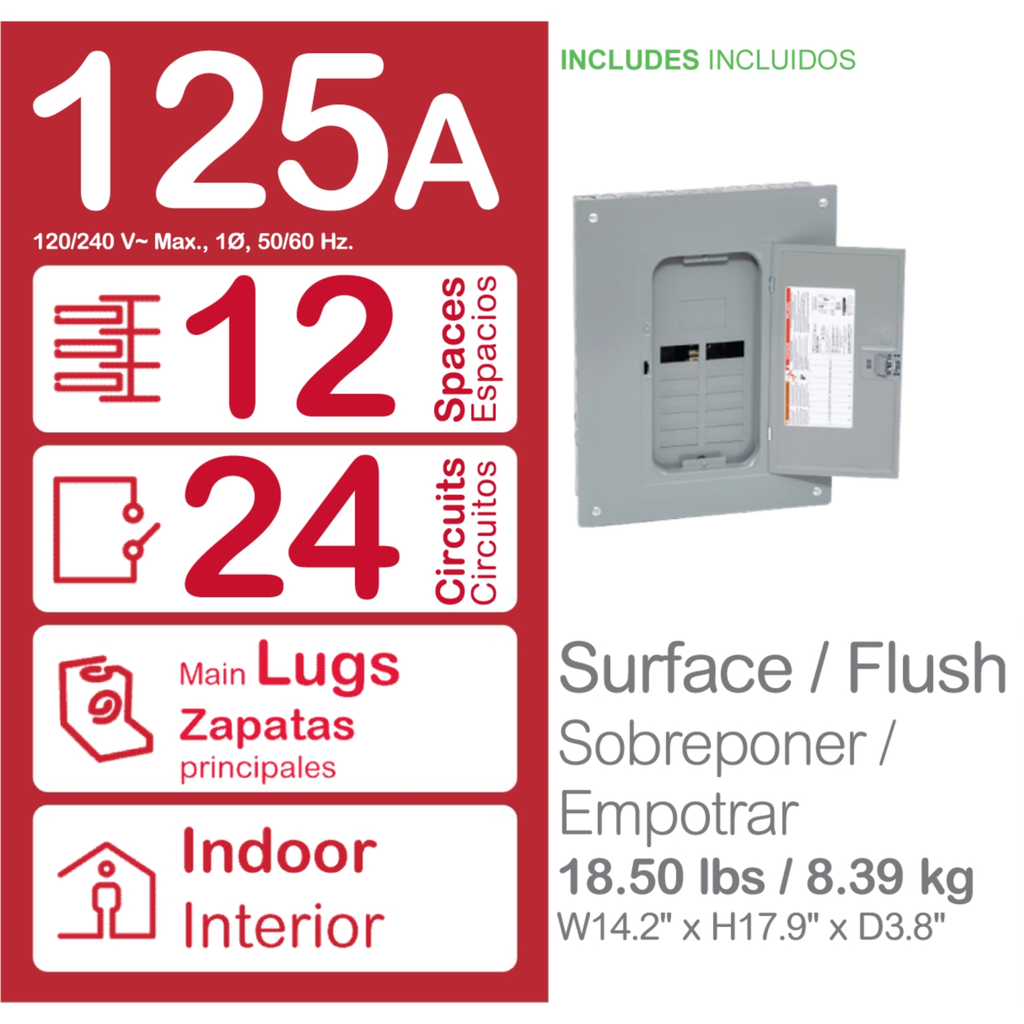

Mayer-DDS-Load center, Homeline, 1 phase, 12 spaces, 24 circuits, 125A convertible main lugs, PoN, NEMA1, gnd bar, value pack-2
  • Country of Origin: USA
  • Cover Type: Combination Flush/surface Cover
  • Depth: 95 mm
  • Enclosure Material: Steel
  • Height: 455 mm
  • Number of Circuits: 24
  • Number of Spaces: 12
  • Short Circuit Current Rating: 10 kA
  • Surface Finish: Baked Enamel Gray
  • Warranty Length: 18 mth
  • Width: 362 mm
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 125A 120/240 VAC single phase. Load center is supplied with a one pole 20A 120/240 VAC single phase circuit breaker. Load center has a grounding bar. Homeline load center provides a 10 kA breaking capacity. This system provides 12 spaces in a NEMA 1 indoor enclosure with a combination flush/surface cover. The electrical connections are box lugs. The box lugs will accept a wire range of 6 AWG to 1 AWG copper or 6 AWG to 2/0 AWG aluminum wire. This Homeline load center has a height of 17.92 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed. Load center is a value packed system.
QTY
  • Product Description
  • Features
  • Specifications
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 125A 120/240 VAC single phase. Load center is supplied with a one pole 20A 120/240 VAC single phase circuit breaker. Load center has a grounding bar. Homeline load center provides a 10 kA breaking capacity. This system provides 12 spaces in a NEMA 1 indoor enclosure with a combination flush/surface cover. The electrical connections are box lugs. The box lugs will accept a wire range of 6 AWG to 1 AWG copper or 6 AWG to 2/0 AWG aluminum wire. This Homeline load center has a height of 17.92 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed. Load center is a value packed system.
  • Prop 65
    • "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
  • Environment
    • Product Certifications : UL listed file E-6294
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1403002
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • California Proposition 65 : "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 43.1376465759
  • Complementary
    • Height : 455 mm
    • Phase : 1 phase 3 wires
    • [Ue] Rated Operational Voltage : 120/240 V AC
    • Bus Rated Current : 125.0 A
    • Short-Circuit Current : 10 kA
    • Number Of Tandem Circuit Breakers : 6
    • Material : tin plated aluminium: busbar
    • Surface Finish : baked enamel Gray
    • Enclosure Material : welded galvannealed steel
    • Awg Gauge : AWG 6...AWG 2/0 aluminium || AWG 6...AWG 1 copper
    • Width : 362 mm
    • Depth : 95 mm
    • Device Composition : grounding bar included (not installed)
    • Box Number : 6
  • Specifications
    • Country of Origin : United States
    • Width : 362 mm
    • Height : 455 mm
    • Range Of Product : Homeline
    • Provided Equipment : grounding bar 1 ) || circuit-breaker 2 ) 1P 20 A 120/240 V AC
    • Product Or Component Type : Load Center
    • Electrical Connection : lugs
    • Number Of Circuits : 24
    • Number Of Spaces : 12
    • Cover Type : combination flush/surface cover
    • Nema Degree Of Protection : NEMA 1 indoor enclosure
    • Line Rated Current : 125 A
    • Load Center Type : PoN Convertible Mains (lugs)
