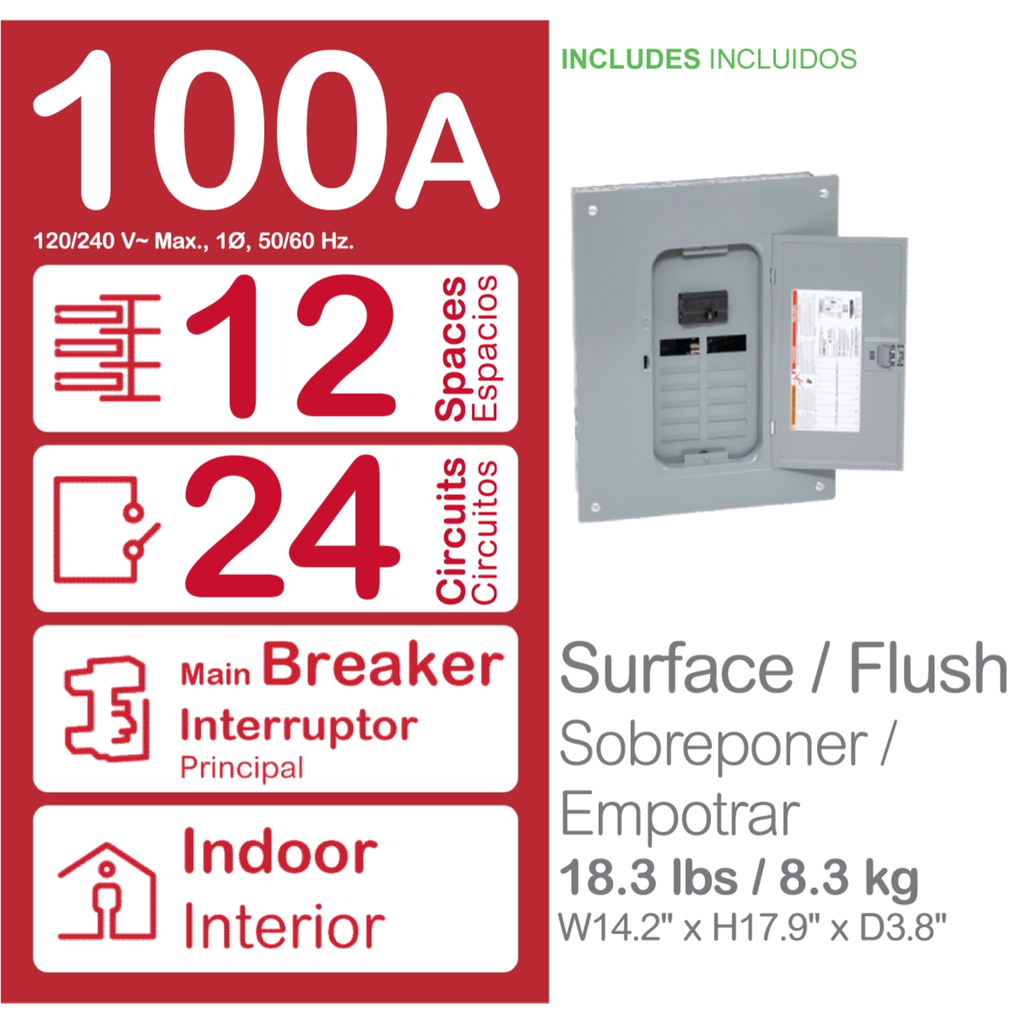

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use o

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0343253454
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.8 kg CO2 eq.
• 0.7924656839
• Provided Equipment
• circuit-breaker 1 ) 2P 100 A 120/240 V AC main supply ready assembled
• circuit-breaker 1 ) 2P 100 A 120/240 V AC ma
• Phase
• 1 phase 3 wires
• Material
• tin plated aluminium: busbar
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 42 kg CO2 eq.
• 42.4311917552
• Nema Degree Of Protection
• NEMA 1 indoor enclosure
• Accessories
• HOMCRBGK1C
• HOMFPCP
• Persona Type Names
• End User
• Consumer
• Contractor
• Original Equipment Manufacturer
• Electrician
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0.1 kg CO2 eq.
• 0.087341
• Persona Type Ids
• EU
• EUA
• LC
• OM
• SC
• Carbon Footprint Of The Distribution Phase A4
• 1.0943422361
• 1 kg CO2 eq.
• AWG Gauge
• AWG 6...AWG 2/0 aluminium/copper
• UE Rated Operational Voltage
• 120/240 V AC
• Surface Finish
• baked enamel Gray

• Complementary Attributes
• Bus Rated Current : 125.0 A
• Important Information Attributes
• B2B Bullet Point 1 : Fast installation, reliability, and superior circuit protection
• B2B Bullet Point 2 : Protects against equipment overloads and short-circuits
• B2B Bullet Point 3 : Tin and copper plated aluminum bus bars
• B2B Bullet Point 4 : Replacement covers in gray and white
• B2B Bullet Point 5 : Distributed neutral bars keeps wiring tidy
• Local Data Status : Publishable
• Local Publishable Date : 8/18/2025
• Manufacturing Carbon Footprint : 42.43119176
• Distribution Carbon Footprint : 1.094342236
• Installation Carbon Footprint : 0.034325345
• Use Carbon Footprint : 0.087341
• End Of Life Carbon Footprint : 0.792465684
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 2531
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• H And D Enrichment Class 3 : Load centers (equipped)
• H And D Enrichment Class 4 : Single-phase convertible mains indoor load center
• Cover Type : combination flush/surface cover
• Electrical Connection : lugs
• Load Center Type : PoN Convertible Mains (breaker)
• Number Of Spaces : 12
• Number Of Tandem Circuit Breakers : 12
• Package Weight Lbs : 8.355 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Load Center
• Range Of Product : Homeline
• Returnability : Yes
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 44 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 44.43966602
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2212003EN
• Pep Verification Date : 11/1/2021
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 8482
• Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1000mm x362mm x 95mm, that is certified for UL 67.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 0.126144
• Energy Model Manufacturing A1 A3 : Energy model used: Tlaxcala Mexico
• Energy Model Installation A5 : Electricity mix; AC; 120V; US
• Energy Model Use B6 : Electricity mix; AC; 120V; US
• Energy Model End Of Life C1 C4 : Electricity mix; AC; 120V; US
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.009652914
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.009652845
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 4.38E-08
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 1.3E-09
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 9E-10
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 2.35E-08
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 437.7499092
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 411.6604397
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 15.37514816
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.4436335
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 1.0634
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 9.20728782
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.001974505
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.000185603
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.001788902
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Hazardous Waste Disposed Of Kg Total Life Cycle : 770.5117751
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 761.737639
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 3.6449E-06
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.0023352
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 8.771797252
• Materials For Energy Recovery Kg Total Life Cycle : 0.018414046
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0.018414046
• Materials For Recycling Kg Total Life Cycle : 8.544462698
• Materials For Recycling Kg Manufacturing A1 A3 : 0.843484835
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0.622931643
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 7.078046221
• Net Use Of Fresh Water M3 Total Life Cycle : 3.034140066
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 3.032963998
• Net Use Of Fresh Water M3 Distribution A4 : 0.000097943
• Net Use Of Fresh Water M3 Installation A5 : 4.0958E-06
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.00015436
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.000919669
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 53.09165328
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 52.9952817
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.038882632
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.008763321
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.013355
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.035370629
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.000005249
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 5.1973E-06
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 2.2E-09
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 1E-10
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 1.6E-09
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 4.78E-08
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.019957045
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.019872568
• Radioactive Waste Disposed Of Kg Distribution A4 : 2.76934E-05
• Radioactive Waste Disposed Of Kg Installation A5 : 1.0472E-06
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 1.3741E-06
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 5.43621E-05
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 834.8121216
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 806.3462836
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 15.45302786
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.446579154
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1.1052
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 11.46103098
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 851.1291317
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 822.5579763
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 15.47368982
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.447389739
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 1.1758
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 11.47427583
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 16.29170072
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 16.18679238
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.020621167
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.000809896
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.070616
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.012861276
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 13.43610256
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 13.43610256
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 821.4083364
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 792.9424984
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 15.45302786
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.446579154
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1.1052
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 11.46103098
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 12.3945278
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 12.3945278
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3.897278883
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.792370543
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.020621167
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.000809896
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.070616
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.012861276
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0.174323378
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.174323378
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Air Pollution M3 Total Life Cycle : 14037.26061
• Air Pollution M3 Manufacturing A1 A3 : 13900.73179
• Air Pollution M3 Distribution A4 : 46.55351793
• Air Pollution M3 Installation A5 : 1.404271655
• Air Pollution M3 Operational Energy Use B6 : 7.4172
• Air Pollution M3 End Of Life C1 C4 : 81.15382636
• Water Pollution M3 Total Life Cycle : 2270.120308
• Water Pollution M3 Manufacturing A1 A3 : 1992.713716
• Water Pollution M3 Distribution A4 : 179.9656827
• Water Pollution M3 Installation A5 : 5.189225084
• Water Pollution M3 Operational Energy Use B6 : 4.3059
• Water Pollution M3 End Of Life C1 C4 : 87.94578389
• Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.173331786
• Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.014739512
• Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.020996537
• Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.165825484
• Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.004996751
• Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.000142885
• Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.000083625
• Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.002283041
• Global Warming Kg Equivalent Co2 Total Life Cycle : 44.43966602
• Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 42.43119176
• Global Warming Kg Equivalent Co2 Distribution A4 : 1.094342236
• Global Warming Kg Equivalent Co2 Installation A5 : 0.034325345
• Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 0.087341
• Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.792465684
• Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.014112649
• Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.000356573
• Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 1.06838E-05
• Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.000013395
• Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.000246211
• Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.019239465
• Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.001150871
• Water Eutrophication Kg Equivalent P04 3 Installation A5 : 3.62501E-05
• Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.000022038
• Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.000547913
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : Load Center
• Range Of Product : Homeline
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=423253621&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 44.43966602
• Environmental Disclosure : ENVPEP2212003EN
• EU ROHS Directive : Compliant
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2212003EN
• Pep Verification Date : 11/1/2021
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Specifications
• Country of Origin : United States
