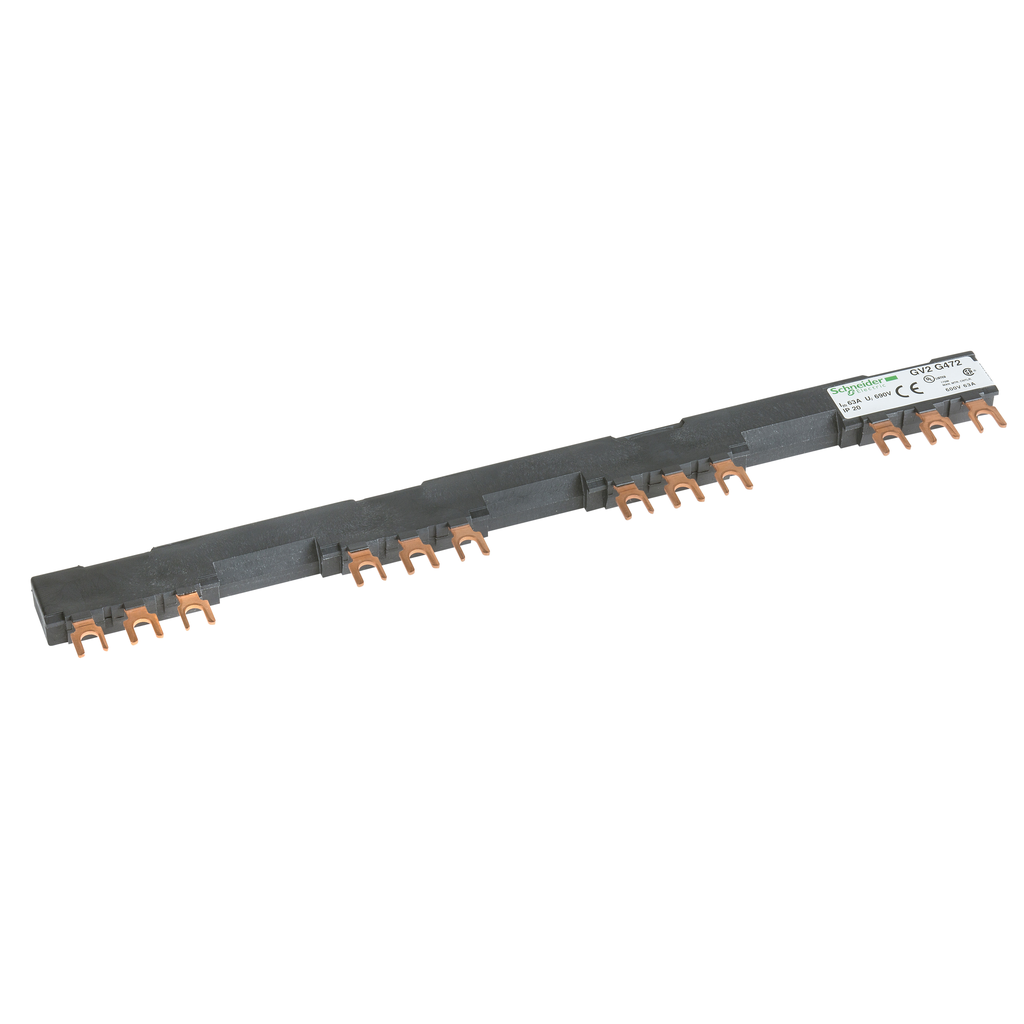

TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 4 tap-off outlets for the paralleling of 2 devices with a pitch of 72mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately). Green Premium compliant (RoHS/REACh).

• Offer Sustainability
• China Rohs Regulation : X
• Circularity Profile : ENVEOLI2207006
• Rohs Exemption Information : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2207006
• Sustainable Offer Status : Green Premium product
• Toxic Heavy Metal Free : Yes
• Eu Rohs Directive : Compliant
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc : Yes
• Specifications
• Length : 260 mm
• Weight : 0.094 kg
• Connection Pitch : 72 mm
• Poles Description : 3P
• Accessory / Separate Part Category : connection accessory
• Product Or Component Type : comb busbar
• Number Of Tap-Offs : 4
• Range Compatibility : TeSys D || TeSys GV2 || TeSys K || TeSys U
• [Ith] Conventional Free Air Thermal Current : 63 A
• Product Name : FT
• Device Short Name : GV2G
• Range : Linergy
• Complementary
• [Ui] Rated Insulation Voltage : 690 V
• Length : 260 mm
• Net Weight : 0.094 kg
• Mounting Location : on terminal
• Contractual warranty
• Warranty : 18 months
