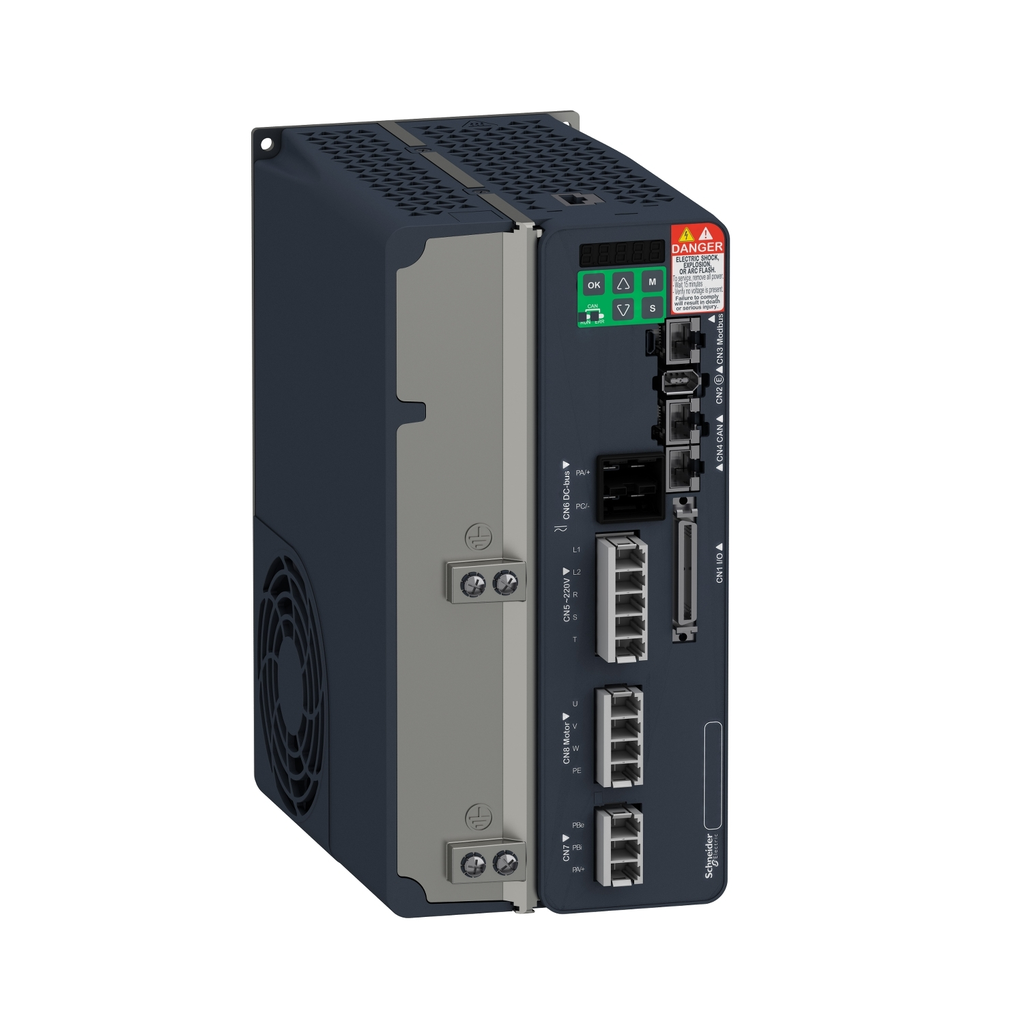

This product is part of the Lexium 28 range, an offer of servo drives from 0.05kW to 4.5kW and associated servo motors. This AC-servo drives Lexium 28 is designed for motion control, in combination with AC-servo motors BCH2, with a continuous power of 4500W at 220W. This servo drive has a digital and analog I/Os, an encoder interface for BCH2 servo motors, and embeds an Ethercat communication interface for being controlled. The Ethercat communication function provides access to this servo drive’s configuration, adjustment, control, and monitoring functions. This servo drive has a current line of 17.9A, an Harmonic distortion ratio of 147.1percent at 110V on 1-phase network. It has 8 programmable discrete inputs, 2 fast capture inputs, one safety function STO input, 5 logic outputs and 1 pulse train output. It measures 116mm wide, 234mm high, 186mm deep. It weighs 3.2kg. Servo motors BCH2 in combination with Lexium 28 servo drives are designed for application such as material working, material handling, assembly line, packaging. This servo drive is certified CULus, CSA, and marked CE. This servo drive is compatible with BCH2 motors with same input power, additional EMC filters, multi loader tool for configuration, and Ethernet/PTI/STO cables. It installed on panel with 2x holes of diameter 4.6mm. A vertical position (plus or minus 10degrees) is required for cooling the device. Lexium 28 servo drives & Lexium BCH2 servo motors are the Optimized servo bundles for compact machines. Lexium 28 & Lexium BCH2 are optimized bundles for easy integration into machines, embedding communication interfaces, safety functions and DC bus sharing.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Communication Interface : EtherCAT, Integrated, EtherCAT, Integrated
• Complementary Attributes
• US Rated Supply Voltage : 200...240 V - 10...15 %)three phase, 200...240 V - 10...15 %)three phase, 200...240 V - 10...15 %)three phase, 200...240 V - 20...15 %)single phase, 200...240 V - 20...15 %)single phase, 200...240 V - 20...15 %)single phase
• Maximum Current IRMS : 61.0 A
• Maximum In Rated Current : 22.8 A
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
• Connector Type : RJ45 CN4)EtherCAT, RJ45 CN4)EtherCAT, RJ45 CN4)EtherCAT
• Continuous Power : 4500 W 220 V, 4500 W 220 V
• Control Signal Type : servo motor encoder feedback CN2, servo motor encoder feedback CN2
• Electrical Connection : spring terminal 6 mm², AWG 10 L1-L2), spring terminal 6 mm², AWG 10 L1-L2), spring terminal 6 mm², AWG 10 L1-L2), spring terminal 6 mm², AWG 10 L1-L2), spring terminal 6 mm², AWG 10 R, S, T), spring terminal 6 mm², AWG 10 R, S, T), spring terminal 6 mm², AWG 10 R, S, T), spring terminal 6 mm², AWG 10 R, S, T), spring terminal 6 mm², AWG 10 U, V, W, PE), spring terminal 6 mm², AWG 10 U, V, W, PE), spring terminal 6 mm², AWG 10 U, V, W, PE), spring terminal 6 mm², AWG 10 U, V, W, PE), spring terminal 6 mm², AWG 10 PA/+, PBe), spring terminal 6 mm², AWG 10 PA/+, PBe), spring terminal 6 mm², AWG 10 PA/+, PBe), spring terminal 6 mm², AWG 10 PA/+, PBe)
• Electromagnetic Compatibility : conducted emission - test level: level 3 category C3 conforming to IEC 61800-3, conducted emission - test level: level 3 category C3 conforming to IEC 61800-3, conducted emission - test level: level 3 category C3 conforming to IEC 61800-3, conducted emission - test level: level 3 category C3 conforming to IEC 61800-3
• EMC Filter Compatibility : type 020, type 022
• Line Current : 17.9 A 147.1 % 220 V, three phase, 17.9 A 147.1 % 220 V, three phase, 17.9 A 147.1 % 220 V, three phase, 17.9 A 147.1 % 220 V, three phase
• Nominal Power : 4.5 kW 220 V 8 kHz, 4.5 kW 220 V 8 kHz, 4.5 kW 220 V 8 kHz
• Nominal Voltage : 220 V three phase, 220 V three phase
• Protection Type : against reverse polarity inputs signal, against reverse polarity inputs signal, against short-circuits outputs signal, against short-circuits outputs signal, overcurrent motor, overcurrent motor, overvoltage motor, overvoltage motor, undervoltage motor, undervoltage motor, overheating motor, overheating motor, overload motor, overload motor, overspeed motor, overspeed motor
• Safety Function : STO (safe torque off), Integrated, STO (safe torque off), Integrated
• Safety Level : SIL 2 IEC 61800-5-2 2007, SIL 2 IEC 61800-5-2 2007, SIL 2 IEC 61800-5-2 2007, SIL 2 IEC 61508-1 2010, SIL 2 IEC 61508-1 2010, SIL 2 IEC 61508-1 2010, PL d/category 3 ISO 13849-1 2008, PL d/category 3 ISO 13849-1 2008, PL d/category 3 ISO 13849-1 2008, SIL 2 ISO 13849-1 2009/AC, SIL 2 ISO 13849-1 2009/AC, SIL 2 ISO 13849-1 2009/AC, SIL 2 IEC 60204-1 2006, SIL 2 IEC 60204-1 2006, SIL 2 IEC 60204-1 2006, SIL 2 IEC 60204-1 2009/A1, SIL 2 IEC 60204-1 2009/A1, SIL 2 IEC 60204-1 2009/A1, SIL 2 IEC 60204-1 2010/AC, SIL 2 IEC 60204-1 2010/AC, SIL 2 IEC 60204-1 2010/AC, SIL 2 IEC 62061 2012, SIL 2 IEC 62061 2012, SIL 2 IEC 62061 2012
• Shock Resistance : 10 gn, type I IEC 60721-3-3, 10 gn, type I IEC 60721-3-3, 10 gn, type I IEC 60721-3-3
• Signalling Function : servo status and fault codes five 7-segment display units, servo status and fault codes five 7-segment display units
• Status Led : 1 LED (Red) DC bus energized, 1 LED (Red) DC bus energized, 1 LED (Red) DC bus energized, 1 LED (multi-colour) N.RUN, 1 LED (multi-colour) N.RUN, 1 LED (multi-colour) N.RUN, 1 LED (multi-colour) N.ERR, 1 LED (multi-colour) N.ERR, 1 LED (multi-colour) N.ERR, 2 LEDs (Yellow) Link (Link Status), 2 LEDs (Yellow) Link (Link Status), 2 LEDs (Yellow) Link (Link Status), 2 LEDs (Yellow) activity, 2 LEDs (Yellow) activity, 2 LEDs (Yellow) activity
• Supply Frequency : 50/60 Hz - 5...5 %, 50/60 Hz - 5...5 %
• Supply Voltage : 200-240 V three phase, 200-240 V three phase
• Supply Voltage Limits : 200-255 V three phase, 200-255 V three phase, 170-255 V single phase, 170-255 V single phase
• Transmission Rate : 100 Mbit/s EtherCAT, 100 Mbit/s EtherCAT
• Type Of Cable : shielded motor cable 0-55 °C) copper, shielded motor cable 0-55 °C) copper, shielded motor cable 0-55 °C) copper
• Vibration Resistance : 3M4 3 mm 9-200 Hz)IEC 60721-3-3, 3M4 3 mm 9-200 Hz)IEC 60721-3-3, 3M4 3 mm 9-200 Hz)IEC 60721-3-3, 3M4 3 mm 9-200 Hz)IEC 60721-3-3
• Carbon Footprint Of The Distribution Phase A4 : 0.5160810811, 0.5 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 2 kg CO2 eq., 1.8286486486
• Carbon Footprint Of The Installation Phase A5 : 0.0387459459, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 68 kg CO2 eq., 68.0351351351
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 9 218 kg CO2 eq., 9218.1241963174
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-25
• Device Type : Motion - drive & motor
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1409001EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 2 - SELECTED (Migration)
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Device Short Name : LXM28E
• Electrical Isolation : between power and control
• Field Weakening : false
• Format Of The Drive : compact housing
• Package Weight Lbs : 4 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : motion servo drive
• Range Of Product : Lexium 28
• Returnability : No
• Supply Voltage Description : three phase 220 V AC 50...60 Hz
• Sustainable Packaging : No
• Switching Frequency : 8 kHz
• Total Lifecycle Carbon Footprint : 9 289 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Maximum In Rated Current : 22.8 A
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1409001EN
• Pep Verification Date : 2020-11-01
• PCR Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : To control AC-servo motors BCH2 100% of the time for 10 years
• Functional Unit Unit : unité (unit)
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
• Operating Altitude : <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
• Product Compatibility : servo motor BCH2 180 mm, 3 4500 W, servo motor BCH2 180 mm, 3 4500 W, servo motor BCH2 180 mm, 3 4500 W, servo motor BCH2 180 mm, 3 4500 W, servo motor BCH2 180 mm, 3 4500 W, servo motor 180 mm, 2 3500 W, servo motor 180 mm, 2 3500 W, servo motor 180 mm, 2 3500 W, servo motor 180 mm, 2 3500 W
• Relative Humidity : 5-95 % without condensation, 5-95 % without condensation
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 9288.5428071282
• Circularity Profile : ENVEOLI1409001EN
• Environmental Disclosure : ENVPEP1409001EN
• IP Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1409001EN
• Pep Verification Date : 2020-11-01
• PCR Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : motion servo drive
• Range Of Product : Lexium 28
• Output Attributes
• Continuous Output Current : 22.9 A 8 kHz, 22.9 A 8 kHz
• Discrete Output Logic : positive or negative CN1), positive or negative CN1)
• Discrete Output Number : 5 logic output CN1)12...24 V DC, 5 logic output CN1)12...24 V DC, 5 logic output CN1)12...24 V DC, 5 logic output CN1)12...24 V DC, 5 logic output CN1)12...24 V DC, 1 pulse train output (PTO) CN1), 1 pulse train output (PTO) CN1), 1 pulse train output (PTO) CN1)
• Discrete Output Voltage : 12...24 V DC, 12...24 V DC
• Output Current 3s Peak : 61 A 220 V, 61 A 220 V
• Surge Protection And Filtering Attributes
• EMC Filter Compatibility : type 020, type 022
• Input Attributes
• Discrete Input Logic : positive or negative CN1), positive or negative CN1)
• Discrete Input Number : 8 programmable CN1), 8 programmable CN1), 8 programmable CN1), 2 fast capture CN1), 2 fast capture CN1), 2 fast capture CN1), 1 safety function STO CN9), 1 safety function STO CN9), 1 safety function STO CN9)
• Discrete Input Voltage : 24 V DC logic, 24 V DC logic, 24 V DC logic
