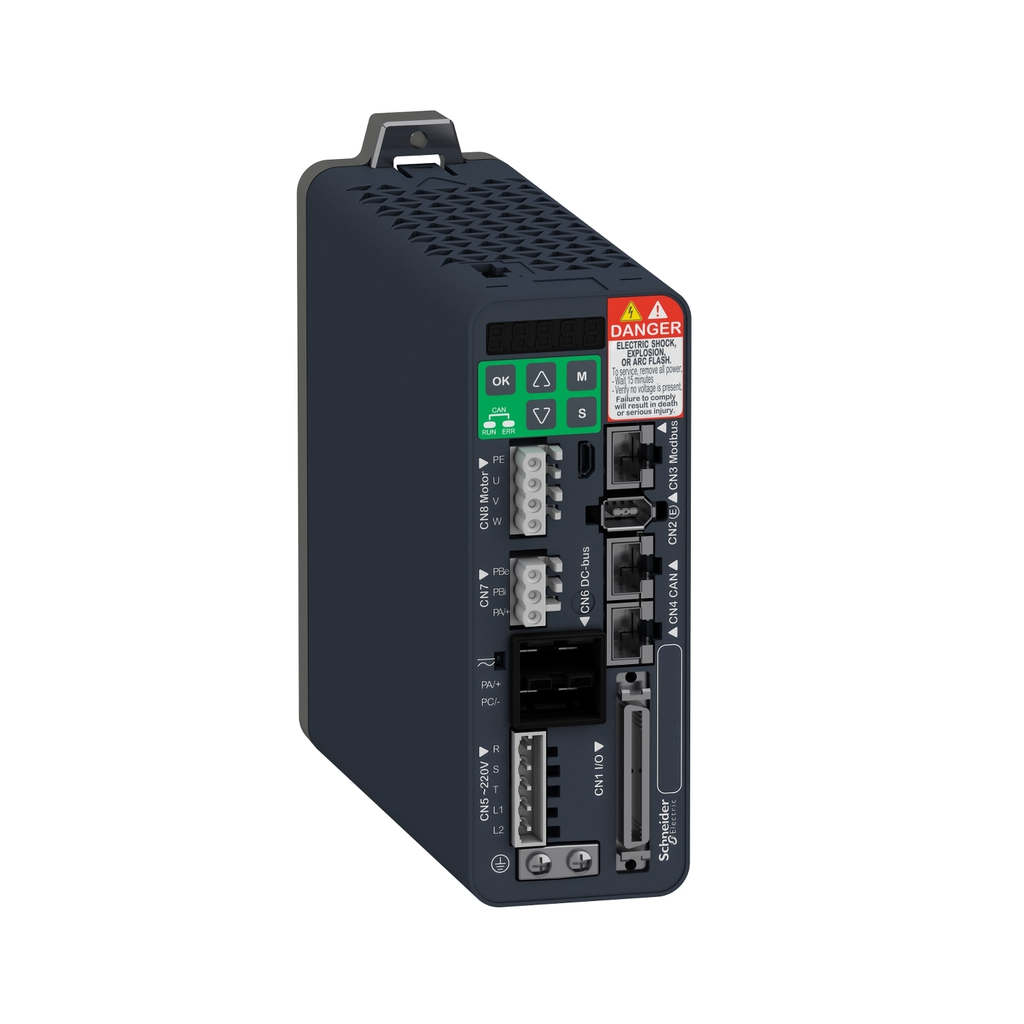

This product is part of the Lexium 28 range, an offer of servo drives from 0.05kW to 4.5kW. The motion servo drive features EMC filter, integrated EtherCAT interface 7-segment display with 5 buttons. It is a motion servo drive with a rated supply voltage of 220V (three phase/single phase), an output current of 7A, nominal power of 1kW and continuous power of 1000W. It is furnished with spring terminal electrical connection and RJ45 connectors (CN4) for EtherCAT. There is an electrical isolation between power and control. It offers EtherCAT communication interfaces and physical interface of RS485 for Modbus Serial line slave. It is an IP20 rated product. Its dimensions are 55mm (width) x 170mm (depth) x 150mm (height). It weighs 1.2kg. It is suitable for machine control solutions. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with servo motor BCH2 (130mm, 1 motor stack) at 1000W and servo motor (100mm, 1 motor stack) at 1000W. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Communication Interface : EtherCAT, Integrated, EtherCAT, Integrated
• Complementary Attributes
• US Rated Supply Voltage : 200...240 V - 10...15 %)three phase, 200...240 V - 10...15 %)three phase, 200...240 V - 10...15 %)three phase, 200...240 V - 20...15 %)single phase, 200...240 V - 20...15 %)single phase, 200...240 V - 20...15 %)single phase
• Maximum Current IRMS : 21.0 A
• Maximum In Rated Current : 7.0 A
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
• Connector Type : RJ45 CN4)EtherCAT, RJ45 CN4)EtherCAT, RJ45 CN4)EtherCAT
• Continuous Power : 1000 W 220 V, 1000 W 220 V
• Control Signal Type : servo motor encoder feedback CN2, servo motor encoder feedback CN2
• Electrical Connection : spring terminal 1.3...1.5 mm², AWG 16 L1-L2), spring terminal 1.3...1.5 mm², AWG 16 L1-L2), spring terminal 1.3...1.5 mm², AWG 16 L1-L2), spring terminal 1.3...1.5 mm², AWG 16 L1-L2), spring terminal 1.3...1.5 mm², AWG 16 R, S, T), spring terminal 1.3...1.5 mm², AWG 16 R, S, T), spring terminal 1.3...1.5 mm², AWG 16 R, S, T), spring terminal 1.3...1.5 mm², AWG 16 R, S, T), spring terminal 1.3...1.5 mm², AWG 16 U, V, W, PE), spring terminal 1.3...1.5 mm², AWG 16 U, V, W, PE), spring terminal 1.3...1.5 mm², AWG 16 U, V, W, PE), spring terminal 1.3...1.5 mm², AWG 16 U, V, W, PE), spring terminal 1.3...1.5 mm², AWG 16 PA/+, PBe), spring terminal 1.3...1.5 mm², AWG 16 PA/+, PBe), spring terminal 1.3...1.5 mm², AWG 16 PA/+, PBe), spring terminal 1.3...1.5 mm², AWG 16 PA/+, PBe)
• Electromagnetic Compatibility : conducted emission - test level: level 3 category C3 conforming to IEC 61800-3, conducted emission - test level: level 3 category C3 conforming to IEC 61800-3, conducted emission - test level: level 3 category C3 conforming to IEC 61800-3, conducted emission - test level: level 3 category C3 conforming to IEC 61800-3
• EMC Filter Compatibility : type 020, type 022
• Line Current : 8.5 A 176.3 % 220 V, single phase, 8.5 A 176.3 % 220 V, single phase, 8.5 A 176.3 % 220 V, single phase, 8.5 A 176.3 % 220 V, single phase, 8.5 A 155.5 % 220 V, three phase, 8.5 A 155.5 % 220 V, three phase, 8.5 A 155.5 % 220 V, three phase, 8.5 A 155.5 % 220 V, three phase
• Network Number Of Phases : 3, 1
• Nominal Power : 1 kW 220 V 16 kHz, 1 kW 220 V 16 kHz, 1 kW 220 V 16 kHz
• Nominal Voltage : 220 V single phase, 220 V single phase, 220 V three phase, 220 V three phase
• Protection Type : against reverse polarity inputs signal, against reverse polarity inputs signal, against short-circuits outputs signal, against short-circuits outputs signal, overcurrent motor, overcurrent motor, overvoltage motor, overvoltage motor, undervoltage motor, undervoltage motor, overheating motor, overheating motor, overload motor, overload motor, overspeed motor, overspeed motor
• Safety Function : STO (safe torque off), Integrated, STO (safe torque off), Integrated
• Safety Level : SIL 2 IEC 61800-5-2 2007, SIL 2 IEC 61800-5-2 2007, SIL 2 IEC 61800-5-2 2007, SIL 2 IEC 61508-1 2010, SIL 2 IEC 61508-1 2010, SIL 2 IEC 61508-1 2010, PL d/category 3 ISO 13849-1 2008, PL d/category 3 ISO 13849-1 2008, PL d/category 3 ISO 13849-1 2008, SIL 2 ISO 13849-1 2009/AC, SIL 2 ISO 13849-1 2009/AC, SIL 2 ISO 13849-1 2009/AC, SIL 2 IEC 60204-1 2006, SIL 2 IEC 60204-1 2006, SIL 2 IEC 60204-1 2006, SIL 2 IEC 60204-1 2009/A1, SIL 2 IEC 60204-1 2009/A1, SIL 2 IEC 60204-1 2009/A1, SIL 2 IEC 60204-1 2010/AC, SIL 2 IEC 60204-1 2010/AC, SIL 2 IEC 60204-1 2010/AC, SIL 2 IEC 62061 2012, SIL 2 IEC 62061 2012, SIL 2 IEC 62061 2012
• Shock Resistance : 10 gn, type I IEC 60721-3-3, 10 gn, type I IEC 60721-3-3, 10 gn, type I IEC 60721-3-3
• Signalling Function : servo status and fault codes five 7-segment display units, servo status and fault codes five 7-segment display units
• Status Led : 1 LED (Red) DC bus energized, 1 LED (Red) DC bus energized, 1 LED (Red) DC bus energized, 1 LED (multi-colour) N.RUN, 1 LED (multi-colour) N.RUN, 1 LED (multi-colour) N.RUN, 1 LED (multi-colour) N.ERR, 1 LED (multi-colour) N.ERR, 1 LED (multi-colour) N.ERR, 2 LEDs (Green) Link (Link Status), 2 LEDs (Green) Link (Link Status), 2 LEDs (Green) Link (Link Status), 2 LEDs (Yellow) activity, 2 LEDs (Yellow) activity, 2 LEDs (Yellow) activity
• Supply Frequency : 50/60 Hz - 5...5 %, 50/60 Hz - 5...5 %
• Supply Voltage : 200-240 V single phase, 200-240 V single phase, 200-240 V three phase, 200-240 V three phase
• Supply Voltage Description : single phase 220 V AC 50...60 Hz, three phase 220 V AC 50...60 Hz
• Supply Voltage Limits : 200-255 V three phase, 200-255 V three phase, 170-255 V single phase, 170-255 V single phase
• Transmission Rate : 100 Mbit/s EtherCAT, 100 Mbit/s EtherCAT
• Type Of Cable : shielded motor cable 0-55 °C) copper, shielded motor cable 0-55 °C) copper, shielded motor cable 0-55 °C) copper
• Vibration Resistance : 3M4 3 mm 9-200 Hz)IEC 60721-3-3, 3M4 3 mm 9-200 Hz)IEC 60721-3-3, 3M4 3 mm 9-200 Hz)IEC 60721-3-3, 3M4 3 mm 9-200 Hz)IEC 60721-3-3
• Carbon Footprint Of The Distribution Phase A4 : 0.1844989865, 0.2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.7 kg CO2 eq., 0.6537418919
• Carbon Footprint Of The Installation Phase A5 : 0.0138516757, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 24 kg CO2 eq., 24.3225608108
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 2 565 kg CO2 eq., 2564.7197998429
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-25
• Device Type : Motion - drive & motor
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1409001EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Device Short Name : LXM28E
• Electrical Isolation : between power and control
• Field Weakening : false
• Format Of The Drive : compact housing
• Package Weight Lbs : 1.518 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : motion servo drive
• Range Of Product : Lexium 28
• Returnability : No
• Sustainable Packaging : No
• Switching Frequency : 16 kHz
• Total Lifecycle Carbon Footprint : 2 590 kg CO2 eq.
• Maximum In Rated Current : 7.0 A
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1409001EN
• Pep Verification Date : 2020-11-01
• PCR Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : To control AC-servo motors BCH2 100% of the time for 10 years
• Functional Unit Unit : unité (unit)
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
• Operating Altitude : <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
• Product Compatibility : servo motor BCH2 130 mm, 1 1000 W, servo motor BCH2 130 mm, 1 1000 W, servo motor BCH2 130 mm, 1 1000 W, servo motor BCH2 130 mm, 1 1000 W, servo motor BCH2 130 mm, 1 1000 W, servo motor 100 mm, 1 1000 W, servo motor 100 mm, 1 1000 W, servo motor 100 mm, 1 1000 W, servo motor 100 mm, 1 1000 W, servo motor 130 mm, 2 900 W, servo motor 130 mm, 2 900 W, servo motor 130 mm, 2 900 W, servo motor 130 mm, 2 900 W, servo motor 130 mm, 4 850 W, servo motor 130 mm, 4 850 W, servo motor 130 mm, 4 850 W, servo motor 130 mm, 4 850 W
• Relative Humidity : 5-95 % without condensation, 5-95 % without condensation
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 2589.8944532077
• Circularity Profile : ENVEOLI1409001EN
• Environmental Disclosure : ENVPEP1409001EN
• IP Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1409001EN
• Pep Verification Date : 2020-11-01
• PCR Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : motion servo drive
• Range Of Product : Lexium 28
• Output Attributes
• Continuous Output Current : 7 A 16 kHz, 7 A 16 kHz
• Discrete Output Logic : positive or negative CN1), positive or negative CN1)
• Discrete Output Number : 5 logic output CN1)12...24 V DC, 5 logic output CN1)12...24 V DC, 5 logic output CN1)12...24 V DC, 5 logic output CN1)12...24 V DC, 5 logic output CN1)12...24 V DC, 1 pulse train output (PTO) CN1), 1 pulse train output (PTO) CN1), 1 pulse train output (PTO) CN1)
• Discrete Output Voltage : 12...24 V DC, 12...24 V DC
• Output Current 3s Peak : 21 A 220 V, 21 A 220 V
• Surge Protection And Filtering Attributes
• EMC Filter Compatibility : type 020, type 022
• Input Attributes
• Discrete Input Logic : positive or negative CN1), positive or negative CN1)
• Discrete Input Number : 8 programmable CN1), 8 programmable CN1), 8 programmable CN1), 2 fast capture CN1), 2 fast capture CN1), 2 fast capture CN1), 1 safety function STO CN9), 1 safety function STO CN9), 1 safety function STO CN9)
• Discrete Input Voltage : 24 V DC logic, 24 V DC logic, 24 V DC logic
