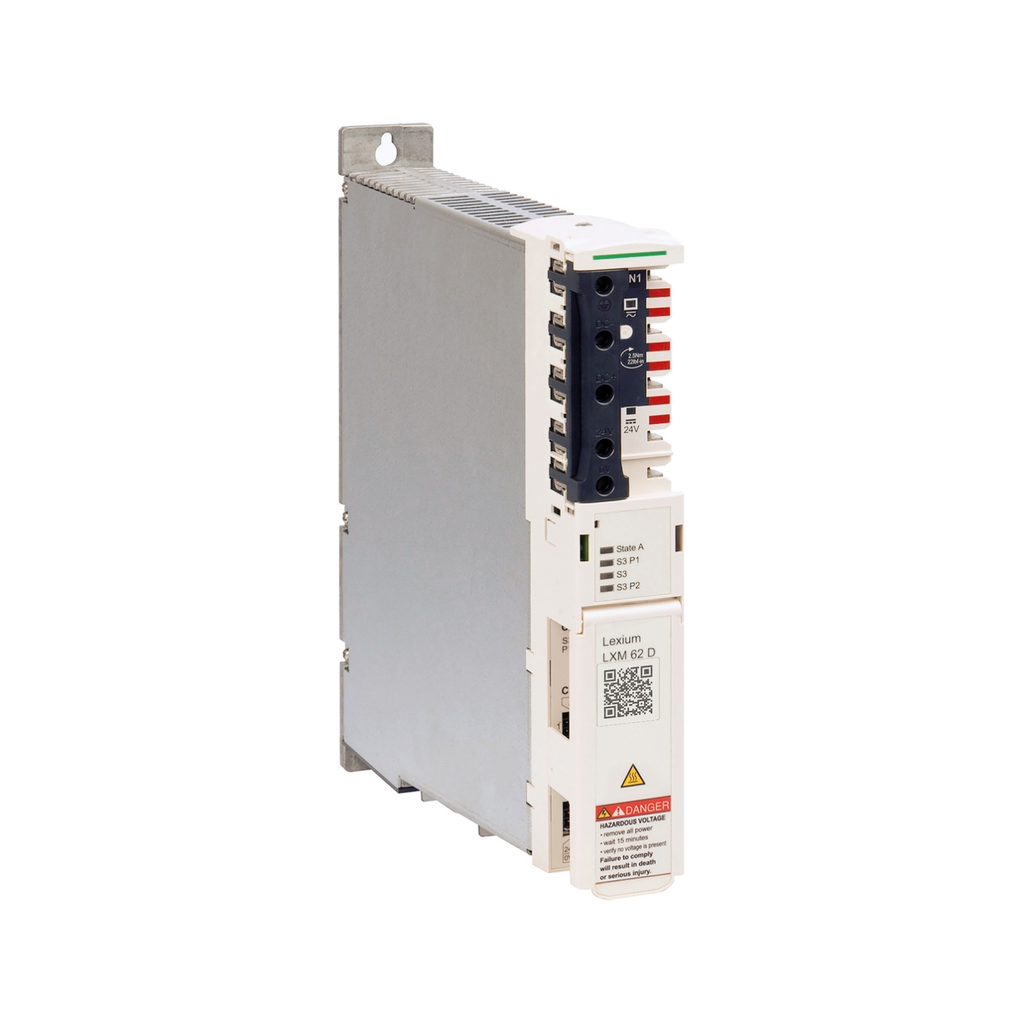

This product is part of the Lexium 62 & Motors range, an offer of servo drives. The single drive features SERCOS III physical interface. It offers 2 digital/2 touch probe inputs and 2 digital outputs. It is a single drive with a rated supply voltage of 24VDC, a continuous output current of 2A at 4kHz and a continuous power of 0.95kW. It is furnished with connectors for electrical connection. It is an IP20 rated product. It weighs 3kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE, CSA, EAC, TUV and UL. It meets CSA C22.2 No 14, EN/ISO 13849-2, UL 508C, IEC 62061, EN 61800-5-2 and EN/ISO 13849-1 standards. This product is compatible with servo motor SH3 (55mm, 1 motor stack), servo motor SH3 (55mm, 2 motor stacks) and servo motor SH3 (55mm, 3 motor stacks). It includes accessory kit. Lexium 62 multi-axis servo systems can be controlled with all PacDrive 3 LMC motion controllers of the Pro/Pro2 and Eco series via SERCOS communication. Multi axis servo drives and servo motors from 0.95kW to 24kW for PacDrive based automation solutions.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Communication Interface : SERCOS III, Integrated, SERCOS III, Integrated
• Complementary Attributes
• US Rated Supply Voltage : 400 V - 10...10 %)three phase, 400 V - 10...10 %)three phase, 400 V - 10...10 %)three phase, 230 V - 10...10 %)three phase, 230 V - 10...10 %)three phase, 230 V - 10...10 %)three phase, 230 V - 10...10 %)single phase, 230 V - 10...10 %)single phase, 230 V - 10...10 %)single phase
• Maximum Ambient Air Temperature For Operation : 55.0 °C
• Maximum Current IRMS : 6.0 A
• Maximum Operational Altitude : 3000.0 m
• Minimum Ambient Air Temperature For Operation : 5.0 °C
• Maximum In Rated Current : 1.2 A
• Important Information Attributes
• Persona Type Ids : EU, OM
• Persona Type Names : End User, Original Equipment Manufacturer
• Electrical Connection : terminal 0.2...15 mm², AWG 24...AWG 16 CN4), terminal 0.2...15 mm², AWG 24...AWG 16 CN4), terminal 0.2...15 mm², AWG 24...AWG 16 CN4), terminal 0.2...15 mm², AWG 24...AWG 16 CN4), terminal 0.5...16 mm², AWG 20...AWG 6 CN5), terminal 0.5...16 mm², AWG 20...AWG 6 CN5), terminal 0.5...16 mm², AWG 20...AWG 6 CN5), terminal 0.5...16 mm², AWG 20...AWG 6 CN5), terminal 0.75...16 mm², AWG 18...AWG 6 CN6), terminal 0.75...16 mm², AWG 18...AWG 6 CN6), terminal 0.75...16 mm², AWG 18...AWG 6 CN6), terminal 0.75...16 mm², AWG 18...AWG 6 CN6), terminal 0.2...6 mm², AWG 24...AWG 10 CN7), terminal 0.2...6 mm², AWG 24...AWG 10 CN7), terminal 0.2...6 mm², AWG 24...AWG 10 CN7), terminal 0.2...6 mm², AWG 24...AWG 10 CN7)
• Environmental Characteristic : 3K3 conforming to IEC 60721-3-3, 3K3 conforming to IEC 60721-3-3
• Nominal Voltage : 230 V three phase, 230 V three phase, 400 V three phase, 400 V three phase
• Shock Resistance : 100 m/s² IEC 60721-3-3, 100 m/s² IEC 60721-3-3
• Supply Frequency : 50/60 Hz - 5...5 %, 50/60 Hz - 5...5 %
• Supply Voltage : 208-360 V three phase, 208-360 V three phase, 380-480 V three phase, 380-480 V three phase
• Tightening Torque : CN1 2.5-2.5 N.m, CN1 2.5-2.5 N.m
• Vibration Resistance : 10 m/s² conforming to IEC 60721-3-3, 10 m/s² conforming to IEC 60721-3-3
• Carbon Footprint Of The Distribution Phase A4 : 0.2782740173207116, 0.3 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 6 kg CO2 eq., 6.33138154147887
• Carbon Footprint Of The Installation Phase A5 : 1.606620261151621, 2 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 566 kg CO2 eq., 566.0842979632071
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 4 042 kg CO2 eq., 4041.938244045323
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-25
• Device Type : Motion - drive & motor
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1406012EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Component Name : LXM62
• Derating Altitude Scale : 80.0 m
• Derating Altitude Start : 1000.0 m
• Derating Temperature Scale : 66.66666667 °C
• Derating Temperature Start : 40.0 °C
• Device Short Name : LXM 62
• Maximum Operational Altitude : 3000.0 m
• Minimum Ambient Air Temperature For Operation : 5.0 °C
• Nominal Power : 0.95 kW
• Package Weight Lbs : 3.840 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : single drive
• Range Of Product : PacDrive 3
• Returnability : Yes
• Safety Function : STO (safe torque off)
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 4 616 kg CO2 eq.
• Maximum In Rated Current : 1.2 A
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1406012EN
• Pep Verification Date : 2025-08-28
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3-EN-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : To monitor the position of a servo motor with 80% use rate at 119 W in industrial environment during 10 years.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP20 IEC 60529, IP20 IEC 60529
• Product Compatibility : servo motor SHS, servo motor SHS, servo motor SH3 55 mm, 1 optimized in terms of torque and speed, servo motor SH3 55 mm, 1 optimized in terms of torque and speed, servo motor SH3 55 mm, 1 optimized in terms of torque and speed, servo motor SH3 55 mm, 1 optimized in terms of torque and speed, servo motor SH3 55 mm, 1 optimized in terms of torque and speed, servo motor SH3 55 mm, 2 optimized in terms of torque and speed, servo motor SH3 55 mm, 2 optimized in terms of torque and speed, servo motor SH3 55 mm, 2 optimized in terms of torque and speed, servo motor SH3 55 mm, 2 optimized in terms of torque and speed, servo motor SH3 55 mm, 2 optimized in terms of torque and speed, servo motor SH3 55 mm, 3 optimized in terms of torque and speed, servo motor SH3 55 mm, 3 optimized in terms of torque and speed, servo motor SH3 55 mm, 3 optimized in terms of torque and speed, servo motor SH3 55 mm, 3 optimized in terms of torque and speed, servo motor SH3 55 mm, 3 optimized in terms of torque and speed, servo motor SH3 70 mm, 1 optimized in terms of torque and speed, servo motor SH3 70 mm, 1 optimized in terms of torque and speed, servo motor SH3 70 mm, 1 optimized in terms of torque and speed, servo motor SH3 70 mm, 1 optimized in terms of torque and speed, servo motor SH3 70 mm, 1 optimized in terms of torque and speed, servo motor SH3 70 mm, 2 optimized in terms of high torque, servo motor SH3 70 mm, 2 optimized in terms of high torque, servo motor SH3 70 mm, 2 optimized in terms of high torque, servo motor SH3 70 mm, 2 optimized in terms of high torque, servo motor SH3 70 mm, 2 optimized in terms of high torque, servo motor SH3 70 mm, 3 optimized in terms of high torque, servo motor SH3 70 mm, 3 optimized in terms of high torque, servo motor SH3 70 mm, 3 optimized in terms of high torque, servo motor SH3 70 mm, 3 optimized in terms of high torque, servo motor SH3 70 mm, 3 optimized in terms of high torque, servo motor SH3 100 mm, 1 optimized in terms of high torque, servo motor SH3 100 mm, 1 optimized in terms of high torque, servo motor SH3 100 mm, 1 optimized in terms of high torque, servo motor SH3 100 mm, 1 optimized in terms of high torque, servo motor SH3 100 mm, 1 optimized in terms of high torque, servo motor MH3 70 mm, 1 optimized in terms of torque and speed, servo motor MH3 70 mm, 1 optimized in terms of torque and speed, servo motor MH3 70 mm, 1 optimized in terms of torque and speed, servo motor MH3 70 mm, 1 optimized in terms of torque and speed, servo motor MH3 70 mm, 1 optimized in terms of torque and speed
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 4616.238817828481
• Circularity Profile : ENVEOLI1406012EN
• Environmental Disclosure : ENVPEP1406012EN
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Pep Code : ENVPEP1406012EN
• Pep Verification Date : 2025-08-28
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3-EN-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : single drive
• Range Of Product : PacDrive 3
• Output Attributes
• Continuous Output Current : 2 A 4 kHz, 2 A 4 kHz
• Discrete Output Voltage : 24 V DC, 24 V DC
• Number Of Outputs : 2 digital, 2 digital
• Output Current 3s Peak : 6 A 4 kHz, 6 A 4 kHz
• Input Attributes
• Discrete Input Voltage : 24 V DC for - 20...25 %, 24 V DC for - 20...25 %, 24 V DC for - 20...25 %
• Number Of Inputs : 2 digital, 2 digital, 2 touch probe, 2 touch probe
