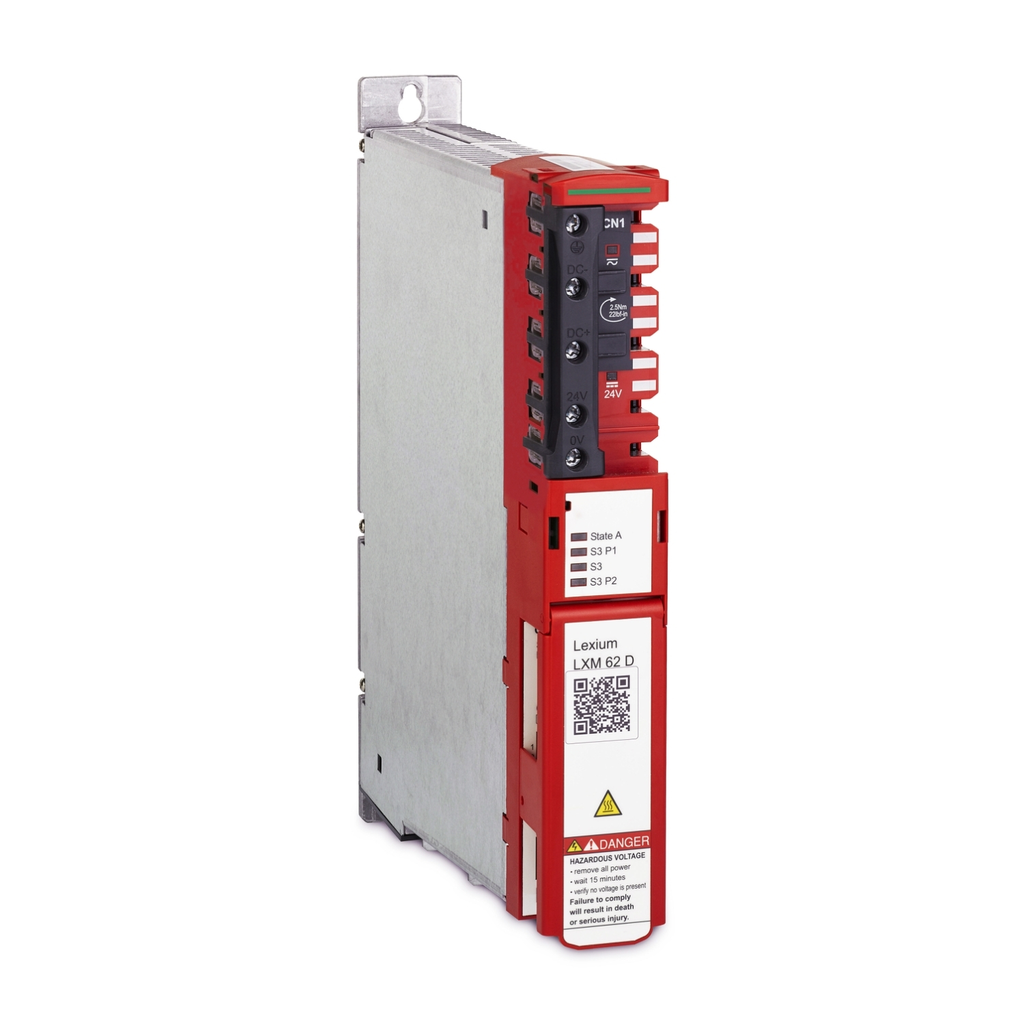

This product is part of the Lexium 62 & Motors range, an offer of servo drives. The single drive features SERCOS III physical interface. It offers 2 digital/2 touch probe inputs and 2 digital outputs. It is a single drive with a rated supply voltage of 24VDC, a continuous output current of 20A at 4kHz and a continuous power of 9.6kW. It is furnished with connectors for electrical connection. It is an IP20 rated product. It weighs 3kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE, CSA, EAC, TUV and UL. It meets UL 508C, EN/ISO 13849-2, CSA C22.2 No 14, EN 62061, EN 61800-3, IEC 61508 and EN 61800-5-1 standards. This product is compatible with servo motor SH3 (140mm, 4 motor stacks), servo motor SH3 (205mm, 1 motor stack) and servo motor MH3 (140mm, 2 motor stacks). It includes accessory kit. Lexium 62 multi-axis servo systems can be controlled with all PacDrive 3 LMC motion controllers of the Pro/Pro2 and Eco series via SERCOS communication. Multi axis servo drives and servo motors from 0.95kW to 24kW for PacDrive based automation solutions.

• Features
• Universal, compact servo drives for multiaxis solutions
• Modular design
• Safety input inverter enable
• Safe drives with advanced safety functionality
• Easy installation, commissioning and maintenance
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Communication Interface : SERCOS III, Integrated
• Conformance Attributes
• Product Certifications : TÜV, CE, UL, CSA, EAC
• Standards : UL 508C, ISO 13849-2, CSA C22.2 No 14, IEC 62061, IEC 61800-3, IEC 61508, IEC 61800-5-1, IEC 61800-5-2, ISO 13849-1
• Complementary Attributes
• Line Rated Current : 20.0 A
• Maximum Ambient Air Temperature For Operation : 55.0 °C
• Maximum Current IRMS : 45.0 A
• Maximum Operational Altitude : 3000.0 m
• Minimum Ambient Air Temperature For Operation : 5.0 °C
• Important Information Attributes
• Persona Type Ids : EU, OM
• Persona Type Names : End User, Original Equipment Manufacturer
• Electrical Connection : terminal 0.2...15 mm², AWG 24...AWG 16 CN4), terminal 0.5...16 mm², AWG 20...AWG 6 CN5), terminal 0.75...16 mm², AWG 18...AWG 6 CN6), terminal 0.2...6 mm², AWG 24...AWG 10 CN7)
• Nominal Voltage : 230 V three phase, 400 V three phase
• Safety Function : STO (safe torque off), SS1 (safe stop 1), SS2 (safe stop 2), SOS (safe operating stop), SMS (safe maximum speed), SLS (safe limited speed), SDI (safe direction indication)
• Supply Voltage : 208-360 V three phase, 380-480 V three phase
• Us Rated Supply Voltage2 : 400 V - 10...10 %)three phase, 230 V - 10...10 %)three phase, 230 V - 10...10 %)single phase, 230 V
• Carbon Footprint Of The Distribution Phase A4 : 0.28334672076145373, 0.3 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 6 kg CO2 eq., 6.446797350828745
• Carbon Footprint Of The Installation Phase A5 : 1.6359076096621974, 2 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 576 kg CO2 eq., 576.4035429781613
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 4 042 kg CO2 eq., 4041.938244045323
• Us Rated Supply Voltage5 : 400 V - 10...10 %)three phase, 230 V - 10...10 %)three phase, 230 V - 10...10 %)single phase
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Device Type : Motion - drive & motor
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1406012EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Component Name : LXM62
• Continuous Power : 9.6 kW
• Derating Altitude Scale : 80.0 m
• Derating Altitude Start : 1000.0 m
• Derating Temperature Scale : 68.5 °C
• Derating Temperature Start : 40.0 °C
• Device Short Name : LXM 62
• Environmental Characteristic : 3K3 conforming to IEC 60721-3-3
• Maximum Operational Altitude : 3000.0 m
• Minimum Ambient Air Temperature For Operation : 5.0 °C
• Nominal Power : 9.6 kW
• Overvoltage Category : III
• Package Weight Lbs : 3.988 kg
• Phase : three phase
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : single drive
• Range Of Product : PacDrive 3
• Returnability : Yes
• Shock Resistance : 100 m/s² IEC 60721-3-3
• Supply Frequency : 50/60 Hz - 5...5 %
• Sustainable Packaging : No
• Switching Frequency : 8 kHz
• Tightening Torque : CN1 2.5-2.5 N.m
• Total Lifecycle Carbon Footprint : 4 627 kg CO2 eq.
• Vibration Resistance : 10 m/s² conforming to IEC 60721-3-3
• Maximum In Rated Current2 : 20.0 A
• Medium Desc : Lexium 62 Single Drive 45A Emb. Safety - accessory kit included
• Stocking Flag : Y
• Product Kit Identifier : N
• Pep Code : ENVPEP1406012EN
• Database Version : 2024-01
• Pep Verification Date : 2025-08-28
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3-EN-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : To monitor the position of a servo motor with 80% use rate at 119 W in industrial environment during 10 years.
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; France, FR
• Energy Model Installation A5 2 : No energy used
• Energy Model Use B6 2 : Electricity origin
• Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
• Global Commercial Status : Commercialised
• Maximum In Rated Current5 : 20.0 A
• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
• Product Compatibility : servo motor SH3 140 mm, 2 optimized in terms of torque and speed, servo motor SH3 140 mm, 3 optimized in terms of torque and speed, servo motor MH3 140 mm, 1 optimized in terms of torque and speed, servo motor SH3 140 mm, 4 optimized in terms of torque and speed, servo motor SH3 205 mm, 1 optimized in terms of torque and speed, servo motor MH3 140 mm, 2 optimized in terms of torque and speed, servo motor MH3 140 mm, 3 optimized in terms of torque and speed, servo motor MH3 190 mm, 1 optimized in terms of torque and speed, servo motor SHS, servo motor MH3 100 mm, 3 optimized in terms of torque and speed
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 4626.707838704737
• Ambient Air Temperature For Operation : 5-55 °C
• Circularity Profile : ENVEOLI1406012EN
• Environmental Disclosure : ENVPEP1406012EN
• IP Degree Of Protection : IP20 IEC 60529
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 5-85 %
• Pep Code : ENVPEP1406012EN
• Pep Verification Date : 2025-08-28
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3-EN-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Phase : three phase
• Product Or Component Type : single drive
• Range Of Product : PacDrive 3
• Output Attributes
• Output Current 3s Peak : 45 A 4 kHz, 45.0 A
• Continuous Output Current : 20 A 4 kHz
• Discrete Output Voltage : 24 V DC
• Number Of Outputs : 2 digital
• Input Attributes
• Number Of Inputs : 2 digital, 2 touch probe
• Discrete Input Voltage : 24 V DC for - 20...25 %
• Specifications
• Depth : 270 mm
