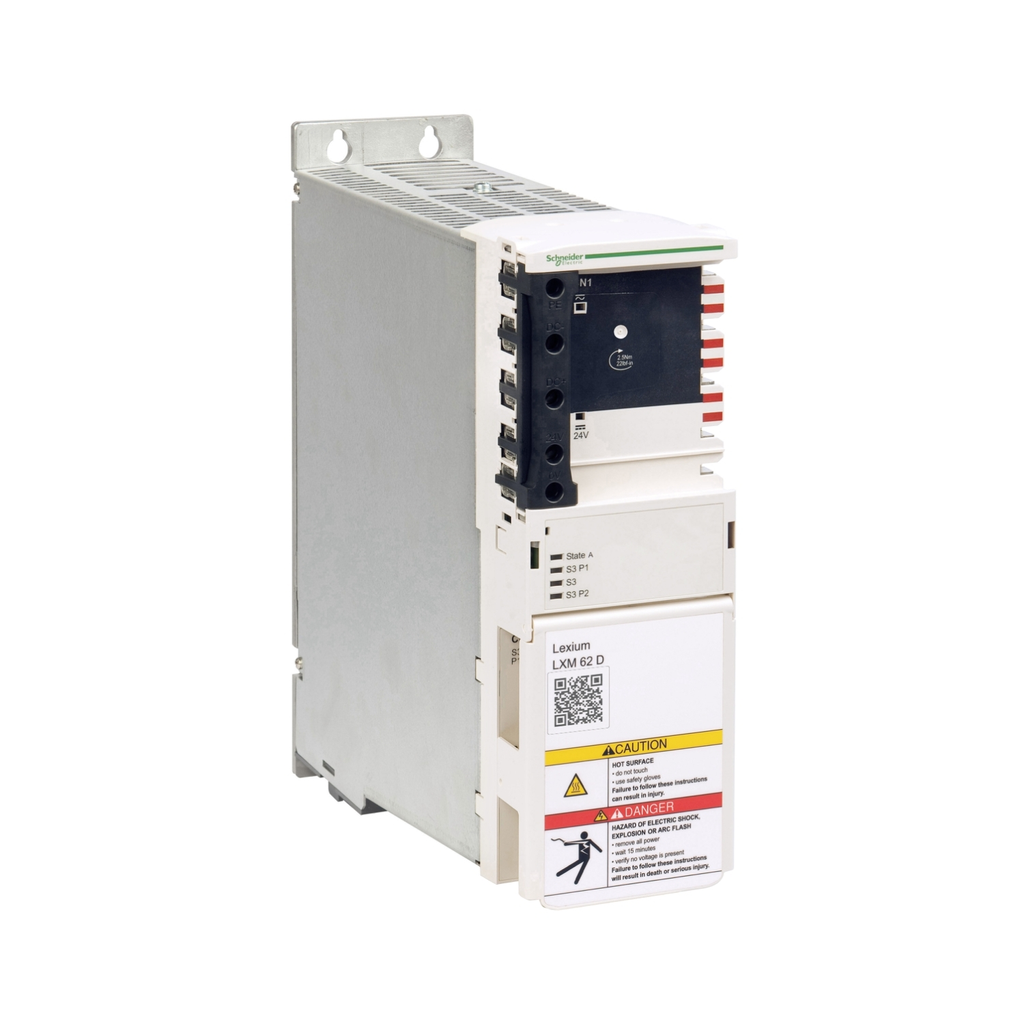

This product is part of the Lexium 62 & Motors range, an offer of servo drives. The single drive features SERCOS III physical interface. It offers 2 digital/2 touch probe inputs and 2 digital outputs. It is a single drive with a rated supply voltage of 2

• Output Current 3s Peak
• 130 A 4 kHz
• Communication Interface
• SERCOS III, Integrated
• Continuous Output Current
• 50 A 4 kHz
• Nominal Voltage
• 230 V three phase
• 400 V three phase
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Standards
• UL 508C
• IEC 61800-5-1
• ISO 13849-1
• IEC 61508
• IEC 61800-3
• IEC 61800-5-2
• IEC 62061
• ISO 13849-2
• CSA C22.2 No 14
• Ip Degree Of Protection
• IP20 IEC 60529
• Electrical Connection
• terminal 0.2...15 mm², AWG 24...AWG 16 CN4)
• terminal 0.5...16 mm², AWG 20...AWG 6 CN5)
• terminal 0.5...16 mm², AWG 20...AWG
• Discrete Input Voltage
• 24 V DC for - 20...25 %
• Vibration Resistance
• 10 m/s² conforming to IEC 60721-3-3
• Supply Voltage
• 208-360 V three phase
• 380-480 V three phase
• Persona Type Names
• End User
• Original Equipment Manufacturer
• Number Of Inputs
• 2 digital
• 2 touch probe
• Environmental Characteristic
• 3K3 conforming to IEC 60721-3-3
• Supply Frequency
• 50/60 Hz - 5...5 %
• Number Of Outputs
• 2 digital
• Persona Type Ids
• EU
• OM
• Us Rated Supply Voltage
• 400 V - 10...10 %)three phase
• 230 V - 10...10 %)three phase
• 230 V - 10...10 %)single phase
• 230 V - 10..
• Tightening Torque
• CN1 2.5-2.5 N.m
• Shock Resistance
• 100 m/s² IEC 60721-3-3
• Product Compatibility
• servo motor SH3 140 mm, 4 optimized in terms of torque and speed
• servo motor SH3 140 mm, 4 optimized in terms of torque and
• Product Certifications
• CSA
• UL
• CE
• EAC
• TÜV
• Discrete Output Voltage
• 24 V DC

• Complementary Attributes
• Line Rated Current : 50.0 A
• Maximum Ambient Air Temperature For Operation : 55.0 °C
• Maximum Current Irms : 130.0 A
• Maximum Operational Altitude : 3000.0 m
• Minimum Ambient Air Temperature For Operation : 5.0 °C
• Maximum In Rated Current : 50.0 A
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-23
• ETIM 10 : EC001857
• Device Type : Motion - drive & motor
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1407006EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1901
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 3
• Tier : 3
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Component Name : LXM62
• Continuous Power : 24.7 kW
• Derating Altitude Scale : 80.0 m
• Derating Altitude Start : 1000.0 m
• Derating Temperature Scale : 70.0 °C
• Derating Temperature Start : 40.0 °C
• Device Short Name : LXM 62
• Maximum Operational Altitude : 3000.0 m
• Minimum Ambient Air Temperature For Operation : 5.0 °C
• Nominal Power : 24.7 kW
• Overvoltage Category : III
• Package Weight Lbs : 7.272 kg
• Phase : three phase
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : single drive
• Range Of Product : PacDrive 3
• Returnability : Yes
• Safety Function : STO (safe torque off)
• Sustainable Packaging : No
• Switching Frequency : 8 kHz
• Maximum In Rated Current : 50.0 A
• Relationshiptype : Compatible relationship
• General Attributes
• Phase : three phase
• Product Or Component Type : single drive
• Range Of Product : PacDrive 3
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=403086619&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Ambient Air Temperature For Operation : 5-55 °C
• Circularity Profile : ENVEOLI1407006EN
• Environmental Disclosure : ENVPEP1407006EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 5-85 %
• Specifications
• Country of Origin : France
• Height : 12.2 in
• Width : 3.52 in
• Depth : 10.63 in
