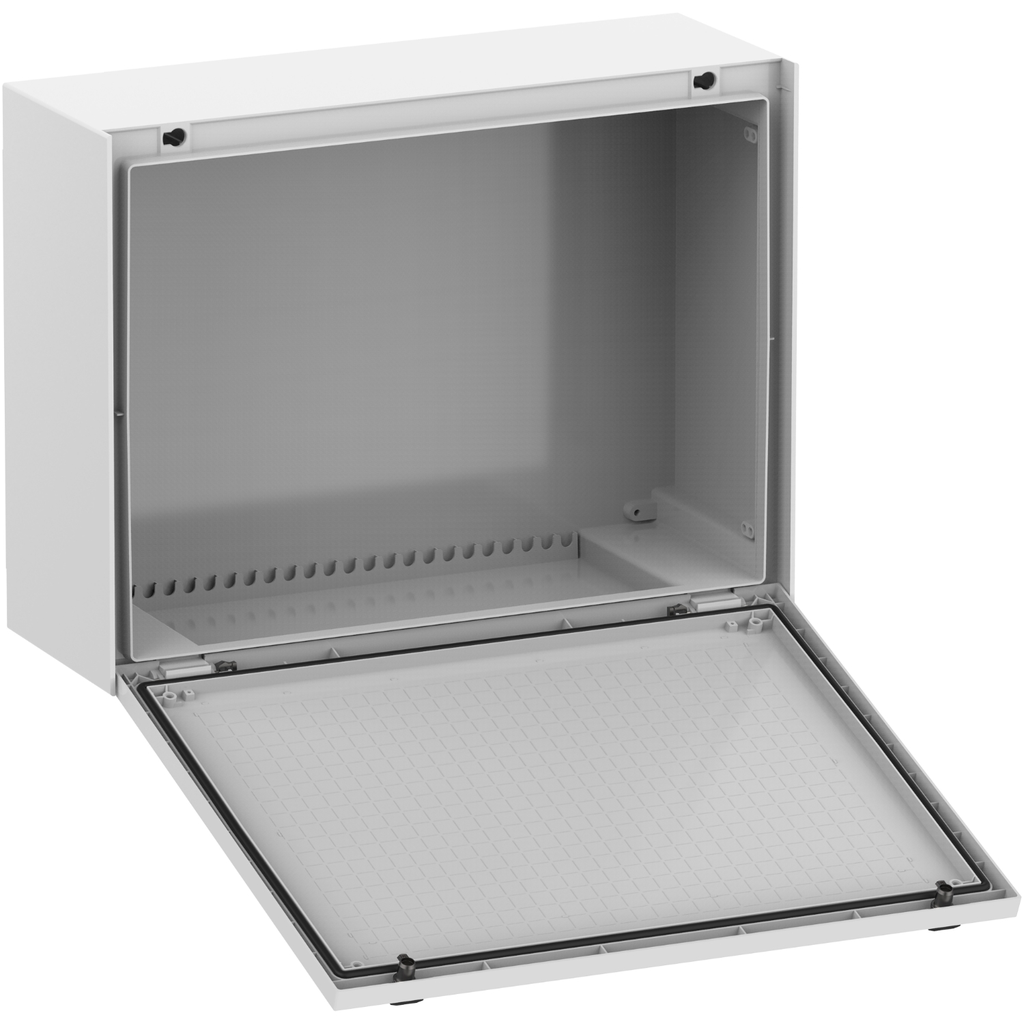

The Thalassa PLM landscape compact enclosure comes in grey colour and it's designed for multi-purpose application and photovoltaic (Solar). This compact enclosure is composed of body, door, lock. Featuring a removable door by cut hinges, comes without mounting plate. Has a built-in canopy, one piece moulded with notches in the rear. The compact enclosure is made of polyester reinforced with fibreglass, making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 747 mm x (H) 536 mm x (D) 300 mm. The door type is plain, and the door opening side is down. Equipped with two 3 mm double-bar lock lock type. It well satisfied the standard of IEC 62208, NEMA classification 13, NEMA classification 4X. This compact enclosure is BV, UL certified.

• Physical Attributes
• Color : Gray RAL 7035)
• Enclosure Nominal Height : 536 mm, 536 mm
• Enclosure Nominal Width : 747 mm, 747 mm
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Body Type : built-in canopy, on lateral side, one piece moulded with notches in the rear
• Device Composition : 1 body, 1 door, 2 lock
• Door Type : Solid
• Enclosure Mounting : wall mounted
• Material : polyester reinforced with fibreglass
• Product Or Component Type : compact enclosure
• Range : PanelSeT
• Carbon Footprint Of The Distribution Phase A4 : 27.794517570587676, 28 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 28 kg CO2 eq., 28.481439545237656
• Carbon Footprint Of The Installation Phase A5 : 3.3423454947530558, 3 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 49 kg CO2 eq., 49.48950563704029
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Certificate Agency : UL, BV
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-15
• Return Indicator : N
• Stocking Flag : Y
• Stock Policy : 2
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2123
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 7
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Percentage Of Recycled Plastic Content : 37 %
• Device Application : multi-purpose
• Device Short Name : PLM
• Door Opening Side : down
• Electrical Insulation Class : class II
• Energy Efficiency Optimized : False
• Fire Resistance : 960 °C IEC 62208
• Installation Direction : horizontal
• Lock Type : 3 mm double-bar lock
• Mounting Plate Description : without mounting plate
• Number Of Locks : 2
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Removable Parts : door by cut hinges
• Returnability : No
• Software Version : v6.1
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 109 kg CO2 eq.
• Silicone Free : Yes
• Warranty In Months : 18
• Material 5 Material : polyester reinforced with fibreglass
• Pep Code : ENVPEP2405006_V1
• Database Version : 2023-02
• Pep Verification Date : 2024-12-01
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional-unit Description : Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
• Functional-unit Quantity : 1
• Functional-unit Unit : Unit
• Reference Lifetime, In Y : 20
• Energy Model - Manufacturing [A1-a3] : Spain, ES
• Energy Model - Installation [A5] : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model - Use [B6] : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model - End Of Life [C1-c4] : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Offer Owner Code : 190789
• Pn : 1
• Environment Attributes Main
• Ambient Air Temperature For Operation : -40-80 °C, -40-80 °C
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Silicon Free : Yes
• Carbon Footprint : 109.10780824761869
• Environmental Disclosure : ENVPEP2405006_V1
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP66 IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2405006_V1
• Pep Verification Date : 2024-12-01
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : compact enclosure
• ETIM
• ETIM 8 : EC000261
• ETIM 9 : EC000261
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Spain
