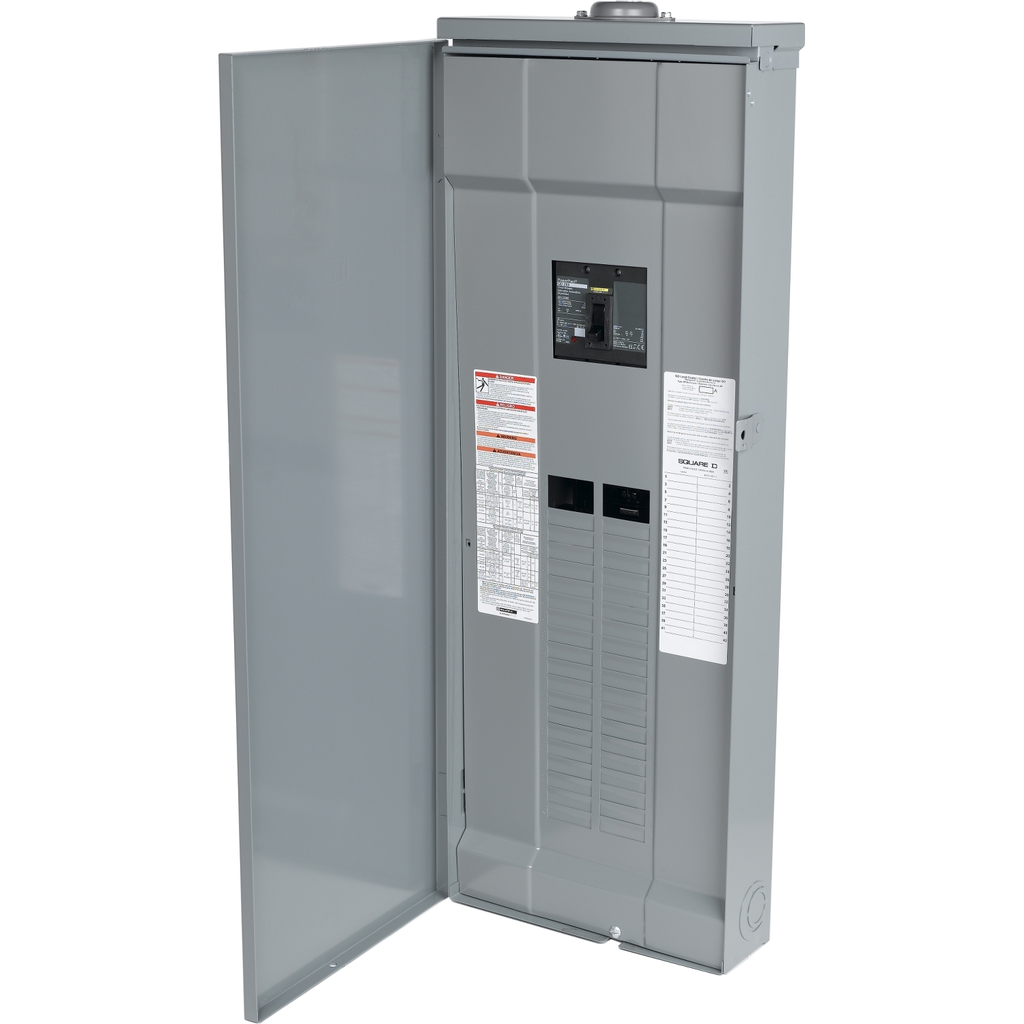

Load center, QO, 3 phase, 42 spaces, 42 circuits, 200A convertible main breaker, NEMA3R, QDL

SQD QO342MQ200RB LOAD CENTER Q

SQDQO342MQ200RB QO342MQ200RB 785901290636
2238.62 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Load center, QO, 3 phase, 42 spaces, 42 circuits, 200A convertible main breaker, NEMA3R, QDL-2
  • Country of Origin: USA
  • Cover Type: Surface Cover
  • Enclosure Material: Steel
  • Height: 39.37 in
  • Number of Circuits: 42
  • Number of Spaces: 42
  • Warranty Length: 18 mth
  • Width: 14.76 in
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems,
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems,
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Ue Rated Operational Voltage
    • 208Y/120 V AC
    • 240/120 V delta AC
    • 240 V delta AC
  • Phase
    • 3 phase 4 wires
    • 3 phase 3 wires
  • Material
    • tin plated copper: busbar
  • Nema Degree Of Protection
    • NEMA 3R weatherproof enclosure
  • Accessories
    • B075
    • LK70AN
    • PK2MB
    • B100
    • PK23GTA
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
  • Persona Type Ids
    • EU
    • LC
    • OM
  • AWG Gauge
    • AWG 4...300 kcmil aluminium/copper
  • Ambient Air Temperature For Operation
    • -5 °C
    • 40 °C
  • Surface Finish
    • baked enamel Gray
  • Conformance Attributes
    • Product Certifications : UL Listed
  • Complementary Attributes
    • Line Rated Current : 200 A
  • Important Information Attributes
    • Country Id : US
    • B2B Bullet Point 1 : Provides superior performance and durability
    • B2B Bullet Point 2 : Straight in wiring saves wire, labor, and time
    • B2B Bullet Point 3 : Faster installation using PoN breakers that connect directly
    • B2B Bullet Point 4 : 50% more terminations for clutter-free wiring
    • B2B Bullet Point 5 : Complies with UL 67 listed, CSA, and IEC standards
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-08-18
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 2532
    • ROHS Eur Full Compliance Status : Compliant with Exemptions
    • ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • H And D Domain : Safety
    • H And D Subrange : COM
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Load centers (equipped)
    • H And D Enrichment Class 4 : Three-phase convertible mains load center
    • Box Number : 14R
    • Cover Type : surface cover
    • Device Composition : grounding bar (ordered separately)
    • Electrical Connection : lugs
    • Enclosure Material : welded galvannealed steel
    • Energy Efficiency Optimized : False
    • Load Center Type : main breaker
    • Number Of Circuits : 42
    • Number Of Spaces : 42
    • Number Of Tandem Circuit Breakers : 0
    • Package Weight Lbs : 21.700 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Load Center
    • Range Of Product : QO
    • Returnability : Yes
    • Short Circuit Current : 25 kA
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : Load Center
    • Range Of Product : QO
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=360849&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212001
    • Eu Rohs Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
    • Height : 39.37 in
    • Width : 14.76 in
