QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems,

• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=3042&p_File_name=3042.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=3042&p_File_name=3042.dxf
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Phase
• 3 phase 4 wires
• 3 phase 3 wires
• Material
• tin plated copper: busbar
• Nema Degree Of Protection
• NEMA 3R weatherproof enclosure
• Accessories
• B075
• B100
• PK18GTA
• B200
• Persona Type Names
• End User
• Consumer
• Contractor
• Original Equipment Manufacturer
• Electrician
• Persona Type Ids
• EU
• EUA
• LC
• OM
• SC
• AWG Gauge
• AWG 4...300 kcmil aluminium/copper
• UE Rated Operational Voltage
• 208Y/120 V AC
• 240/120 V delta AC
• 240 V delta AC
• Surface Finish
• baked enamel Gray

• Important Information Attributes
• B2B Bullet Point 1 : Provides superior performance and durability
• B2B Bullet Point 2 : Straight in wiring saves wire, labor, and time
• B2B Bullet Point 3 : Faster installation using PoN breakers that connect directly
• B2B Bullet Point 4 : 50% more terminations for clutter-free wiring
• B2B Bullet Point 5 : Complies with UL 67 listed, CSA, and IEC standards
• Local Data Status : Publishable
• Local Publishable Date : 4/9/2025

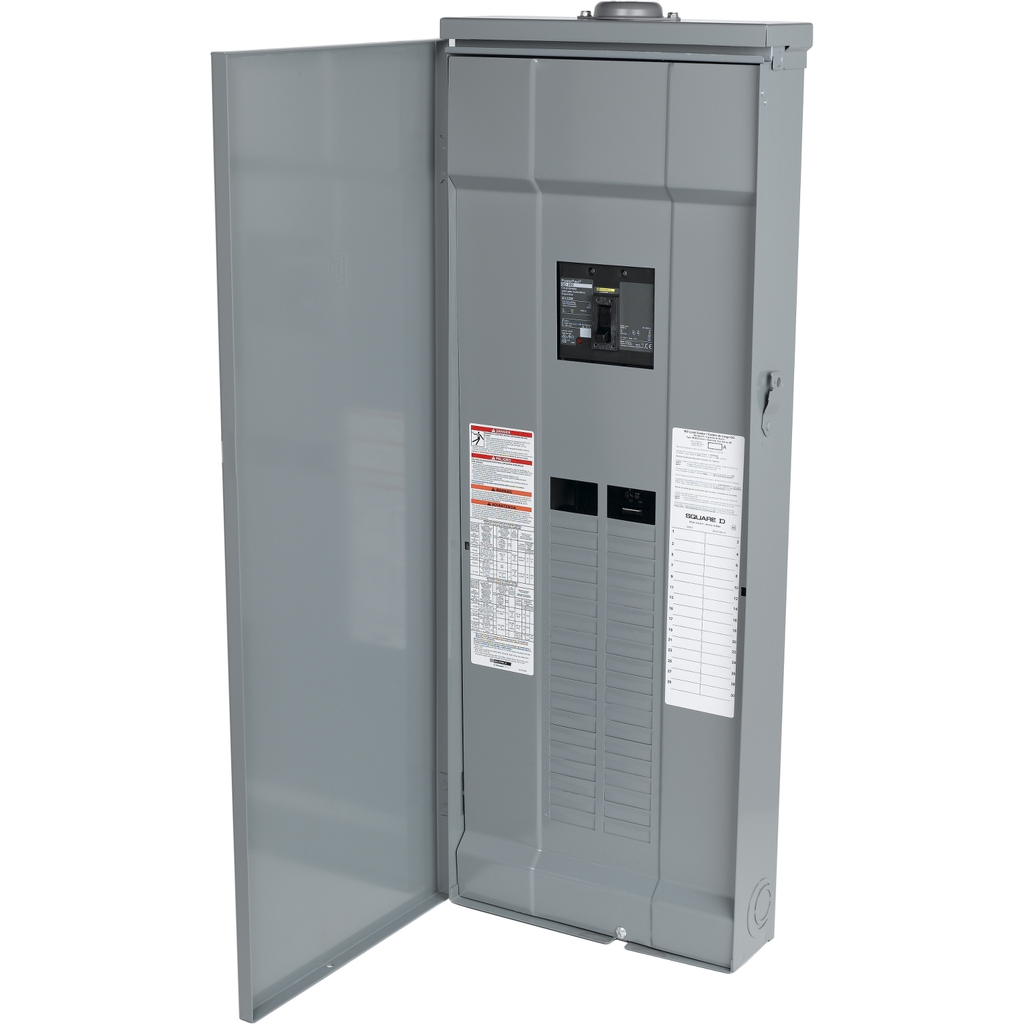

• HTML Description : QO, Load center, 3 phase, 30 spaces, 30 circuits, 200A convertible main breaker, NEMA3R, QDL, UL
• Manufacturer : Schneider Electric
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 2532
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• H And D Domain : Safety
• H And D Subrange : COM
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• H And D Enrichment Class 3 : Load centers (equipped)
• H And D Enrichment Class 4 : Three-phase convertible mains load center
• Cover Type : surface cover
• Electrical Connection : lugs
• Energy Efficiency Optimized : FALSE
• Load Center Type : main breaker
• Number Of Spaces : 30
• Number Of Tandem Circuit Breakers : 0
• Package Weight Lbs : 21.251 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Load Center
• Range Of Product : QO
• Returnability : Yes
• Sustainable Packaging : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2212001
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : Load Center
• Range Of Product : QO
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=360757&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2212001
• EU ROHS Directive : Compliant with Exemptions
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2212001
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United States
