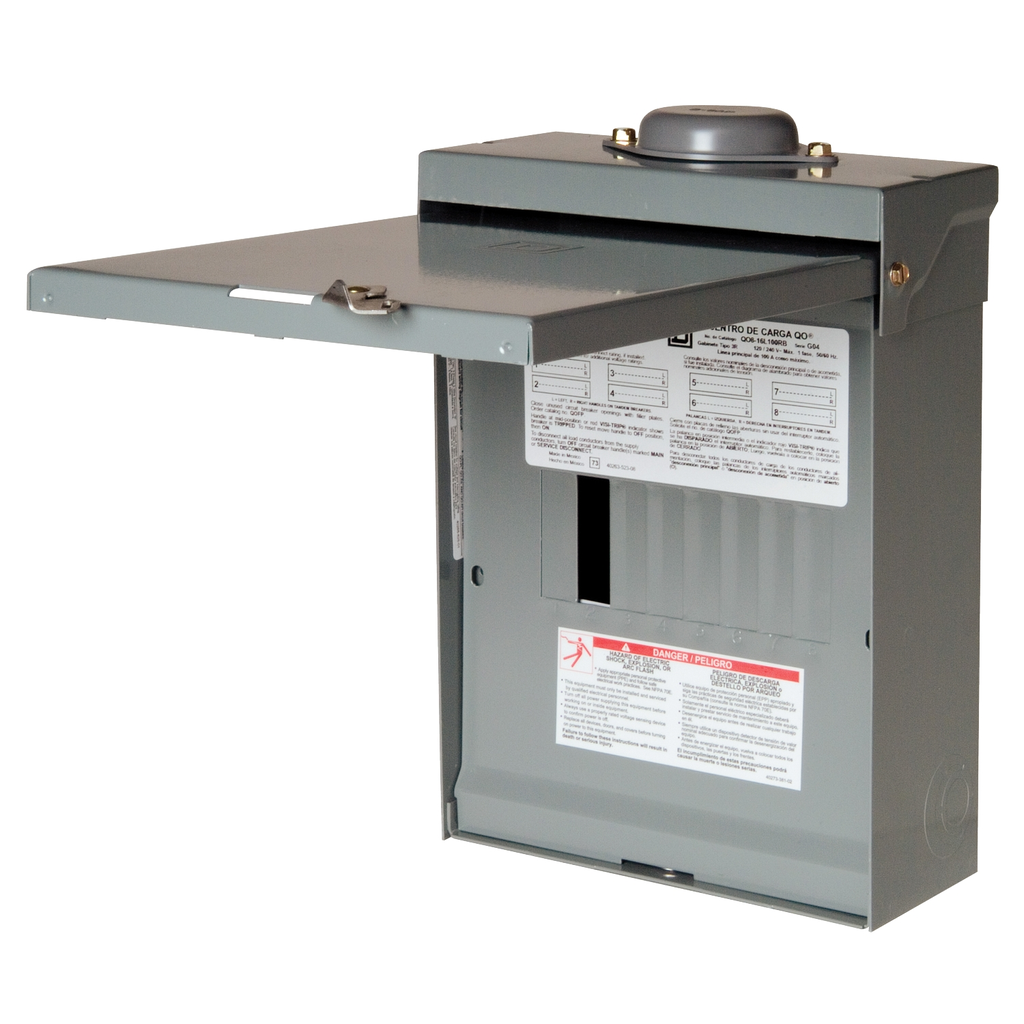

Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA3R

LOADCENTER - RT

SQDQO816L100RB QO816L100RB 785901785750
166.30 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA3R-1
  • Cover Type: Surface Cover
  • Enclosure Material: Steel
  • Surface Finish: Baked Enamel Gray
  • Warranty Length: 18 mth
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 8 spaces and 16 circuits. This system provides 100A fixed main lugs in a NEMA 3R enclosure. This product is UL rated.
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 8 spaces and 16 circuits. This system provides 100A fixed main lugs in a NEMA 3R enclosure. This product is UL rated.
  • Features
    • Provides superior performance and durability
    • Straight in wiring saves wire, labor, and time
    • Faster installation using PoN breakers that connect directly
    • 50% more terminations for clutter-free wiring
    • Complies with UL 67 listed, CSA, and IEC standards
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : UL Listed
  • Complementary Attributes
    • Line Rated Current : 100 A
  • Important Information Attributes
    • Persona Type Ids : EU, EUA, LC, OM, SC
    • Persona Type Names : End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
    • Tightening Torque : main lugs 50 lb.in, AWG 8, aluminium/copper, main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper
    • Carbon Footprint Of The Distribution Phase A4 : 1.4941337118, 1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.2703920524
    • Carbon Footprint Of The Installation Phase A5 : 0.0976298865, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 19 kg CO2 eq., 19.1411091703
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0.1 kg CO2 eq., 0.0873405405
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Manufacturer : Schneider Electric
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • AWG Gauge : AWG 8...AWG 1 aluminium/copper
    • Box Number : 2R
    • Cover Type : surface cover
    • Device Composition : grounding bar (ordered separately)
    • Electrical Connection : lugs
    • Enclosure Material : welded galvannealed steel
    • Energy Efficiency Optimized : False
    • Load Center Type : Fixed Mains (lugs)
    • Material : tin plated aluminium: busbar
    • Package Weight Lbs : 4.423 kg
    • Phase : 1 phase 3 wires
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Load Center
    • Range Of Product : QO
    • Returnability : Yes
    • Short Circuit Current : 10 kA
    • Surface Finish : baked enamel Gray
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 21 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Ue Rated Operational Voltage2 : 120/240 V AC
    • Medium Desc : Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA3R
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2212002EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-08-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 952.5mm x1219.2mm x 101.6mm, comply with UL 67 and CSA22.2 with an available offer:& 10-suitable for use on 120/240 Vac and 48 Vdc systems& 10-rated 30–125 A& 10-supplies from two to sixteen circuits& 10-surface or flush-mounted cover& 10-Types 1 & 3R& 10-main lugs only
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Tlaxcala Mexico
    • Energy Model Installation A5 2 : Electricity mix; AC; consumption mix, at consumer; 120V; US
    • Energy Model Use B6 2 : Electricity mix; AC; consumption mix, at consumer; 120V; US
    • Energy Model End Of Life C1 C4 2 : Electricity mix; AC; consumption mix, at consumer; 120V; US
    • Global Commercial Status : Commercialised
    • Ue Rated Operational Voltage5 : 120/240 V AC
  • Environment Attributes Main
    • Take Back : No, Nej
    • China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Ambient Air Temperature For Operation : -5 °C, 40 °C
    • EU ROHS Directive : Compliant , Compliant
    • ROHS Exemption Information : Yes
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 21.0906053615
    • Environmental Disclosure : ENVPEP2212002EN
    • Nema Degree Of Protection : NEMA 3R weatherproof enclosure
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2212002EN
    • Pep Verification Date : 2023-08-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Phase : 1 phase 3 wires
    • Product Or Component Type : Load Center
    • Range Of Product : QO
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
