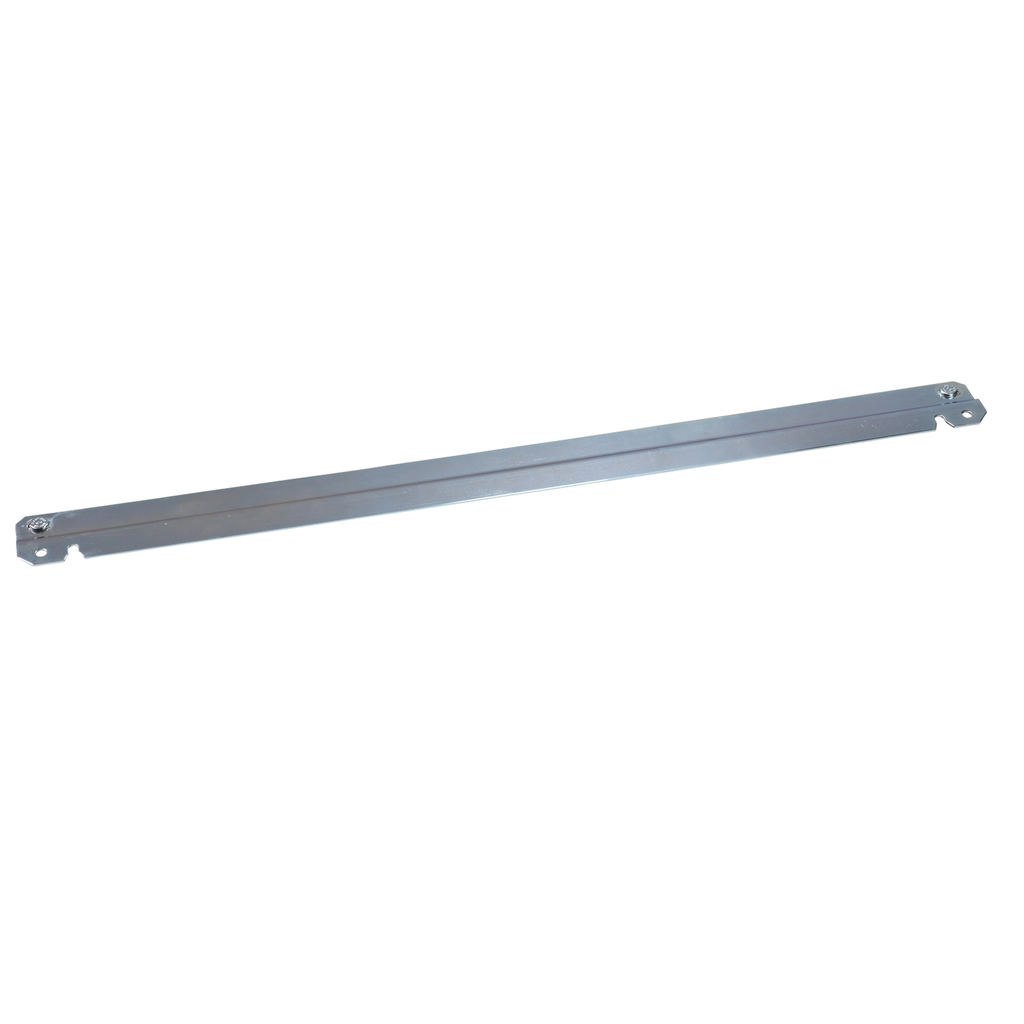

Kit for heavy load. Kit composed with 2 brackets. Maximum load 400 kg

KIT FOR HEAVY LOAD. KIT COMPOS

SQDNSYAEFPFS3DW100 NSYAEFPFS3DW100 3606480323041
89.55 / EA
http://schema.org/OutOfStock
Mayer-DDS-Kit for heavy load. Kit composed with 2 brackets. Maximum load 400 kg-1
  • Depth: 7.5 mm
  • Height: 47 mm
  • Material: Zinc Coated Steel
  • Net Weight: 3.262 kg
  • Warranty Length: 18 mth
  • Width: 1000 mm
QTY
  • Specifications
  • Complementary
    • Width : 1000 mm
    • Height : fixing centers 47 mm
    • Material : zinc coated steel
    • Net Weight : 3.262 kg
    • Depth : wall-enclosure separation 7.5 mm
    • Fixing Mode : screwed M8 - inside
    • Permanent Permissible Load : 350 kg
  • Offer Sustainability
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP100104EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
  • Contractual warranty
    • Warranty : 18 months
  • Specifications
    • Enclosure Nominal Dimensions : H: 800 mm W: 1000 mm D: 300 mm || - H: 1000 mm W: 1000 mm D: 300 mm || - H: 1200 mm W: 1000 mm D: 300 mm || - H: 1200 mm W: 1000 mm D: 400 mm || - H: 1400 mm W: 1000 mm D: 400 mm
    • Range Compatibility : Spacial Spacial S3DC
    • Accessory / Separate Part Category : fixing accessory
    • Quantity Per Set : set of 1
    • Product Or Component Type : wall fixing support
    • Device Composition : fixing screws || 2 lug || 2 pre-mounted sealing gasket
    • Device Application : multi-purpose
    • Range : Spacial
    • Mounting Location : top and bottom, on rear of the enclosure
