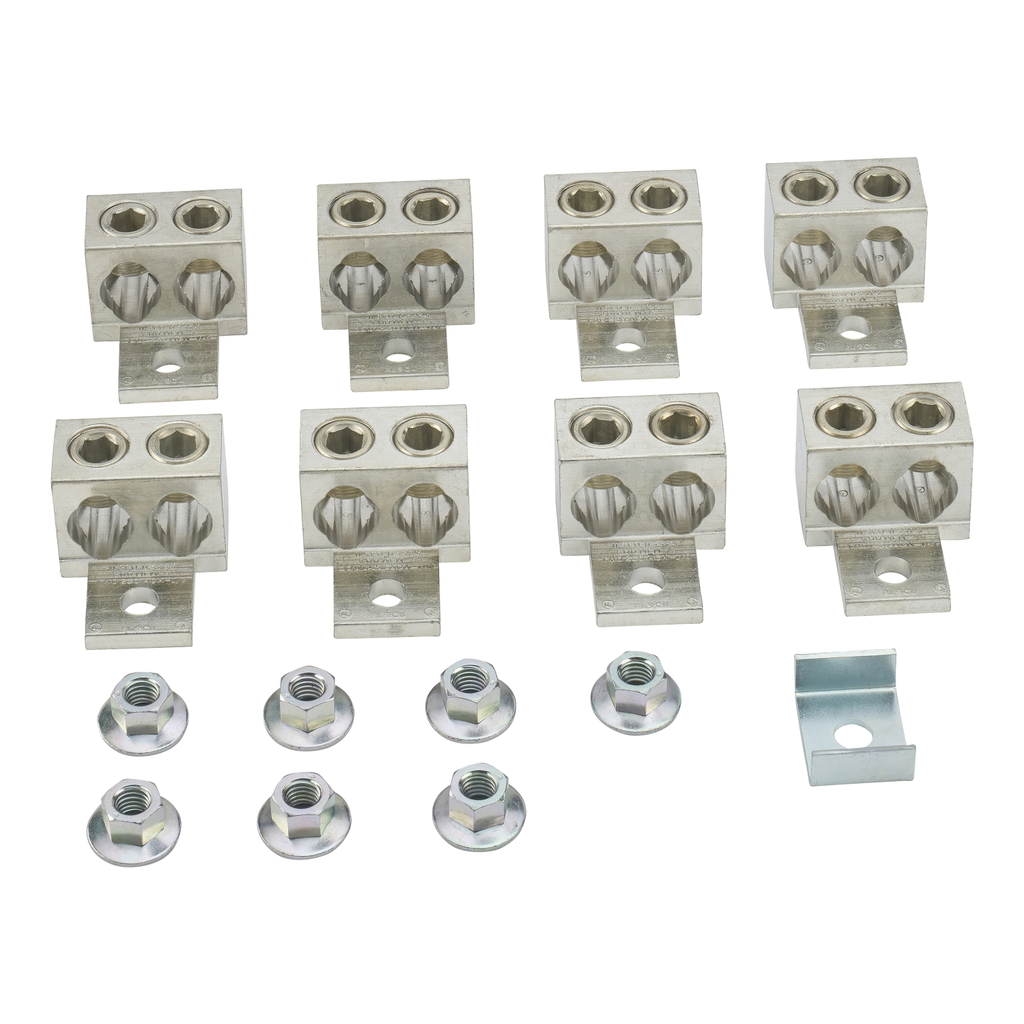

Connection accessory, safety switch, lug kit, 400A or 600A, qty 8

KIT LUGS FOR 400+600A GD SW SE

SQDGD4060LK GD4060LK 785901570004
328.14 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Connection accessory, safety switch, lug kit, 400A or 600A, qty 8-1
  • Country of Origin: Canada
  • Warranty Length: 18 mth
The lug kit provides the terminals where incoming and outgoing wires are securely connected to the safety switch. These lugs are designed to handle specific wire sizes and types (copper or aluminum), ensuring proper conductivity and mechanical strength. They ensure that wires are tightly secured using appropriate torque settings, reducing the risk of loose connections that could lead to overheating or electrical faults. This lug accepts copper conductor ranging 2-1/0-600 kcmil or 4-1/0-250 kcmil and suitable for 400-600A.
QTY
  • Product Description
  • Features
  • Specifications
The lug kit provides the terminals where incoming and outgoing wires are securely connected to the safety switch. These lugs are designed to handle specific wire sizes and types (copper or aluminum), ensuring proper conductivity and mechanical strength. They ensure that wires are tightly secured using appropriate torque settings, reducing the risk of loose connections that could lead to overheating or electrical faults. This lug accepts copper conductor ranging 2-1/0-600 kcmil or 4-1/0-250 kcmil and suitable for 400-600A.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information Attributes
    • Persona Type Ids : LC, OM8, PB
    • Persona Type Names : Contractor, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Awg Gauge : AWG 1/0...600 kcmil 6 aluminium/copper, AWG 1/0...250 kcmil 2 aluminium/copper
    • Product Destination : safety switch general duty 400-400 A, safety switch general duty 600-600 A
    • Provided Equipment : 8 x lug, 7 x spring nut, 1 x neutral bar
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-12-16
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 1
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Weee Scope : In
    • Weee Product Category : 4
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 1906
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 7
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Energy Efficiency Optimized : False
    • Halogen Free Status : Halogen free plastic parts product
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : lug kit
    • Returnability : Yes
    • Sustainable Packaging : No
    • Warranty In Months : 18
    • Offer Owner Code : 190788
    • Pn : 1
  • Environment Attributes Main
    • Take Back : No
    • Halogene Performance : Halogen free plastic parts product
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant By Exemption
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • General Attributes
    • Provided Equipment : 8 x lug, 7 x spring nut, 1 x neutral bar
    • Product Or Component Type : lug kit
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Canada
