Voltage or current converter, Harmony Analog, Isolated 0...20mA

ANALOG CONVERTER MODULE RMC +

SQDRMCL55BD RMCL55BD 3389110108897
251.20 / EA
http://schema.org/OutOfStock

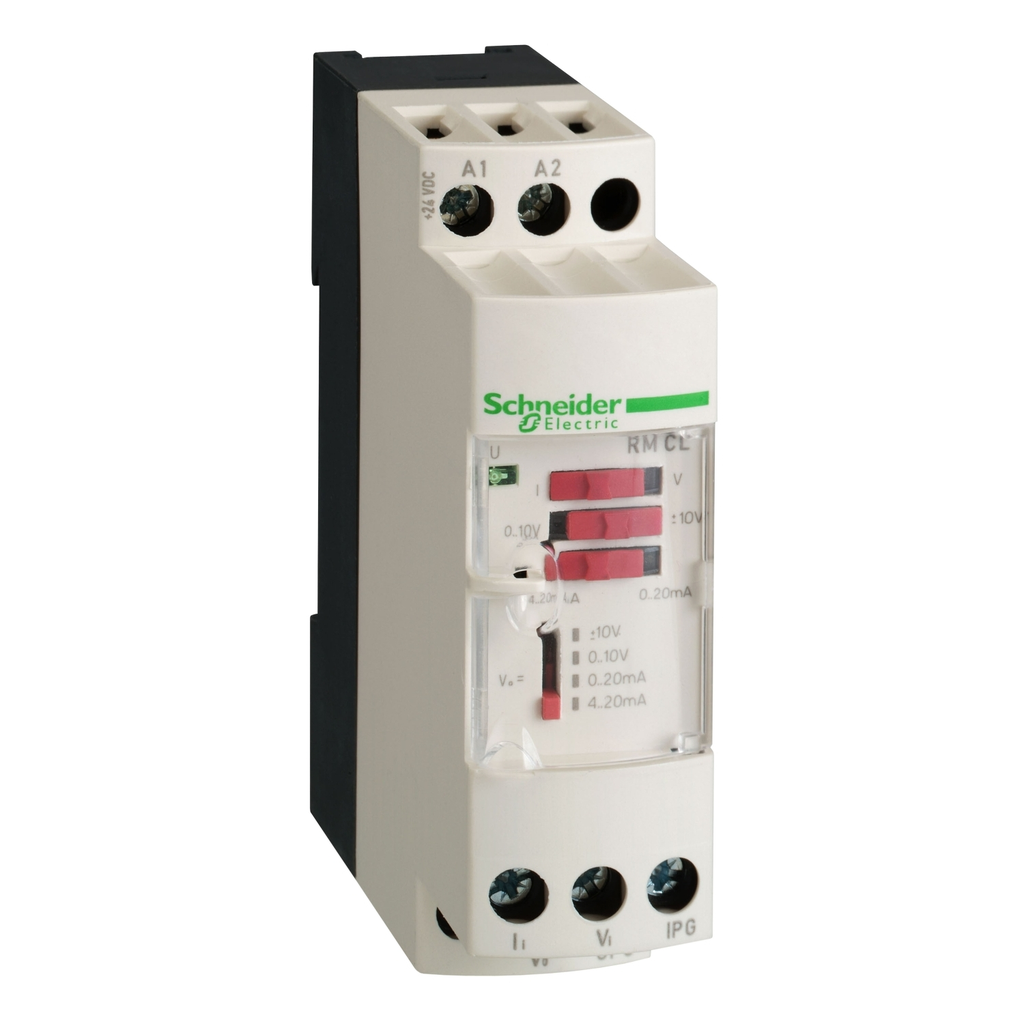

Mayer-DDS-Voltage or current converter, Harmony Analog, Isolated 0...20mA-1
  • Warranty Length: 18 mth
This voltage/current converter is part of the range of Harmony Analog. It allows conversion of the most common signals. Its supply voltage is 24V DC, isolated. It features four inputs with voltage/current range of 0V to 10V, +/- 10V, 0mA to 20mA, and 4mA to 20mA. It has four outputs with a switchable voltage/current range of 0V to 10V, +/- 10V, 0mA to 20mA, and 4mA to 20mA. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. 0 It weighs 0.120Kg. 0 0 Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 Quick and intuitive setting, easy to use with fixed input and output values according to the market needs. The settings are secure with sealable protective cover. 0
QTY
  • Product Description
  • Features
  • Specifications
This voltage/current converter is part of the range of Harmony Analog. It allows conversion of the most common signals. Its supply voltage is 24V DC, isolated. It features four inputs with voltage/current range of 0V to 10V, +/- 10V, 0mA to 20mA, and 4mA to 20mA. It has four outputs with a switchable voltage/current range of 0V to 10V, +/- 10V, 0mA to 20mA, and 4mA to 20mA. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. 0 It weighs 0.120Kg. 0 0 Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 Quick and intuitive setting, easy to use with fixed input and output values according to the market needs. The settings are secure with sealable protective cover. 0
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • US Rated Supply Voltage : 24 V DC +/- 20 %, isolated
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Current Consumption : <= 70 mA voltage output, <= 70 mA voltage output, <= 90 mA current output, <= 90 mA current output
    • Fire Resistance : 850 °C IEC 60695-2-1, 850 °C UL
    • Fixing Mode : by screws (mounting plate), clip-on (35 mm symmetrical DIN rail)
    • Resistance To Electrostatic Discharge : 6 kV in contact)IEC 61000-4-2 level 3, 8 kV in air)IEC 61000-4-2 level 3
    • Resistance To Fast Transients : 1 kV IEC 61000-4-4 on input-output), 2 kV IEC 61000-4-4 on power supply)
    • Carbon Footprint Of The Distribution Phase A4 : 0.0154824399, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.0614499076
    • Carbon Footprint Of The Installation Phase A5 : 0.0009326433, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 3 kg CO2 eq., 2.7690203327
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 37 kg CO2 eq., 37.2370909091
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-26
    • HTML Description : Zelio Isoled Analog ConverterAnalog Input Type: Current 0-20 mA, 4-20 mA, Voltage +/- 10V DC, 0-10V DCRated Supply Voltage: 24V DC +/- 20% non isolatedLocal Signaling: LED Green (power ON)Degree of Protection: IP20 terminal block, IP50 housing
    • Manufacturer : Schneider Electric
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2511011EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Local Signalling : LED (green) for power ON
    • Package Weight Lbs : 118.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : voltage/current converter
    • Range Of Product : Harmony Analog
    • Returnability : Yes
    • Shock Resistance : 50 gn 11 ms IEC 60068-2-27
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 40 kg CO2 eq.
    • Vibration Resistance : 5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2511011EN
    • Pep Verification Date : 2016-09-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed1-2012 12 11
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : To convert signals emitted by sensors or electrical measurement devices, into standard electrical signals that are compatible with automation platforms and controllers (thermal processes, speed, etc.). during 10 years with a 100% use rate, in compliance with French standard.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
    • Product Manager : LEK YEE ALEX THO
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : 0-50 °C mounting side by side, 0-60 °C 2 cm spacing
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 40.0839762326
    • Circularity Profile : ENVEOLI2511011EN
    • Environmental Disclosure : ENVPEP2511011EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2511011EN
    • Pep Verification Date : 2016-09-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed1-2012 12 11
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : voltage/current converter
    • Range Of Product : Harmony Analog
  • Output Attributes
    • Analogue Output Current : 22-30 mA 0...20 mA no input or input wire broken voltage, 22-30 mA 4...20 mA no input or input wire broken voltage, -30-0 mA 0...20 mA no input or input wire broken current, -30-0 mA 0...20 mA no input or input wire broken current, -30-0 mA 0...20 mA no input or input wire broken current, -30-0 mA 0...20 mA no input or input wire broken current, 4-30 mA 4...20 mA no input or input wire broken current
    • Analogue Output Type : current 0...20 mA <= 500 Ohm switchable, current 4...20 mA <= 500 Ohm switchable, voltage +/- 10 V >= 100 kOhm switchable, voltage 0...10 V >= 100 kOhm switchable
    • Analogue Output Voltage : 11...15 V - 10...10 V no input or input wire broken voltage, 11...15 V 0...10 V no input or input wire broken voltage, -15...0 V 0...20 mA no input or input wire broken current, -15...0 V 0...20 mA no input or input wire broken current, -15...0 V 0...20 mA no input or input wire broken current, -15...0 V 0...20 mA no input or input wire broken current, -15...0 V 4...20 mA no input or input wire broken current, -15...0 V 4...20 mA no input or input wire broken current, -15...0 V 4...20 mA no input or input wire broken current, -15...0 V 4...20 mA no input or input wire broken current
  • Surge Protection And Filtering Attributes
    • Surge Withstand : 0.5 kV 1.2/50 µs IEC 61000-4-5
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Analogue Input Type : current 0...20 mA, current 4...20 mA, voltage +/- 10 V DC, voltage 0...10 V DC
