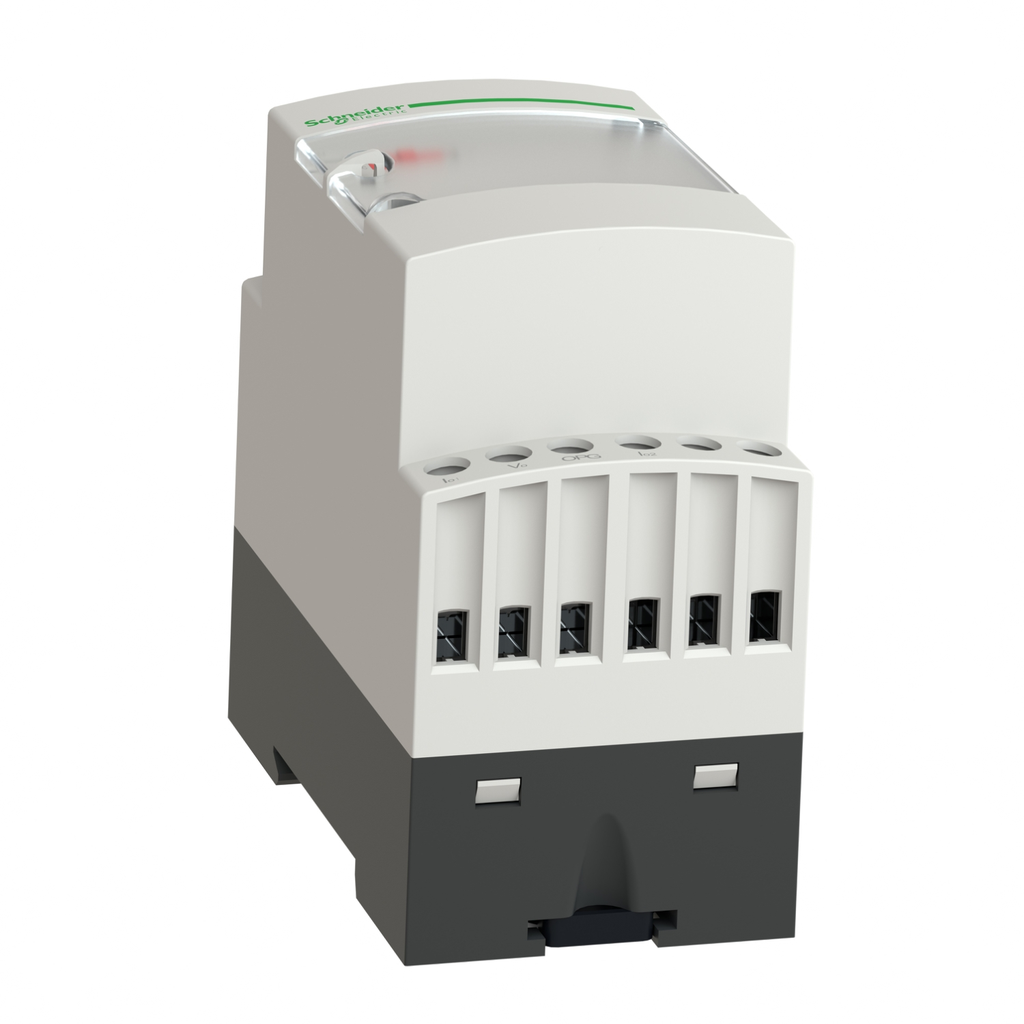

This voltage/current converter is part of the Harmony Analog range. It allows conversion of electrical power signals, both AC and DC. Its supply voltage is 24V DC, isolated. It features for current inputs with a range of 0A to 1.5A, 0A to 5A, 0A to 15A (AC/DC). It has outputs with a switchable voltage/current range of 0V to 10V, 0mA to 20mA, and 4mA to 20mA. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. 0 It weighs 0.140Kg. 0 0 Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 Quick and intuitive setting, easy to use with fixed input and output values according to the market needs. The settings are secure with sealable protective cover. 0 0 0 0

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Ui Rated Insulation Voltage : 2 kV
• Us Rated Supply Voltage : 24 V DC +/- 20 %, isolated
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Current Consumption : <= 70 mA voltage output, <= 70 mA voltage output, <= 90 mA current output, <= 90 mA current output<= 70 mA voltage output, <= 70 mA voltage output, <= 90 mA current output, <= 90 mA current output
• Fire Resistance : 850 °C IEC 60695-2-1, 850 °C UL
• Protection Type : reverse polarity protection on output, short-circuit protection on output, overvoltage protection on output (+/- 30 V)
• Safety Reliability Data : B10d = 22108, MTTFd = 23.9 years
• Certificate Agency : CSA, UL, GL
• Disturbance Radiated/Conducted : CISPR 11, CISPR 22 group 1 - class B
• Carbon Footprint Of The Distribution Phase A4 : 0.0192369316, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.0763515102, 0.1 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0011588092
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 3 kg CO2 eq., 3.4405077634
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 114 kg CO2 eq., 113.78
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Use Carbon Footprint : 113.78
• Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2511011EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Fixing Mode : by screws (mounting plate)clip-on (35 mm symmetrical DIN rail)
• Local Signalling : LED (green) for power ON
• Marking : CE
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : voltage/current converter
• Range Of Product : Harmony Analog
• Resistance To Electrostatic Discharge : 6 kV in contact)IEC 61000-4-2 level 38 kV in air)IEC 61000-4-2 level 3
• Resistance To Fast Transients : 1 kV IEC 61000-4-4 on input-output)2 kV IEC 61000-4-4 on power supply)
• Returnability : Yes
• Shock Resistance : 50 gn 11 ms IEC 60068-2-27
• Software Version : EIME v5.5
• Sustainable Packaging : Yes
• Tightening Torque : 0.6-1.1 N.m
• Total Lifecycle Carbon Footprint : 117 kg CO2 eq.
• Vibration Resistance : 5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6
• Database Version : 2015-04
• Data Source : extrapolated product
• Nbr. Of Units In Pkg. : 1
• Customs Code : 8543709860
• Warranty In Months : 18
• Product Weight In G : 149.1
• Functional Unit Description : To convert signals emitted by sensors or electrical measurement devices, into standard electrical signals that are compatible with automation platforms and controllers (thermal processes, speed, etc.). during 10 years with a 100% use rate, in compliance with French standard.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 192.72
• Environment Attributes Main
• Ambient Air Temperature For Operation : 0-50 °C mounting side by side, 0-60 °C 2 cm spacing
• Ambient Air Temperature For Storage : -40-85 °C, -40-85 °C
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 117.3172550144
• Circularity Profile : ENVEOLI2511011EN
• Environmental Disclosure : ENVPEP2511011EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2511011EN
• Pep Verification Date : 2016-09-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed1-2012 12 11
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : voltage/current converter
• Range Of Product : Harmony Analog
• ETIM
• ETIM 8 : EC002048
• ETIM 9 : EC002048
• Output Attributes
• Analogue Output Current : -30-0 mA 0...20 mA no input or input wire broken, -30-0 mA 0...20 mA no input or input wire broken, -30-0 mA 0...20 mA no input or input wire broken, -30-0 mA 0...20 mA no input or input wire broken, -30-0 mA 0...20 mA no input or input wire broken, -30-0 mA 0...20 mA no input or input wire broken4-30 mA 4...20 mA no input or input wire broken
• Analogue Output Type : current 0...20 mA <= 500 Ohm by cabling, current 4...20 mA <= 500 Ohm by cabling, voltage 0...10 V >= 100 kOhm by cabling
• Analogue Output Voltage : -15...0 V no input or input wire broken, -15...0 V no input or input wire broken-15...0 V no input or input wire broken, -15...0 V no input or input wire broken
• Surge Protection And Filtering Attributes
• Surge Withstand : 0.5 kV 1.2/50 µs IEC 61000-4-5
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Analogue Input Type : current 0...1.5 A AC/DC 50/60 Hz, current 0...15 A AC/DC 50/60 Hz, current 0...5 A AC/DC 50/60 Hz
• Specifications
• Country of Origin : Indonesia
