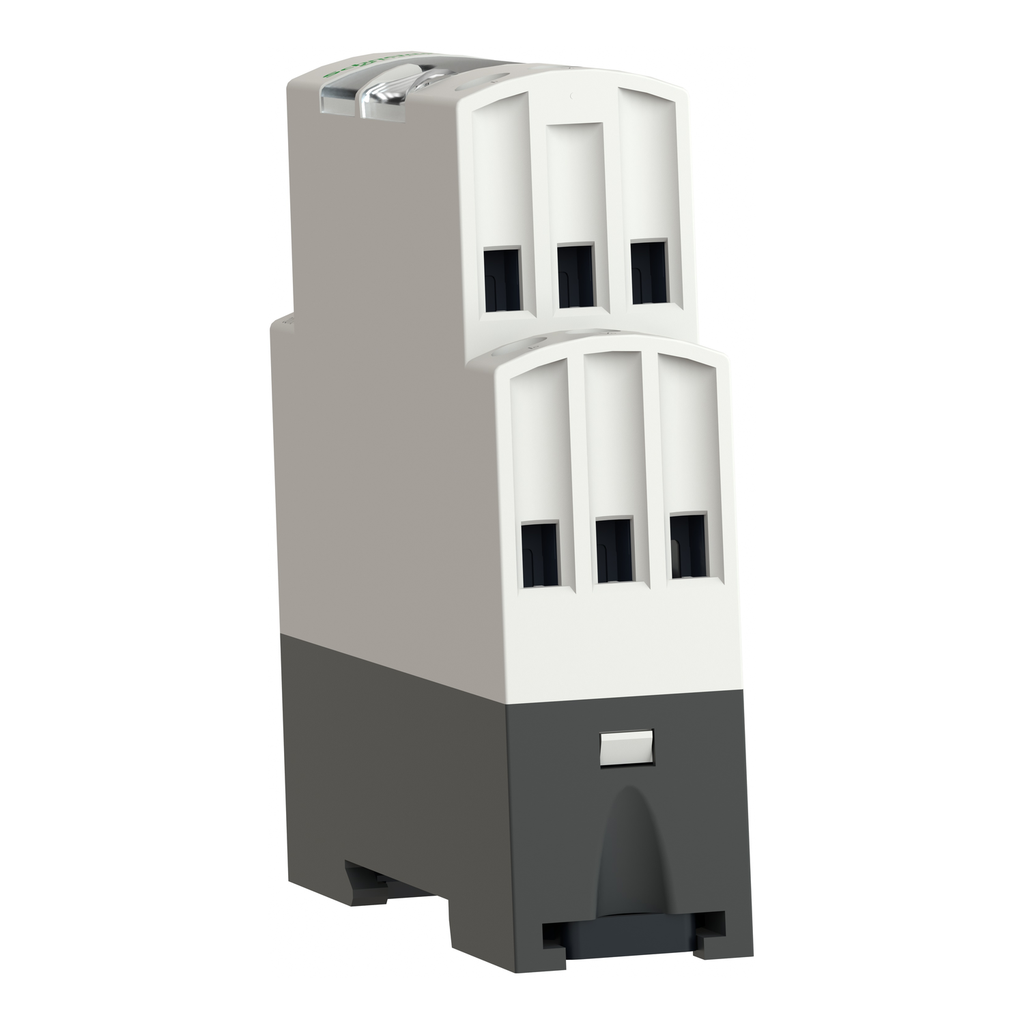

This voltage/current converter is part of the range of Harmony Analog interfaces. This cost effective converter converts a 0 to 10 V signal to a 4 to 20mA signal or vice versa. Its supply voltage is 24V DC, non isolated. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 0 0 0 0 0 0 0

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001780_3D-CAD
• Conformance Attributes
• Product Certifications : GL, CSA, UL
• Standards : IEC 60584-1, IEC 60947-1
• Complementary Attributes
• Ui Rated Insulation Voltage : 2 kV
• Us Rated Supply Voltage : 24 V DC +/- 20 %, non isolated
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Current Consumption : <= 40 mA voltage output, <= 40 mA voltage output, <= 60 mA current output, <= 60 mA current output, <= 40 mA voltage output, <= 40 mA voltage output, <= 60 mA current output, <= 60 mA current output
• Disturbance Radiated Conducted : CISPR 22 group 1 - class B, CISPR 11
• Fire Resistance : 850 °C IEC 60695-2-1, 850 °C UL
• Fixing Mode : by screws (mounting plate), clip-on (35 mm symmetrical DIN rail)
• Protection Type : short-circuit protection on output, overvoltage protection on output (+/- 30 V), reverse polarity protection on output
• Resistance To Electrostatic Discharge : 6 kV in contact)IEC 61000-4-2 level 3, 8 kV in air)IEC 61000-4-2 level 3
• Resistance To Fast Transients : 1 kV IEC 61000-4-4 on input-output), 2 kV IEC 61000-4-4 on power supply)
• Safety Reliability Data : MTTFd = 73.2 years, B10d = 67582
• Carbon Footprint Of The Distribution Phase A4 : 0.0154824399, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.0614499076
• Carbon Footprint Of The Installation Phase A5 : 0.0009326433, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 3 kg CO2 eq., 2.7690203327
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 37 kg CO2 eq., 37.2370909091
• Medium Desc : Isolated analog converter, Harmony Analog, 0...10V or 4...20mA to 0...10V or 4...20mA
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-25
• Global Commercial Status : End of commerc. announced
• Html Descr : Zelio Analog ConverterAnalog Input Type: Current 4-20 mA, Voltage 0-10V DCRated Supply Voltage: 24V DC +/- 20% non isolatedLocal Signaling: LED Green (power ON)Degree of Protection: IP20 terminal block, IP50 housing
• Return Indicator : Y
• Stocking Flag : N
• Manufacturer : Schneider Electric
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2511011EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Local Signalling : LED (green) for power ON
• Marking : CE
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : voltage/current converter
• Range Of Product : Harmony Analog
• Returnability : Yes
• Shock Resistance : 50 gn 11 ms IEC 60068-2-27
• Software Version : EIME v5.5
• Sustainable Packaging : Yes
• Tightening Torque : 0.6-1.1 N.m
• Total Lifecycle Carbon Footprint : 40 kg CO2 eq.
• Vibration Resistance : 5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6
• Pep Code : ENVPEP2511011EN
• Database Version : 2015-04
• Pep Verification Date : 2016-09-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed1-2012 12 11
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : To convert signals emitted by sensors or electrical measurement devices, into standard electrical signals that are compatible with automation platforms and controllers (thermal processes, speed, etc.). during 10 years with a 100% use rate, in compliance with French standard.
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Energy model used: Indonesia (Schneider Electric Batam)
• Energy Model Installation A5 2 : Electricity Mix; AC; < 1kV; EU-27
• Energy Model Use B6 2 : Electricity Mix; AC; < 1kV; EU-27
• Energy Model End Of Life C1 C4 2 : Electricity Mix; AC; < 1kV; EU-27
• Environment Attributes Main
• Ambient Air Temperature For Operation : 0-50 °C mounting side by side, 0-60 °C 2 cm spacing
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 40.0839762326
• Ambient Air Temperature For Storage : -40-85 °C
• Circularity Profile : ENVEOLI2511011EN
• Environmental Disclosure : ENVPEP2511011EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2511011EN
• Pep Verification Date : 2016-09-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed1-2012 12 11
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : voltage/current converter
• Range Of Product : Harmony Analog
• ETIM
• ETIM 8 : EC002048
• ETIM 9 : EC002048
• Output Attributes
• Analogue Output Type : current 4...20 mA <= 500 Ohm by cabling, voltage 0...10 V >= 100 kOhm by cabling
• Analogue Output Voltage : -15...0 V no input or input wire broken, -15...0 V no input or input wire broken, -15...0 V no input or input wire broken, -15...0 V no input or input wire broken
• Analogue Output Current : 4-30 mA no input or input wire broken
• Surge Protection And Filtering Attributes
• Surge Withstand : 0.5 kV 1.2/50 µs IEC 61000-4-5
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Analogue Input Type : current 4...20 mA, voltage 0...10 V DC
• Specifications
• Country of Origin : United States
