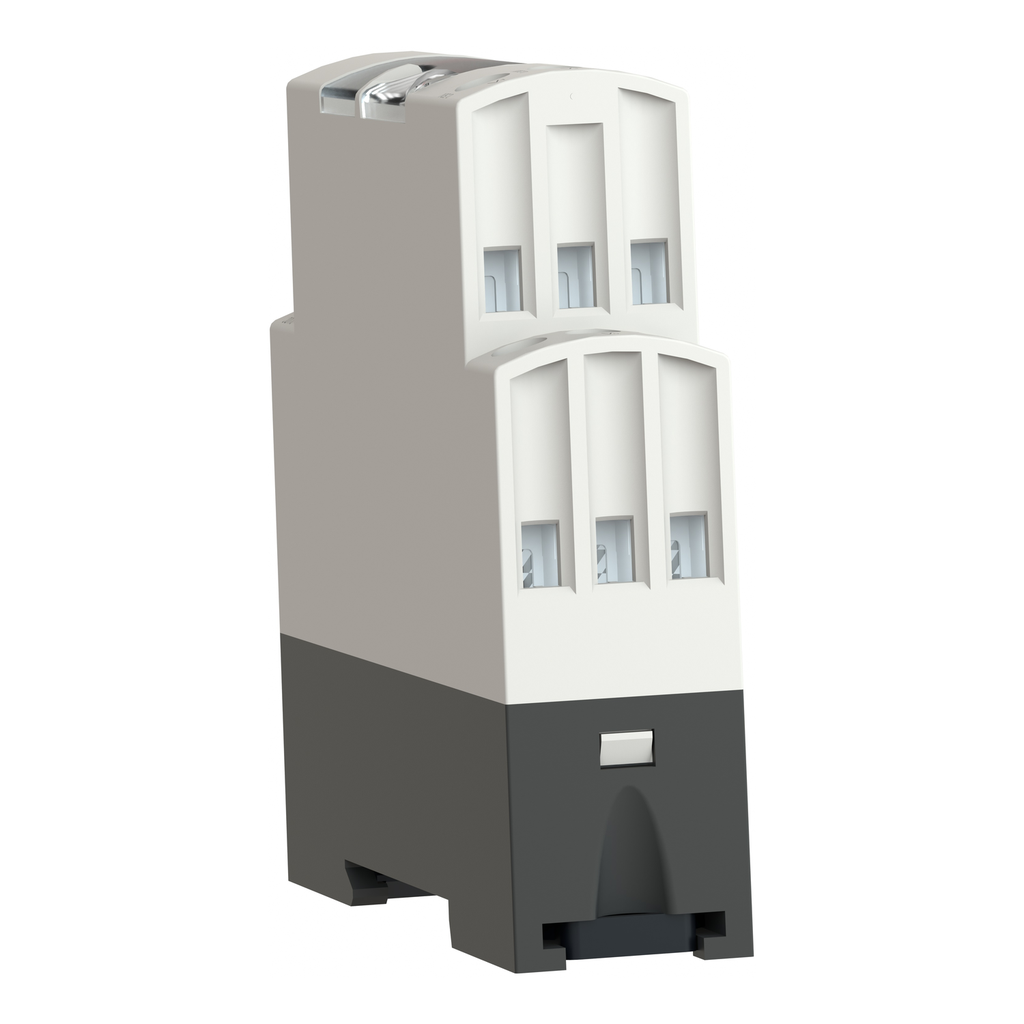

This voltage/current converter is part of the range of interfaces Harmony Analog. This cost effective converter converts a 0…50 V, 0…300 V, 0…500 V AC/DC signal to a switchable 0…10 V, ± 10 V, 0…20 mA or 4…20 mA signal. Its supply voltage is 24V DC, isolated. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. 0 0 It weighs 150g and its dimensions are, 25mm wide, 78mm high, 80mm deep. 0 0 Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 It can be mounted on 35mm DIN rail or fixed by screws on a mounting plate. 0 0 0
- Environment
- Product Certifications : UL || GL || CSA
- Standards : IEC 60584-1 || IEC 60947-1
- Ambient Air Temperature For Operation : 0-50 °C mounting side by side || 0-60 °C 2 cm spacing
- Shock Resistance : 50 gn 11 ms IEC 60068-2-27
- Vibration Resistance : 5 gn 10-100 Hz)IEC 60068-2-6
- Ip Degree Of Protection : IP20 terminal block) || IP50 housing)
- Disturbance Radiated/Conducted : CISPR 11 || CISPR 22 group 1 - class B
- Pollution Degree : 2 IEC 60664-1
- Ambient Air Temperature For Storage : -40-85 °C
- Resistance To Electrostatic Discharge : 6 kV in contact)IEC 61000-4-2 level 3 || 8 kV in air)IEC 61000-4-2 level 3
- Fire Resistance : 850 °C IEC 60695-2-1 || 850 °C UL
- Resistance To Fast Transients : 1 kV IEC 61000-4-4 on input-output) || 2 kV IEC 61000-4-4 on power supply)
- Contractual warranty
- Offer Sustainability
- Rohs Exemption Information : Yes
- Mercury Free : Yes
- Environmental Disclosure : ENVPEP1607005EN
- Sustainable Offer Status : Green Premium product
- Reach Regulation : Reference contains Substances of Very High Concern above the threshold
- California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation : X
- Circularity Profile : ENVEOLI1607005EN
- Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
- Complementary
- Current Consumption : <= 70 mA voltage output || <= 90 mA current output
- Safety Reliability Data : MTTFd = 21.6 years || B10d = 20000
- Measurement Error : +/- 10 % of full scale 20 °C electromagnetic interference of 10 V/m) || +/- 5 % of full scale 20 °C
- Clamping Connection Capacity : 1 x 2.5 mm² || 2 x 1.5 mm²
- [Ui] Rated Insulation Voltage : 2 kV
- Marking : CE
- Analogue Output Voltage : -15...0 V no input or input wire broken
- Net Weight : 0.15 kg
- Fixing Mode : by screws (mounting plate) || clip-on (35 mm symmetrical DIN rail)
- Surge Withstand : 0.5 kV 1.2/50 µs IEC 61000-4-5
- Local Signalling : for power ON LED (green)
- Temperature Coefficient : 200 ppm/°C
- Protection Type : short-circuit protection on output || reverse polarity protection on output || overvoltage protection on output (+/- 30 V)
- Tightening Torque : 0.6-1.1 N.m
- Analogue Output Current : -30-0 mA 0...20 mA no input or input wire broken || 4-30 mA 4...20 mA no input or input wire broken
- Repeat Accuracy : +/- 0.2 % full scale 20 °C || +/- 0.6 % full scale 60 °C
- [Us] Rated Supply Voltage : 24 V DC +/- 20 %, isolated
- Specifications
- Range Of Product : Harmony Analog
- Analogue Output Type : current 0...20 mA <= 500 Ohm switchable || current 4...20 mA <= 500 Ohm switchable || voltage 0...10 V >= 100 kOhm switchable
- Product Or Component Type : voltage/current converter
- Analogue Input Type : voltage 0...300 V AC/DC 50/60 Hz || voltage 0...50 V AC/DC 50/60 Hz || voltage 0...500 V AC/DC 50/60 Hz
