Internal plain door for PanelSeT CRN, PanelSeT S3D and PanelSeT S3X. The product is to be mounted on step slide and front side of the enclosure. The nominal width is 600mm. The nominal height is 1200mm. The door is made of sheet steel (RAL 7035) and has a degree of IP protection IP66. Hinges left or right. pitch 25mm (on step slides) Maximum load is 30 kg/m². The door has 1 locks with 3mm double bar. The door has 1 locks with 3mm double bar.

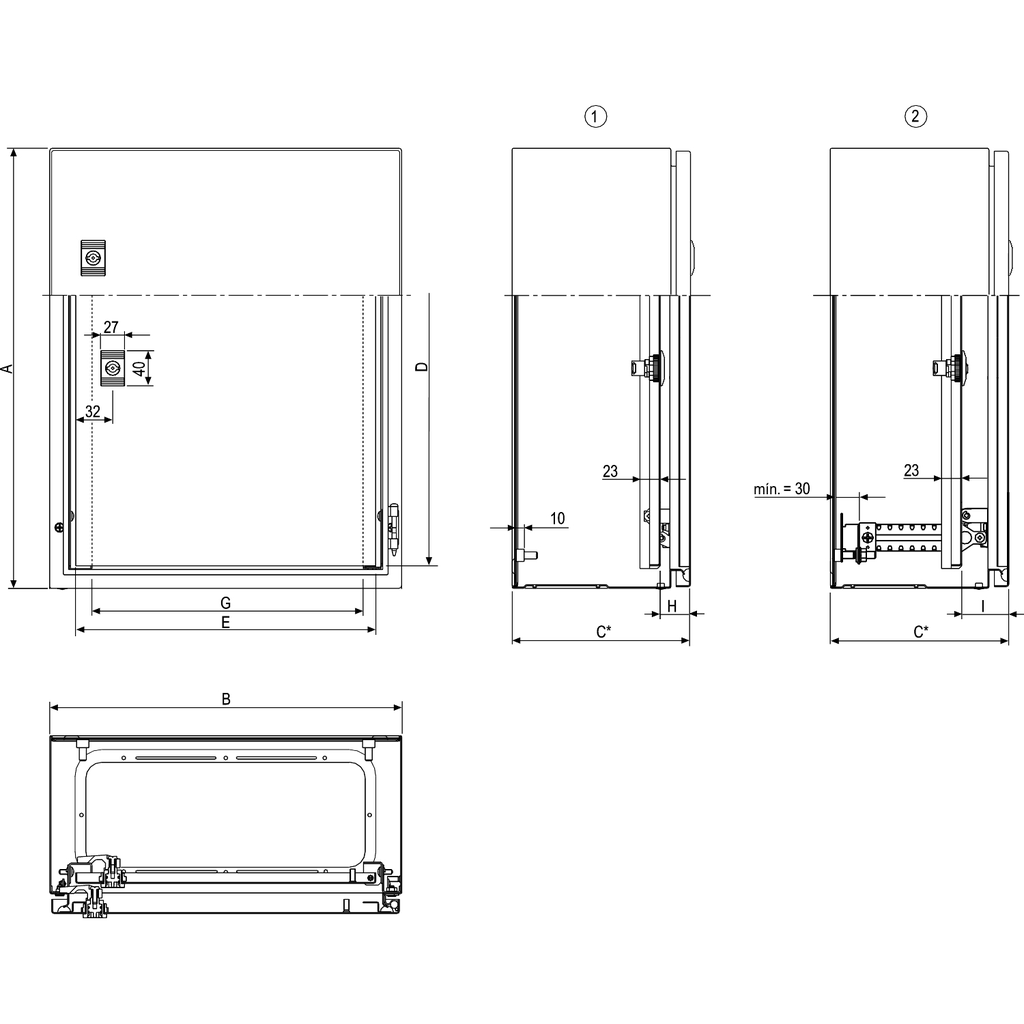

• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=DB300436&p_File_name=DB300436.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=DB300436&p_File_name=DB300436.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0002972_3D-CAD&p_File_name=MCADUE0002972_3D-simplified.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0002972_3D-CAD&p_File_name=MCADUE0002972_2D-back.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0002972_3D-CAD&p_File_name=MCADUE0002972_2D-back.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0002972_3D-CAD&p_File_name=MCADUE0002972_2D-bottom.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0002972_3D-CAD&p_File_name=MCADUE0002972_2D-bottom.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0002972_3D-CAD&p_File_name=MCADUE0002972_2D-front.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0002972_3D-CAD&p_File_name=MCADUE0002972_2D-front.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0002972_3D-CAD&p_File_name=MCADUE0002972_2D-isometric.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0002972_3D-CAD&p_File_name=MCADUE0002972_2D-isometric.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0002972_3D-CAD&p_File_name=MCADUE0002972_2D-left.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0002972_3D-CAD&p_File_name=MCADUE0002972_2D-left.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0002972_3D-CAD&p_File_name=MCADUE0002972_2D-right.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0002972_3D-CAD&p_File_name=MCADUE0002972_2D-right.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0002972_3D-CAD&p_File_name=MCADUE0002972_2D-top.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0002972_3D-CAD&p_File_name=MCADUE0002972_2D-top.dxf
• Range Compatibility
• PanelSeT PanelSeT CRN
• PanelSeT PanelSeT S3D
• PanelSeT PanelSeT S3X
• Material
• door sheet steel
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Device Composition
• 1 door
• 4 fixing brackets
• 2 mounting uprights
• Persona Type Ids
• LC
• OM
• OM8
• PB
• SI
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Color
• all faces Gray RAL 7035)

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-16
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1916
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Coverage : Core product
• Door Opening Side : reversible
• Enclosure Nominal Dimensions : -
• Energy Efficiency Optimized : False
• Number Of Locks : 1
• Package Weight Lbs : 11.098 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : door
• Range : PanelSeT
• Returnability : No
• Sustainable Packaging : No
• Pep Code : ENVPEP100104EN
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : door
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=10176734&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP100104EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP100104EN
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Spain
• Height : 47.24 in
• Width : 23.62 in
