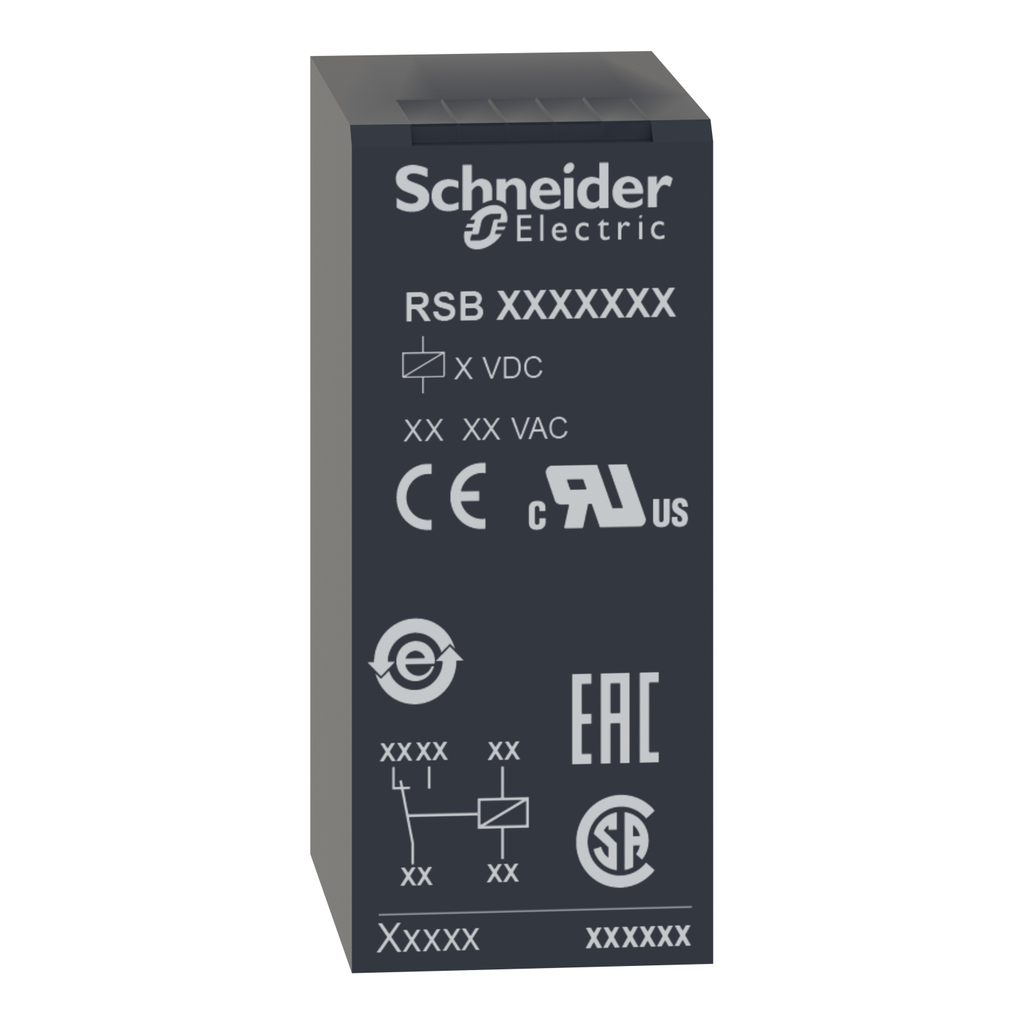

interface plug-in relay, Harmony electromechanical relays, 8A, 2CO, 230V AC

PLUG-IN RELAY 250VAC 8AMP RSB

SQDRSB2A080P7 RSB2A080P7 3389110256611
7.38 / EA
http://schema.org/OutOfStock
Mayer-DDS-interface plug-in relay, Harmony electromechanical relays, 8A, 2CO, 230V AC-2
  • Country of Origin: Austria
  • Warranty Length: 18 mth
This Harmony RSB interfacing plug-in relay has a control coil voltage of 230V AC and has 2 changeover contacts double pole double throw with a rating of 8A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly
QTY
  • Product Description
  • Features
  • Specifications
This Harmony RSB interfacing plug-in relay has a control coil voltage of 230V AC and has 2 changeover contacts double pole double throw with a rating of 8A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly
  • IE Rated Operational Current
    • 4 A AC-1/DC-1) NC IEC
    • 8 A AC-1/DC-1) NO IEC
  • Test Levels
    • level A group mounting
  • IP Degree Of Protection
    • IP40 conforming to IEC 60529
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
  • Carbon Footprint Of The Installation Phase A5
    • 0 kg CO2 eq.
    • 0.0000899962
  • Load Current
    • 8 A 250 V AC
    • 8 A 28 V DC
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.0233806246
    • 0 kg CO2 eq.
  • Operating Time
    • 20 ms operating
    • 20 ms reset
  • Maximum Switching Voltage
    • 300 V DC IEC
  • UC Control Circuit Voltage
    • 230 V AC 50/60 Hz
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.1 kg CO2 eq.
    • 0.1246704908
  • UI Rated Insulation Voltage
    • 400 V IEC 60947
  • Accessories
    • RSZE1S48M
    • RSZE08P
  • Electrical Durability
    • 100000 cycles, 8 A at 250 V, AC-1 NO
    • 100000 cycles, 4 A at 250 V, AC-1 NC
    • 100000 cycles, 4 A at 250 V, AC-
  • Vibration Resistance
    • +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Drop Out Voltage Threshold
    • >= 0.15 Uc AC
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 12 kg CO2 eq.
    • 11.6257230294
  • ITHE Conventional Enclosed Thermal Current
    • 8 A -40-40 °C
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Dielectric Strength
    • 1000 V AC between contacts
    • 2500 V AC between poles
    • 5000 V AC between coil and contact
    • 5000 V AC between coil and cont
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0018307075
    • 0 kg CO2 eq.
  • Average Resistance
    • 33000 Ohm AC 20 °C +/- 10 %
  • Minimum Switching Capacity
    • 120 mW 10 mA, 12 V
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Operating Rate
    • <= 600 cycles/hour under load
    • <= 18000 cycles/hour no-load
  • Shock Resistance
    • 10 gn 11 ms) not operating IEC 60068-2-27
    • 5 gn 11 ms) in operation IEC 60068-2-27
    • 5 gn 1
  • Ambient Air Temperature For Operation
    • -40-70 °C AC)
  • UE Rated Operational Voltage
    • 184...345 V AC 50/60 Hz
  • Average Coil Consumption
    • 0.75 VA AC
  • UIMP Rated Impulse Withstand Voltage
    • 3.6 kV IEC 61000-4-5
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001837_3D-CAD
  • Complementary Attributes
    • Maximum Switching Capacity : 2000 VA/224 W
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 10/2/2025
    • HTML Description : Interface Plug-in Relay - Zelio RSB - 2 C/O - 230 V AC - 8 A
    • Manufacturer : Schneider Electric
    • Manufacturing Carbon Footprint : 0.124670491
    • Distribution Carbon Footprint : 0.001830708
    • Installation Carbon Footprint : 8.99962E-05
    • Use Carbon Footprint : 11.62572303
    • End Of Life Carbon Footprint : 0.023380625
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2403026EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Compatibility Code : RSB
    • Package Weight Lbs : 13.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : plug-in relay
    • Protection Category : RT I
    • Range Of Product : Harmony Electromechanical Relays
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 10
    • Series Name : RSB series
    • Shape Of Pin : flat (PCB type)
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 12 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 11.77569485
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2403026EN
    • Pep Verification Date : 12/7/2023
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 14
    • Functional Unit Description : The main purpose of the RSB Interface plug-in Relay is having at least 2 C/O contacts for switching by a small control signal controlling a larger load current or voltage. It helps to reduce the size of enclosures and increases machine reliability, you c
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 25.249825
    • Energy Model Manufacturing A1 A3 : Energy model used: Electricity Mix; Production mix; Low voltage; CN
    • Energy Model Installation A5 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    • Energy Model Use B6 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    • Energy Model End Of Life C1 C4 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    • Recyclability Potential In : 75
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 0.072697693
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.002417744
    • Acidification Ap Mole Of H Equiv Distribution A4 : 1.17755E-05
    • Acidification Ap Mole Of H Equiv Installation A5 : 5.694E-07
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.070116174
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.00015143
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.000718917
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.014314647
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.001249739
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : 0
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.012347545
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.000717364
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.000728268
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 11.76146653
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 0.123421287
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.001830708
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 8.99962E-05
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 11.61346132
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.022663225
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.031364818
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 11.77569485
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 0.124670491
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.001830708
    • Climate Change Total Kg Co2 Eq Installation A5 : 8.99962E-05
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 11.62572303
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.023380625
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.032092925
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.000934078
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.000932709
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 1E-10
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 6.508E-07
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 7.179E-07
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -1.06325E-05
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 261.1382734
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 2.167456979
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.025506055
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.001254289
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 257.657912
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 1.286144041
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -0.595200765
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 152.3172641
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 6.000726577
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 0.001231982
    • Ecotoxicity Fresh Water Ctue Installation A5 : 6.05667E-05
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 143.7095854
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 2.605659656
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -0.808618228
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 5.133E-07
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 2.49E-08
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 1E-10
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 4.876E-07
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 8E-10
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -1.41E-08
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 4.88372E-05
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 1.7735E-06
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 7E-10
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.000021573
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00002549
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -6.06E-08
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 3.396615076
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 3.142549395
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 0
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.241532603
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.012533078
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.890851498
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 1.922E-07
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 1.908E-07
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 1.4E-09
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -1.333E-07
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 8.54E-08
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 2.39E-08
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 5.95E-08
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 2.1E-09
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.000000009
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 0.24708937
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.000901122
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.180150007
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.066038241
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 13.14754891
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 1.431497769
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 4.4532E-06
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.000000219
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 11.71479396
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.001252505
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.980803059
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.008106688
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.000228328
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 5.5299E-06
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 2.669E-07
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.007847959
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 2.46048E-05
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -2.22144E-05
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.009172722
    • Materials For Recycling Kg Manufacturing A1 A3 : 0
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.009172722
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.013125454
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.002595755
    • Net Use Of Fresh Water M3 Distribution A4 : 1.617E-07
    • Net Use Of Fresh Water M3 Installation A5 : 7.9E-09
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.009950033
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.000579497
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.000874889
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 1.805543722
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.058642065
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 6.41778E-05
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 3.1561E-06
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 1.746576853
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.00025747
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.015873805
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 7.67E-08
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 2.44E-08
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 5.19E-08
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 5E-10
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -7.3E-09
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.026436428
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.000874906
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 1.53259E-05
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 7.386E-07
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.025462719
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 8.27383E-05
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.000121664
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.000330108
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 3.48331E-05
    • Radioactive Waste Disposed Of Kg Distribution A4 : 4.57E-08
    • Radioactive Waste Disposed Of Kg Installation A5 : 2.2E-09
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.000295137
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 8.99E-08
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -7.5784E-06
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.113709975
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.002520089
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 6.06685E-05
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 2.9281E-06
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.110834314
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.000291975
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.000257755
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 261.1382734
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.167456979
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.025506055
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.001254289
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 257.657912
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.286144041
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.595200765
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 314.7505559
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 2.343059273
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.025539962
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.001255985
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 311.0773355
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 1.303365201
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -0.61324283
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 53.60527153
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.175548757
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 3.40363E-05
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 1.6738E-06
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 53.41248285
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.017204207
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.018046526
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.125277247
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.125277247
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 261.0129962
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.042179732
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.025506055
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.001254289
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 257.657912
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.286144041
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.595200765
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 53.60527153
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.175548757
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 3.40363E-05
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 1.6738E-06
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 53.41248285
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.017204207
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.018046526
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : plug-in relay
    • Range Of Product : Harmony Electromechanical Relays
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=648980&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 11.77569485
    • Circularity Profile : ENVEOLI2403026EN
    • Environmental Disclosure : ENVPEP2403026EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2403026EN
    • Pep Verification Date : 12/7/2023
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Austria
  • Overview Attributes
    • Device Presentation : complete product
