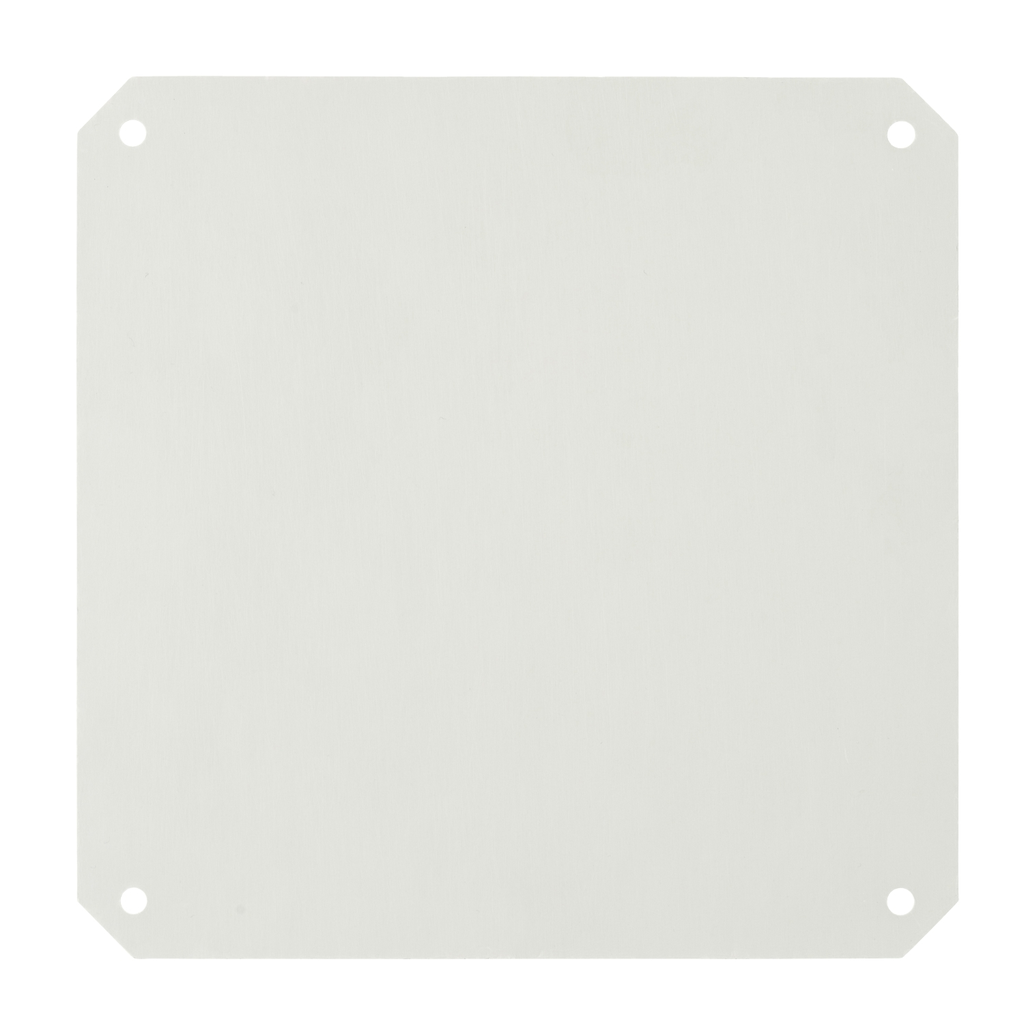

Insulating polyester mounting plate for PLS box 36x36cm

Insulating polyester mounting plate for PLS box 36x36cm

SQDNSYPMA3636G NSYPMA3636G 3606485405377
20.47 / EA
http://schema.org/OutOfStock
Mayer-DDS-Insulating polyester mounting plate for PLS box 36x36cm-1
  • Height: 12.6 in
  • Material: Polyester
  • Warranty Length: 18 mth
  • Width: 12.6 in
Thalassa PLS insulating bakelite mounting plate. For boxes H 360 x W 360 mm. Multi-purpose application. Mounting location on back inserts (fixing by screw type M6). Insulating mounting plate. 150 Kg permanent permissible load. Bakelite. Black RAL 9005.
QTY
  • Product Description
  • Specifications
Thalassa PLS insulating bakelite mounting plate. For boxes H 360 x W 360 mm. Multi-purpose application. Mounting location on back inserts (fixing by screw type M6). Insulating mounting plate. 150 Kg permanent permissible load. Bakelite. Black RAL 9005.
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0001202_3D-CAD&p_File_name=MCADUE0001202_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0001202_3D-CAD&p_File_name=MCADUE0001202_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0001202_3D-CAD&p_File_name=MCADUE0001202_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0001202_3D-CAD&p_File_name=MCADUE0001202_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0001202_3D-CAD&p_File_name=MCADUE0001202_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0001202_3D-CAD&p_File_name=MCADUE0001202_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0001202_3D-CAD&p_File_name=MCADUE0001202_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0001202_3D-CAD&p_File_name=MCADUE0001202_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0001202_3D-CAD&p_File_name=MCADUE0001202_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0001202_3D-CAD&p_File_name=MCADUE0001202_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0001202_3D-CAD&p_File_name=MCADUE0001202_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0001202_3D-CAD&p_File_name=MCADUE0001202_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0001202_3D-CAD&p_File_name=MCADUE0001202_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0001202_3D-CAD&p_File_name=MCADUE0001202_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0001202_3D-CAD&p_File_name=MCADUE0001202_2D-top.dxf
  • Physical Attributes
    • Color : Gray RAL 7035)
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB, SI
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Enclosure Nominal Dimensions : - H: 360 mm W: 360 mm, - H: 360 mm W: 360 mm, - H: 360 mm W: 360 mm, - H: 360 mm W: 360 mm, - H: 360 mm W: 360 mm, - H: 360 mm W: 360 mm
    • Medium Desc : Insulating polyester mounting plate for PLS box 36x36cm
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-12-09
    • Global Commercial Status : Commercialised
    • Return Indicator : N
    • Stocking Flag : Y
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Device Application : multi-purpose
    • Device Composition : 1 mounting plate
    • Fixing Mode : by screws M6 - on back inserts
    • Material : polyester
    • Mounting Location : back inserts
    • Mounting Plate Description : insulating
    • Permanent Permissible Load : 150 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : mounting plate
    • Range : PanelSeT
    • Returnability : No
    • Sustainable Packaging : No
    • Accessory Separate Part Category : mounting accessory
    • Pep Code : ENVPEP1109021EN
    • Height Nominal : real: 320 mm
    • Height Useful : real: 320 mm
    • Width Nominal : real: 320 mm
    • Width Real : real: 320 mm
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Take Back : Nej
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1109021EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1109021EN
  • General Attributes
    • Product Or Component Type : mounting plate
  • ETIM
    • ETIM 8 : EC000213
    • ETIM 9 : EC000213
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Height : 12.6 in
    • Width : 12.6 in
