SQUARE D

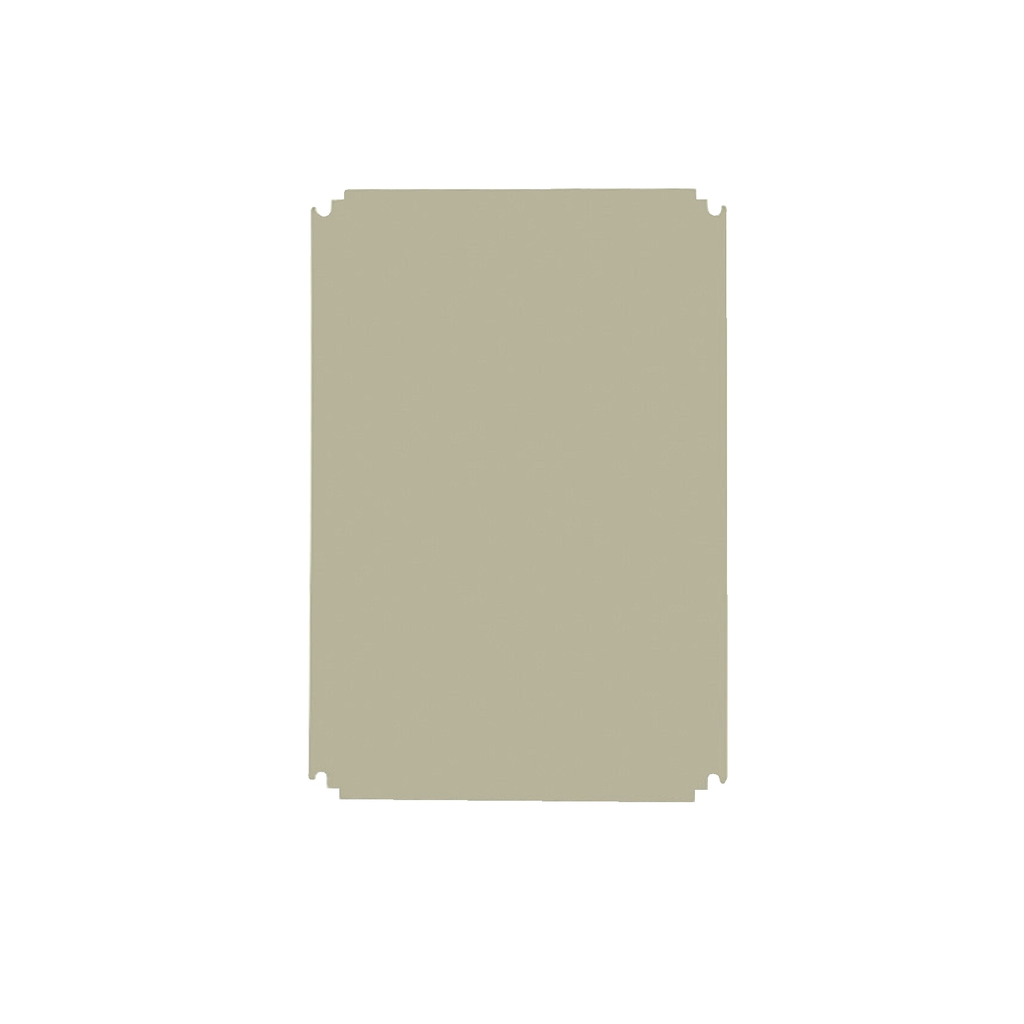

Insulating mounting plate for enclosure H400xW300mm made of polyester

INSULATING MOUNTING PLATE FOR

SQDNSYMPP43 NSYMPP43 3606480183485
16.64 / EA
http://schema.org/OutOfStock
Mayer-DDS-Insulating mounting plate for enclosure H400xW300mm made of polyester-2
  • Country of Origin: Spain
  • Height: 15.75 in
  • Material: Fiberglass Reinforced Polyester
  • Thickness: 4 mm
  • Warranty Length: 18 mth
  • Width: 11.81 in
QTY
  • Features
  • Specifications
  • Range Compatibility
    • PanelSeT S3D
    • PanelSeT CRN
    • PanelSeT PLM
  • Fixing Mode
    • screwed on backstuds M8
    • by fixing element
  • Mounting Location
    • direct fixing on backstuds
    • step slide
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • System Integrator
  • Persona Type Ids
    • LC
    • OM
    • OM8
    • PB
    • SI
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Color
    • Gray RAL 7035)
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • ETIM 10 : EC000213
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1922
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Device Application : multi-purpose
    • Enclosure Nominal Dimensions : -
    • Material : fibreglass reinforced polyester
    • Mounting Plate Description : plain
    • Package Weight Lbs : 666.000 g
    • Permanent Permissible Load : 30 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : mounting plate
    • Quantity Per Set : set of 1
    • Range : PanelSeT
    • Returnability : Yes
    • Sustainable Packaging : No
    • Thickness : 4 mm
    • Accessory Separate Part Category : mounting accessory
  • General Attributes
    • Product Or Component Type : mounting plate
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=10178749&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP100104EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Spain
    • Height : 15.75 in
    • Width : 11.81 in
