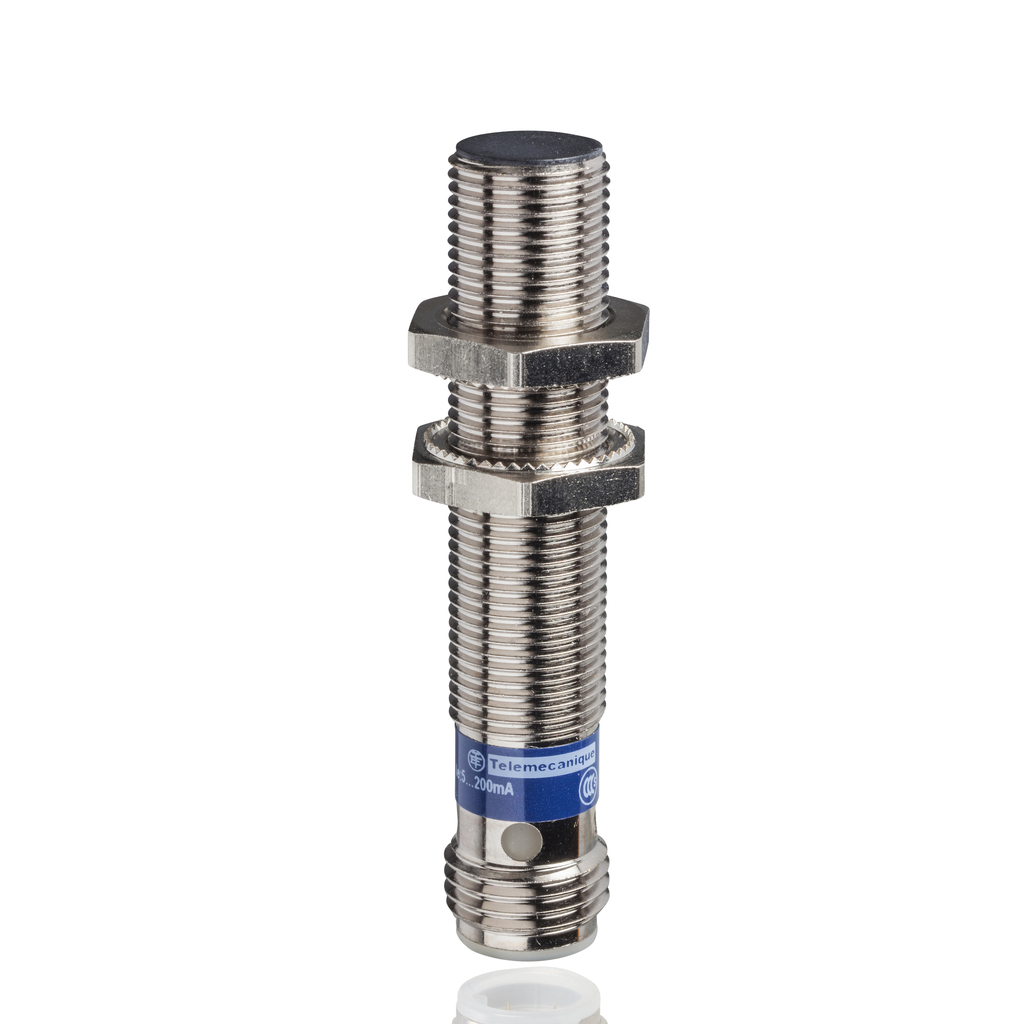

This XS cylindrical (M12 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 48V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. IP65, IP68 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is CCC, CSA, UL certified.
- Specifications
- Electrical Connection : male connector M12, 4 pins
- [Us] Rated Supply Voltage : 12...48 V DC reverse polarity protection
- Discrete Output Type : NPN
- Discrete Output Function : 1 NC
- Type Of Output Signal : discrete
- Range Of Product : Telemecanique Inductive proximity sensors XS
- Sensor Name : XS5
- Material : metal
- Size : 62 mm
- Wiring Technique : 3-wire
- Ip Degree Of Protection : IP67 conforming to IEC 60529 || IP69K conforming to DIN 40050
- Series Name : general purpose
- Body Type : fixed
- [Sn] Nominal Sensing Distance : 2 mm
- Sensor Type : inductive proximity sensor
- Detector Flush Mounting Acceptance : flush mountable
- Switching Capacity In Ma : <= 200 mA DC overload and short-circuit protection
- Sensor Design : cylindrical M12
- Output Circuit Type : DC
- Contractual warranty
- Complementary
- Current Consumption : <= 10 mA no-load
- Maximum Delay Response : 0.1 ms
- Status Led : output state 1 LED yellow)
- Operating Zone : 0-1.6 mm
- Maximum Voltage Drop : <2 V closed)
- Threaded Length : 42 mm
- Marking : CE
- Length : 62 mm
- Net Weight : 0.02 kg
- Switching Frequency : <= 5000 Hz
- Thread Type : M12 x 1
- Differential Travel : 1...15% of Sr
- Maximum Delay Recovery : 0.1 ms
- Maximum Delay First Up : 10 ms
- Supply Voltage Limits : 10-58 V DC
- Detection Face : frontal
- Enclosure Material : Nickel Plated Brass
- Front Material : PPS
- Offer Sustainability
- Rohs Exemption Information : Yes
- Mercury Free : Yes
- Environmental Disclosure : ENVPEP111006EN
- Sustainable Offer Status : Green Premium product
- Reach Regulation : Reference contains Substances of Very High Concern above the threshold
- California Proposition 65 : WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Circularity Profile : ENVEOLI1110045
- Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
- Environment
- Product Certifications : CSA || UL
- Ambient Air Temperature For Operation : -25-70 °C
- Vibration Resistance : 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Shock Resistance : 50 gn 11 ms IEC 60068-2-27
- Ambient Air Temperature For Storage : -40-85 °C
