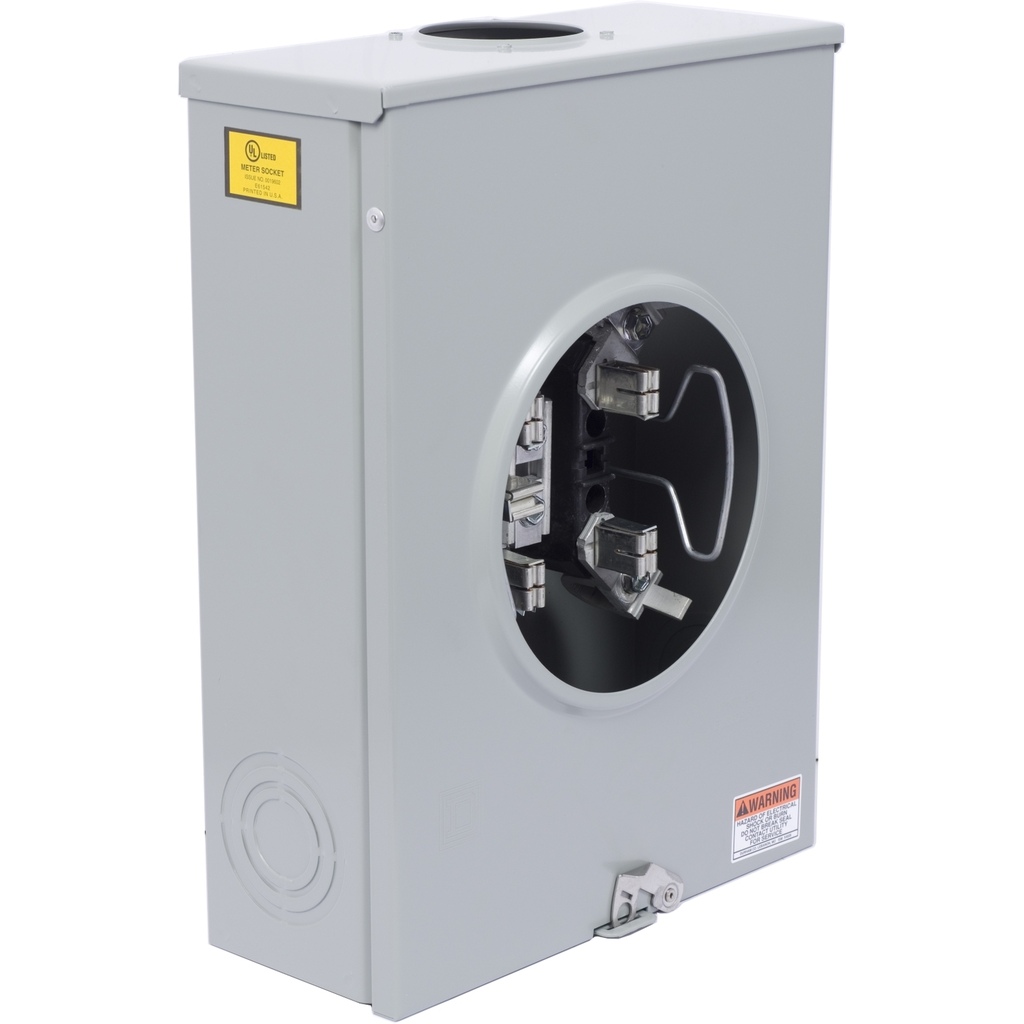

Individual meter socket, ringless socket, horn bypass, 5 jaws no release, OH, UG, 200 A, up to 600 VAC single phase 3W

METER SOCKET RINGLESS HORN 200

SQDUGHTRS213C UGHTRS213C 785901282679
276.83 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Individual meter socket, ringless socket, horn bypass, 5 jaws no release, OH, UG, 200 A, up to 600 VAC single phase 3W-2
  • Country of Origin: USA
  • Enclosure Material: Steel
  • Warranty Length: 18 mth
Individual Meter Sockets are available for single or three phase with a 600 VAC maximum. These individual meter sockets can be with and without horn or lever bypass. The sockets have a 10 kA short circuit current rating as standard but could have a highe
QTY
  • Product Description
  • Features
  • Specifications
Individual Meter Sockets are available for single or three phase with a 600 VAC maximum. These individual meter sockets can be with and without horn or lever bypass. The sockets have a 10 kA short circuit current rating as standard but could have a highe
  • Hub Type
    • A ACP closing plate
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more
  • Ue Rated Operational Voltage
    • <= 600 V AC
  • Electrical Connection
    • lugs 0.5" hex
  • Service Feed Location
    • UG
    • OH
  • Number Of Jaws
    • 5 without jaw release
  • Awg Gauge
    • AWG 8...350 kcmil aluminium/copper)line side
  • Product Certifications
    • ANSI
    • UL Listed
  • Complementary Attributes
    • Meter Socket Rated Current : 200 A
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Legacy Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant with Exemptions
    • Rohs Eur Conformity Date : 2534
    • Rohs Eur Full Compliance Status : Compliant with Exemptions
    • China Rohs In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Wd Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • Enclosure Material : steel
    • Energy Efficiency Optimized : False
    • Meter Socket Type : ringless
    • Package Weight Lbs : 5.851 kg
    • Phase : 1 phase
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Meter Socket
    • Returnability : Yes
    • Sustainable Packaging : No
    • Wiring Configuration : 3-wire
  • General Attributes
    • Phase : 1 phase
    • Product Or Component Type : Meter Socket
  • Output Attributes
    • Bypass Type : horn bypass
  • Environment Attributes
    • Take Back : No
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
    • Nema Degree Of Protection : NEMA 3R
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
