SQUARE D

Meter socket, ringless, 1 phase, 3 wire, 125A, 4 jaws, 600VAC max, Series A, horn bypass, no jaw release

METER SOCKET

SQDUFHTRS101B UFHTRS101B 785901394914
309.51 / EACH
http://schema.org/OutOfStock

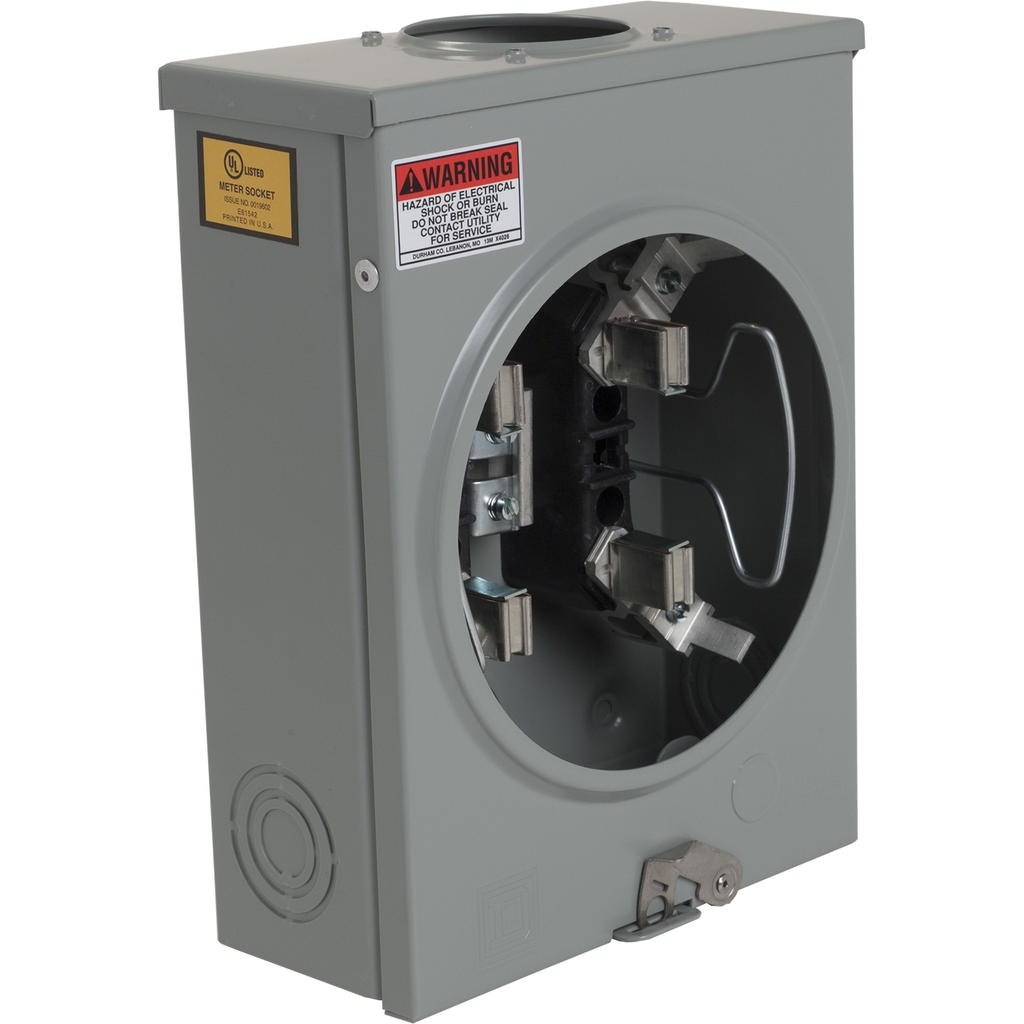

Mayer-DDS-Meter socket, ringless, 1 phase, 3 wire, 125A, 4 jaws, 600VAC max, Series A, horn bypass, no jaw release-1
  • Number of Jaws: 4 Without Jaw Release, 4 Without Jaw Release
  • Warranty Length: 18 mth
Square D individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt-on hub or closing plate. With 125 A, 600 V, 1 phase, 4 jaws, ringless socket your product can provide 10 kA RMS short circuit rating. These units are supplied with a bonded neutral to the NEMA 3R enclosure. Meter sockets are UL Listed. This meter has horn bypass allowing for continued service during meter maintenance or replacement.
QTY
  • Product Description
  • Features
  • Specifications
Square D individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt-on hub or closing plate. With 125 A, 600 V, 1 phase, 4 jaws, ringless socket your product can provide 10 kA RMS short circuit rating. These units are supplied with a bonded neutral to the NEMA 3R enclosure. Meter sockets are UL Listed. This meter has horn bypass allowing for continued service during meter maintenance or replacement.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • UE Rated Operational Voltage : <= 600 V AC, <= 600 V AC
    • Meter Socket Rated Current : 100 A
  • Important Information Attributes
    • Persona Type Ids : EU, EUA, LC, SC
    • Persona Type Names : End User, Consumer, Contractor, Electrician
    • AWG Gauge : AWG 6...350 kcmil 1 aluminium/copper)line side, AWG 6...350 kcmil 1 aluminium/copper)line side, AWG 6...350 kcmil 1 aluminium/copper)line side, AWG 6...350 kcmil 1 aluminium/copper)line side, AWG 8...AWG 2/0 2 aluminium/copper)line side, AWG 8...AWG 2/0 2 aluminium/copper)line side, AWG 8...AWG 2/0 2 aluminium/copper)line side, AWG 8...AWG 2/0 2 aluminium/copper)line side
    • Electrical Connection : lugs slotted, lugs slotted
    • Hub Type : A ACP closing plate, A ACP closing plate
    • Number Of Jaws : 4 without jaw release, 4 without jaw release
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Meter enclosures
    • H And D Enrichment Class 4 : Single-phase individual meter enclosure
    • Energy Efficiency Optimized : False
    • Meter Socket Type : ringless
    • Package Weight Lbs : 3.139 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Meter Socket
    • Returnability : Yes
    • Sustainable Packaging : No
    • Wiring Configuration : 3-wire
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2509019EN
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2509019EN
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2509019EN
  • General Attributes
    • Product Or Component Type : Meter Socket
  • Output Attributes
    • Bypass Type : horn bypass
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
