SQUARE D

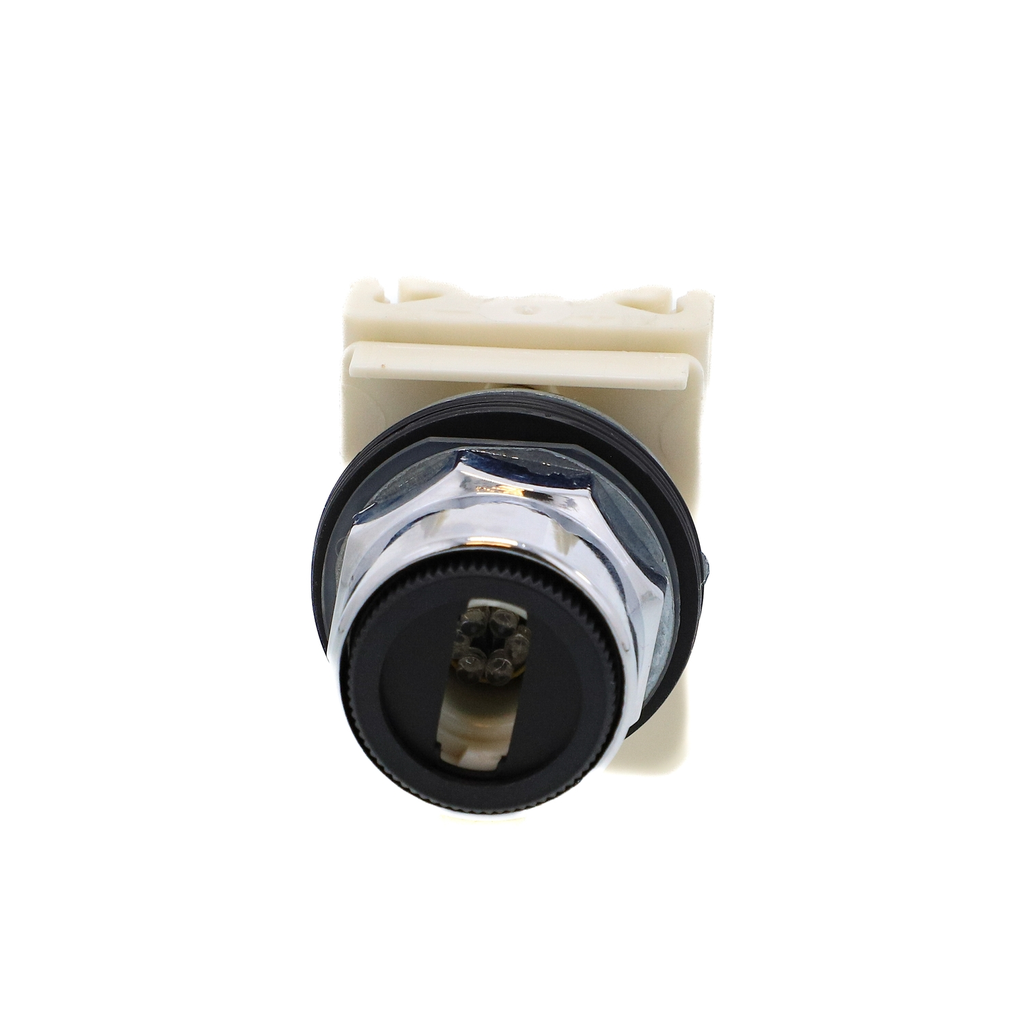

Illuminated selector switch head, Harmony 9001K, metal, without handle, 30mm, 2 positions, stay put, LED yellow, 24-28V

HARMONY 9001K, ILLUMINATED SEL

SQD9001K11J35LY 9001K11J35LY SQD9001K11J35LY
116.70 / EA
http://schema.org/OutOfStock
Mayer-DDS-Illuminated selector switch head, Harmony 9001K, metal, without handle, 30mm, 2 positions, stay put, LED yellow, 24-28V-2
  • Bezel Material: Metal
  • Light Source: LED
  • Warranty Length: 18 mth
This illuminated selector switch with integral LED and standard knob provides a versatile and highly visible interface for controlling your machines It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs
QTY
  • Product Description
  • Features
  • Specifications
This illuminated selector switch with integral LED and standard knob provides a versatile and highly visible interface for controlling your machines It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Light Block Color : yellow
  • Complementary Attributes
    • US Rated Supply Voltage : 24...28 V AC/DC
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : metal
    • Bulb Base : BA 9s
    • Compatibility Code : 9001K
    • Device Short Name : 9001K
    • Electrical Shock Protection Class : class II conforming to IEC 61140
    • Light Block Supply : direct
    • Light Source : LED
    • Mounting Diameter : 30 mm
    • Operator Position Information : 2 positions
    • Operator Profile : yellow standard knob
    • Package Weight Lbs : 154.221 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : head for illuminated selector switch
    • Range Of Product : Harmony 9001K
    • Returnability : Yes
    • Shape Of Signaling Unit Head : round
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Sustainable Packaging : Yes
    • Type Of Operator : maintained
    • Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2503027EN
    • Product Kit Identifier : N
    • Product Manager : PRAVEEN DEEVARPALLI
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • Nema Degree Of Protection : NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • IP Degree Of Protection : IP66 IEC 60529
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : head for illuminated selector switch
    • Range Of Product : Harmony 9001K
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Overview Attributes
    • Device Presentation : basic element
