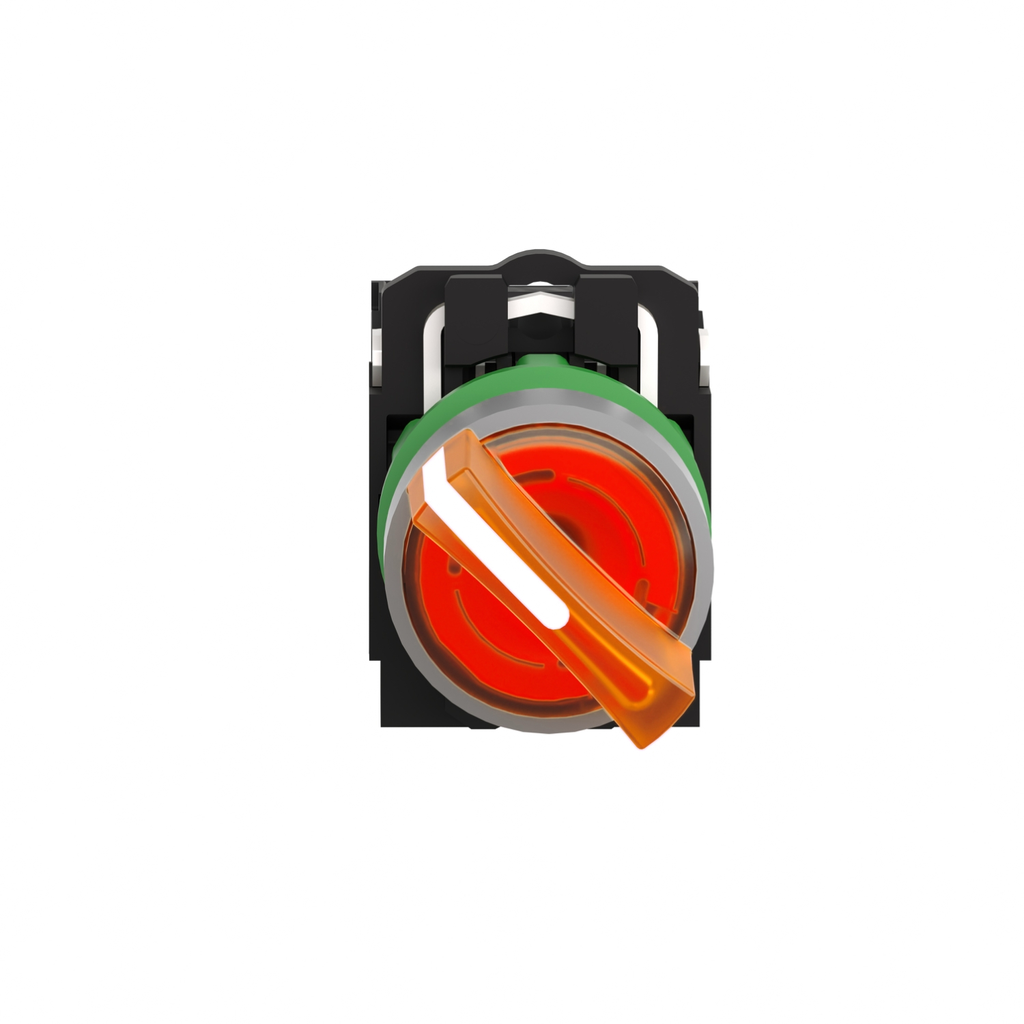

This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help to set up your machines in various operating modes, even in darker rooms with clear visual feedback.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : BV || UL || CSA || DNV || LROS (Lloyds register of shipping)
• Ik Degree Of Protection : IK04 conforming to IEC 50102
• Ambient Air Temperature For Operation : -40-70 °C
• Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3
• Standards : IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-1 || UL 508 || JIS C8201-1
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529
• Ambient Air Temperature For Storage : -40-70 °C
• Nema Degree Of Protection : NEMA 13 || NEMA 4X
• Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
• Electrical Shock Protection Class : class II IEC 60536
• Protective Treatment : TH
• Resistance To Fast Transients : 2 kV IEC 61000-4-4
• Electromagnetic Emission : class B IEC 55011
• Environmental data
• Rohs Exemption Information : Yes
• Mercury Free : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• China Rohs Regulation : X
• Take-Back : No
• Sustainable Packaging : Yes
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Important Information
• Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
• Complementary
• Contacts Usage : standard contacts
• Height : 42 mm
• Terminals Description Iso N°1 : (11-12)NC || (13-14)NO
• Short-Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
• Contacts Material : silver alloy (Ag/Ni)
• Light Source : universal LED
• Positive Opening : with IEC 60947-5-1 appendix K
• [Ith] Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
• Net Weight : 0.516 kg
• [Uimp] Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
• Current Consumption : 14 mA
• Device Presentation : complete product
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
• Service Life : 100000 h at rated voltage and 25 °C
• Surge Withstand : 1 kV IEC 61000-4-5
• [Ui] Rated Insulation Voltage : 600 V 3)IEC 60947-1
• Signalling Type : steady
• Operating Torque : 0.14 N.m NO changing electrical state
• [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
• Supply Voltage Limits : 195-264 V AC
• Mechanical Durability : 1000000 cycles
• Electrical Reliability : λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
• Width : 30 mm
• Depth : 70 mm
• Tightening Torque : 0.8-1.2 N.m IEC 60947-1
• Shape Of Screw Head : cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
• Specifications
• Country of Origin : France
• Width : 30 mm
• Height : 42 mm
• Weight : 0.516 kg
• Range Of Product : Harmony XB5
• Mounting Diameter : 22.5 mm
• Type Of Operator : stay put
• Product Or Component Type : illuminated selector switch
• Shape Of Signaling Unit Head : round
• Head Type : standard
• Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
• Contacts Type And Composition : 1 NO + 1 NC
• Sale Per Indivisible Quantity : 1
• Bezel Material : plastic colour plated grey
• Contact Operation : slow-break
• Operator Profile : orange standard handle
• Operator Position Information : 2 positions 90°
• Device Short Name : XB5
• [Us] Rated Supply Voltage : 230...240 V AC 50/60 Hz
• Bulb Base : integral LED
