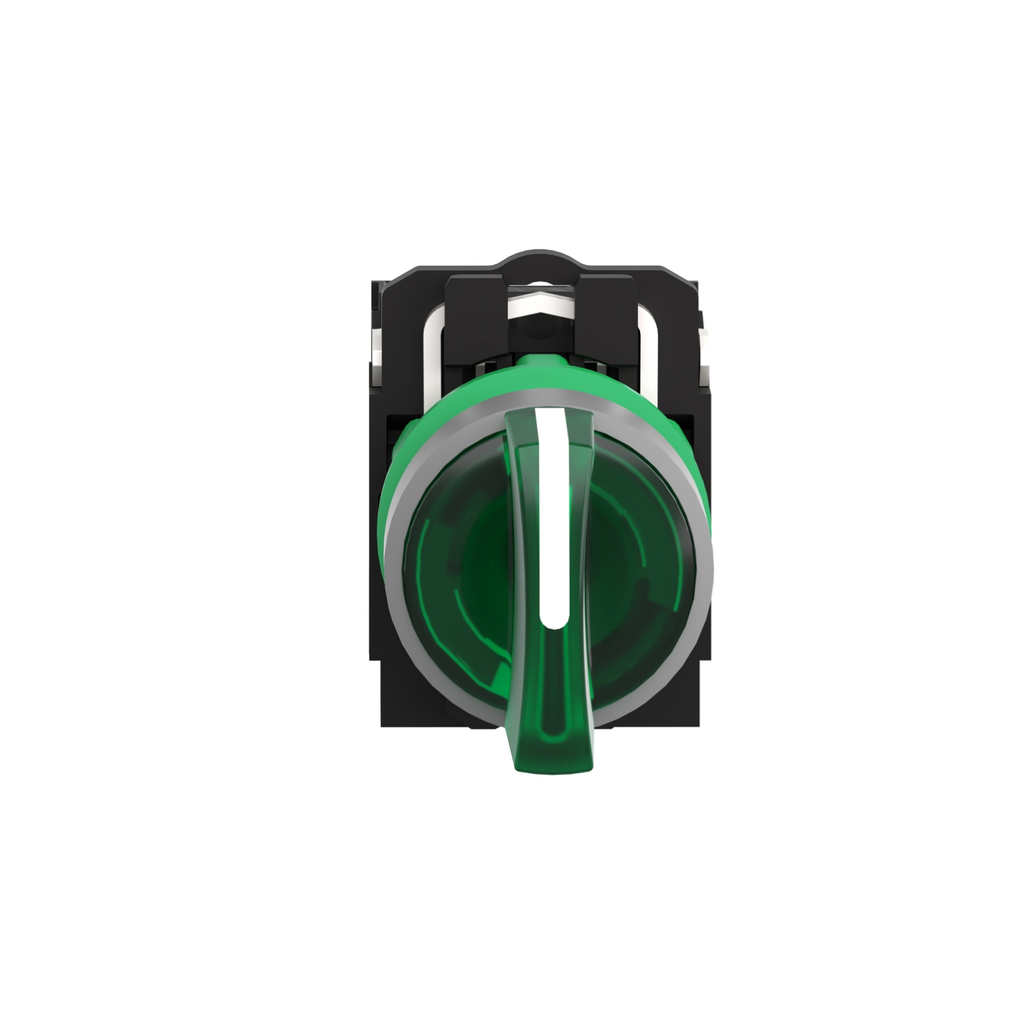

Illuminated selector switch, Harmony XB5, universal LED, grey bezel, green handle, 22mm, 3 positions, stay put, 1NO + 1NC, 24V AC DC

ILLUMINATED SELECTOR SWITCH, H

SQDXB5AK133B5C0 XB5AK133B5C0 3606489758653
50.70 / EA
http://schema.org/OutOfStock
Mayer-DDS-Illuminated selector switch, Harmony XB5, universal LED, grey bezel, green handle, 22mm, 3 positions, stay put, 1NO + 1NC, 24V AC DC-2
  • Bezel Material: Plastic Colour Plated Grey
  • Country of Origin: France
  • Head Type: Standard
This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help to set up your machines in various operating modes, even in darker rooms with clear visual feedback.
QTY
  • Product Description
  • Features
  • Specifications
This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help to set up your machines in various operating modes, even in darker rooms with clear visual feedback.
  • US Rated Supply Voltage
    • 24 V AC/DC 50/60 Hz
  • Connections Terminals
    • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
    • screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
  • IE Rated Operational Current
    • 3 A 240 V, AC-15, A600 IEC 60947-5-1
    • 6 A 120 V, AC-15, A600 IEC 60947-5-1
    • 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
    • 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
    • 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
    • 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
  • ITH Conventional Free Air Thermal Current
    • 10 A IEC 60947-5-1
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=XB5AK133B5_NEW_2024&p_File_name=XB5AK133B5.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=XB5AK133B5_NEW_2024&p_File_name=XB5AK133B5_2D-back.DWG
    • https://download.schneider-electric.com/files?p_Doc_Ref=XB5AK133B5_NEW_2024&p_File_name=XB5AK133B5_2D-back.DXF
    • https://download.schneider-electric.com/files?p_Doc_Ref=XB5AK133B5_NEW_2024&p_File_name=XB5AK133B5_2D-bottom.DWG
    • https://download.schneider-electric.com/files?p_Doc_Ref=XB5AK133B5_NEW_2024&p_File_name=XB5AK133B5_2D-bottom.DXF
    • https://download.schneider-electric.com/files?p_Doc_Ref=XB5AK133B5_NEW_2024&p_File_name=XB5AK133B5_2D-front.DWG
    • https://download.schneider-electric.com/files?p_Doc_Ref=XB5AK133B5_NEW_2024&p_File_name=XB5AK133B5_2D-front.DXF
    • https://download.schneider-electric.com/files?p_Doc_Ref=XB5AK133B5_NEW_2024&p_File_name=XB5AK133B5_2D-isometric.DWG
    • https://download.schneider-electric.com/files?p_Doc_Ref=XB5AK133B5_NEW_2024&p_File_name=XB5AK133B5_2D-isometric.DXF
    • https://download.schneider-electric.com/files?p_Doc_Ref=XB5AK133B5_NEW_2024&p_File_name=XB5AK133B5_2D-left.DWG
    • https://download.schneider-electric.com/files?p_Doc_Ref=XB5AK133B5_NEW_2024&p_File_name=XB5AK133B5_2D-left.DXF
    • https://download.schneider-electric.com/files?p_Doc_Ref=XB5AK133B5_NEW_2024&p_File_name=XB5AK133B5_2D-right.DWG
    • https://download.schneider-electric.com/files?p_Doc_Ref=XB5AK133B5_NEW_2024&p_File_name=XB5AK133B5_2D-right.DXF
    • https://download.schneider-electric.com/files?p_Doc_Ref=XB5AK133B5_NEW_2024&p_File_name=XB5AK133B5_2D-top.DWG
    • https://download.schneider-electric.com/files?p_Doc_Ref=XB5AK133B5_NEW_2024&p_File_name=XB5AK133B5_2D-top.DXF
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0002166_3D-CAD
  • Supply Voltage Limits
    • 19.2-30 V DC
    • 21.6-26.4 V AC
  • IP Degree Of Protection
    • IP66 IEC 60529
    • IP67 IEC 60529
  • Shape Of Screw Head
    • cross Philips no 1
    • cross pozidriv No 1
    • slotted flat Ø 4 mm
    • slotted flat Ø 5.5 mm
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0149809488
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.1 kg CO2 eq.
    • 0.1208265848
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.4 kg CO2 eq.
    • 0.4409882404
  • Electrical Shock Protection Class
    • class II conforming to IEC 60536
  • Nema Degree Of Protection
    • NEMA 13
    • NEMA 4X
  • UI Rated Insulation Voltage
    • 600 V 3)IEC 60947-1
  • Operating Torque
    • 0.14 N.m NO changing electrical state
  • Accessories
    • ZBY2101
    • ZB5AZ905
  • Electrical Durability
    • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • Service Life
    • 100000 h at rated voltage and 25 °C
  • Vibration Resistance
    • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Market Segmentation
    • Commercial
    • Industrial
  • Positive Opening
    • with IEC 60947-5-1 appendix K
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 13 kg CO2 eq.
    • 13.2836216888
  • Resistance To Fast Transients
    • 2 kV IEC 61000-4-4
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Surge Withstand
    • 1 kV IEC 61000-4-5
  • Terminals Description ISO N 1
    • (11-12)NC
    • (13-14)NO
  • Electromagnetic Emission
    • class B IEC 55011
  • Customizable
    • no
    • 1
  • Resistance To Electrostatic Discharge
    • 6 kV on contact (on metal parts) IEC 61000-4-2
    • 8 kV in free air (in insulating parts) IEC 61000-4-2
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0075844147
    • 0 kg CO2 eq.
  • Tightening Torque
    • 0.8-1.2 N.m IEC 60947-1
  • Resistance To High Pressure Washer
    • 7000000 Pa 55 °C 0.1 m
  • Short Circuit Protection
    • 10 A cartridge fuse gG IEC 60947-5-1
  • Resistance To Electromagnetic Fields
    • 10 V/m IEC 61000-4-3
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Operator Profile
    • green standard handle
  • Electrical Reliability
    • λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4
    • λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
  • Shock Resistance
    • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
  • UIMP Rated Impulse Withstand Voltage
    • 6 kV IEC 60947-1
  • Important Information Attributes
    • B2B Bullet Point 1 : Universal LED block to be used for all colors
    • B2B Bullet Point 2 : Improved color intensity and brightness
    • B2B Bullet Point 3 : Quick and easy assembly and disassembly
    • B2B Bullet Point 4 : Robustness to withstand harsh environments
    • B2B Bullet Point 5 : A wide choice of contact blocks for general purposes or specific applications (low current, standard)
    • B2B Bullet Point 6 : Various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-01-12
    • Manufacturing Carbon Footprint : 0.4409882404
    • Distribution Carbon Footprint : 0.0075844147
    • Installation Carbon Footprint : 0.0149809488
    • Use Carbon Footprint : 13.2836216888
    • End Of Life Carbon Footprint : 0.1208265848
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2308010EN
    • Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : plastic colour plated grey
    • Bulb Base : integral LED
    • Compatibility Code : XB5
    • Contacts Usage : standard contacts
    • Device Short Name : XB5
    • GCR Bridge : XB5AKCUST01
    • Head Type : standard
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
    • Mounting Diameter : 22.5 mm
    • Operator Position Information : 3 positions +/- 45°
    • Package Weight Lbs : 58.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : illuminated selector switch
    • Product Repair Index : A
    • Range Of Product : Harmony XB5
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 1
    • Shape Of Signaling Unit Head : round
    • Signalling Type : steady
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 14 kg CO2 eq.
    • Type Of Operator : stay put
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 13.8680018774
    • Relationship Type : Compatible relationship
    • Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
    • Pep Code : ENVPEP2308010EN
    • Pep Verification Date : 2023-08-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 58
    • Functional Unit Description : This illuminated modular selector switch has 2 positions, operates with a stay-put mechanism, a 24V AC universal LED. .This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.436 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1,UL 508.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 22.08
    • Recyclability Potential In : 33
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
    • Energy Model Manufacturing A1 A3 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
    • Energy Model Installation A5 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    • Energy Model Use B6 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    • Energy Model End Of Life C1 C4 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 0.0906237264
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.0031010177
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.0000487832
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.0000594649
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.0872058844
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0002085761
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.0006596602
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.0138902894
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.0043125229
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.0006659049
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.008868327
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.0000435346
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0007619597
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 13.8541487383
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 0.436678147
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.0075844147
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.0143150889
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 13.2747894935
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.1207815942
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.1158776257
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 13.8680018774
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 0.4409882404
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.0075844147
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.0149809488
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 13.2836216888
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.1208265848
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.1166334668
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0003744804
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0003740333
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000003
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000005
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000004444
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000019
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.0000288065
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 261.5402874813
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 6.8897607745
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.105664774
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.1559371994
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 250.8905505984
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 3.4983741351
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -2.300546092
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 384.9712973904
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 186.8097055447
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 0.0051039064
    • Ecotoxicity Fresh Water Ctue Installation A5 : 0.1022364951
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 197.4316813986
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 0.6225700456
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -2.1015079587
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.0000005837
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.0000000452
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.0000000004
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.0000000004
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.0000005366
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.000000001
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.0000000512
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.0000193861
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.0000064465
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 0.0000000028
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0.0000001082
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.0000128043
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.0000000242
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.000000335
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 2.1106819265
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1.7369046511
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.0001770917
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.322720386
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0508797977
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -2.2609544199
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.000000253
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.000000246
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.0000000054
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.0000000016
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000003367
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.0000001006
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000000204
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.0000000001
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.0000000788
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.0000000013
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000000055
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 0.1415110736
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.0101840578
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.1282354461
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.0030915697
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 7.8678465249
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 0.9028700859
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.0000184488
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.0007023383
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 6.9633027523
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.0009528996
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.0174419312
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.0102144994
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.0005398954
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.0000229092
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.0000157485
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.0095837348
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0000522115
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0000768744
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.0245602439
    • Materials For Recycling Kg Manufacturing A1 A3 : 0
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0.0082322784
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.0163279655
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.0197989649
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : -0.0005008167
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0000006697
    • Net Use Of Fresh Water M3 Installation A5 : 0.0001489367
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.0121418597
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0080083155
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.0011997176
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 2.6169925757
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.4403403767
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0002658761
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0487346489
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 2.1035880357
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0240636383
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.2632666232
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000001573
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000000911
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.000000001
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000000647
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000005
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.0000000177
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.0337096062
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.0018852834
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.0000634933
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0000317381
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.0315887479
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.0001403435
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.0002784014
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0003973011
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0001496385
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000001894
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.0000065415
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.0002398262
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000011054
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.0000431063
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.1276138771
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.0057867728
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.0002513441
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.000118865
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.1210331923
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.0004237029
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0008285277
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 261.5402874813
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 6.8897607745
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.105664774
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.1559371994
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 250.8905505984
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 3.4983741351
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -2.300546092
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 300.3235297075
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 7.0874491917
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.1058087437
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.1671218468
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 289.4631561309
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 3.4999937944
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -2.3698315182
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 38.7784399709
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.1976614229
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0001410093
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0111882466
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 38.5677879715
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0016613205
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.0692872258
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.7953786962
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.7953786962
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 260.7449447775
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 6.0944180707
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.105664774
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.1559371994
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 250.8905505984
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 3.4983741351
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -2.300546092
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.1633336436
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.1633336436
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.1307335009
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 38.6151018282
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.0343232803
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0001410093
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0111882466
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 38.5677879715
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0016613205
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0.0614489745
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.0000301248
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.0000301248
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
  • General Attributes
    • Product Or Component Type : illuminated selector switch
    • Range Of Product : Harmony XB5
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=495889495&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 13.8680018774
    • Circularity Profile : ENVEOLI2308010EN
    • Environmental Disclosure : ENVPEP2308010EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2308010EN
    • Pep Verification Date : 2023-08-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • Specifications
    • Country of Origin : France
  • Overview Attributes
    • Device Presentation : complete product
