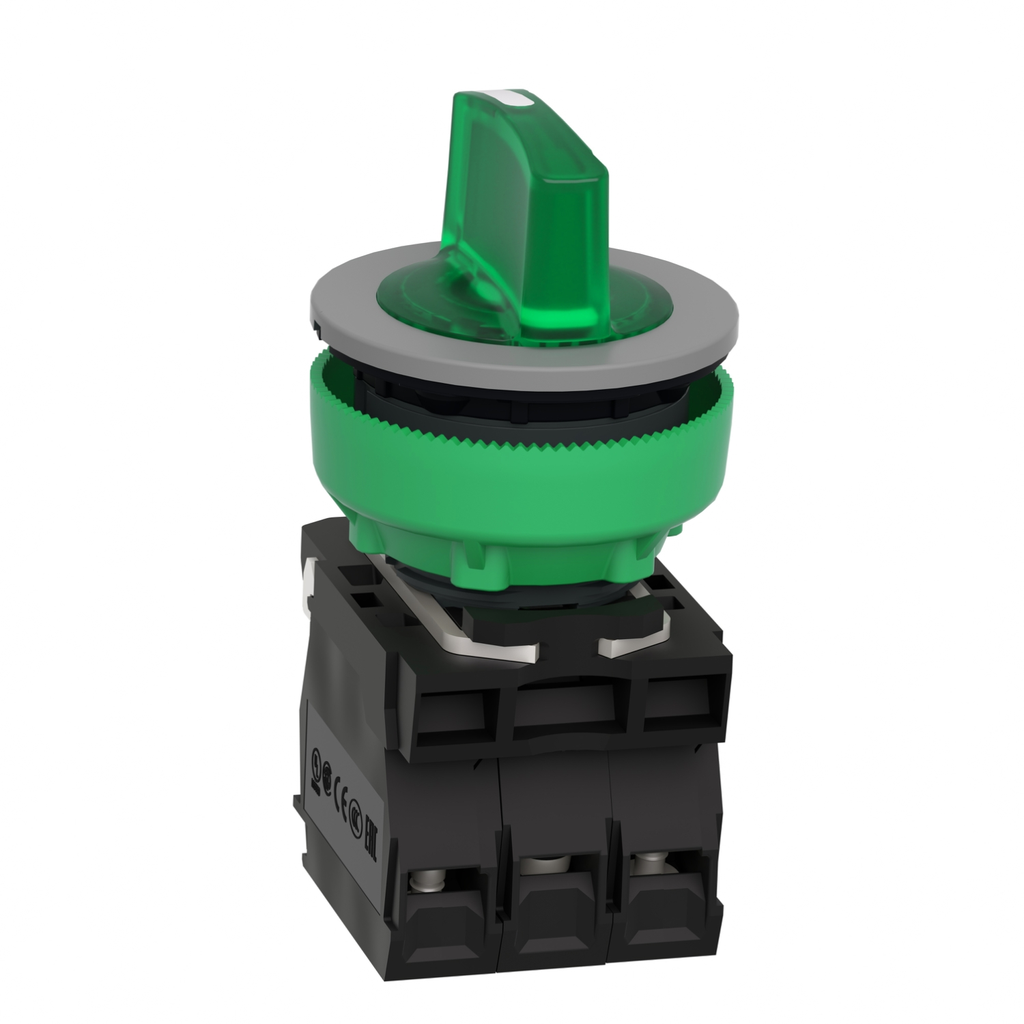

Illuminated selector switch, Harmony XB5, grey bezel, green handle, universal LED, 3 positions, 1NO + 1NC, 24V AC DC

ILLUMINATED SELECTOR SWITCH, H

SQDXB5FK133B5C0 XB5FK133B5C0 3606489760892
51.92 / EA
http://schema.org/OutOfStock
Mayer-DDS-Illuminated selector switch, Harmony XB5, grey bezel, green handle, universal LED, 3 positions, 1NO + 1NC, 24V AC DC-2
  • Bezel Material: Plastic Colour Plated Grey
  • Country of Origin: France
  • Head Type: Built-in-flush
This flush mounted illuminated selector switch is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 24 V AC/DC. The source of light is a universal LED. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this selector switch addresses the market demands for ergonomic and aesthetics. It has a green standard handle with 3 positions ± 45 degree stay put. The contact type is 1NO and 1NC slow break and the connection terminal is screw clamp. The shape of the head is round. The bezel is plastic color plated grey and the fixing collar is plastic. The weight of this selector switch is 56 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, type 13, and 4X, IK03, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this selector switch. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
QTY
  • Product Description
  • Features
  • Specifications
This flush mounted illuminated selector switch is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 24 V AC/DC. The source of light is a universal LED. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this selector switch addresses the market demands for ergonomic and aesthetics. It has a green standard handle with 3 positions ± 45 degree stay put. The contact type is 1NO and 1NC slow break and the connection terminal is screw clamp. The shape of the head is round. The bezel is plastic color plated grey and the fixing collar is plastic. The weight of this selector switch is 56 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, type 13, and 4X, IK03, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this selector switch. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
  • US Rated Supply Voltage
    • 24 V AC/DC 50/60 Hz
  • Type Of Operator
    • stay put
    • stay put handle
  • Connections Terminals
    • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
    • screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
  • IE Rated Operational Current
    • 3 A 240 V, AC-15, A600 IEC 60947-5-1
    • 6 A 120 V, AC-15, A600 IEC 60947-5-1
    • 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
    • 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
    • 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
    • 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
  • ITH Conventional Free Air Thermal Current
    • 10 A IEC 60947-5-1
  • Supply Voltage Limits
    • 21.6-26.4 V AC
  • IP Degree Of Protection
    • IP66 IEC 60529
    • IP67
  • Shape Of Screw Head
    • cross Philips no 1
    • cross pozidriv No 1
    • slotted flat Ø 4 mm
    • slotted flat Ø 5.5 mm
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Electrical Shock Protection Class
    • class II conforming to IEC 60536
  • Nema Degree Of Protection
    • NEMA 13
    • NEMA 4X
  • UI Rated Insulation Voltage
    • 600 V 3)IEC 60947-1
  • Electrical Durability
    • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • Vibration Resistance
    • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Positive Opening
    • with NC contact IEC 60947-5-1 appendix K
  • Terminals Description ISO N 1
    • (21-22)NC
    • (13-14)NO
  • Customizable
    • no
    • 1
  • Tightening Torque
    • 0.8-1.2 N.m IEC 60947-1
  • Resistance To High Pressure Washer
    • 7000000 Pa 55 °C 0.1 m
  • Short Circuit Protection
    • 10 A cartridge fuse gG IEC 60947-5-1
  • Operator Profile
    • green standard handle, unmarked
    • green handle, unmarked
  • Electrical Reliability
    • λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4
    • λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
  • Shock Resistance
    • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
  • UIMP Rated Impulse Withstand Voltage
    • 6 kV IEC 60947-1
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0002193_3D-CAD
  • Important Information Attributes
    • B2B Bullet Point 1 : Quick and easy assembly and disassembly
    • B2B Bullet Point 2 : Robustness to withstand harsh environments
    • B2B Bullet Point 3 : Various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
    • B2B Bullet Point 4 : Excellent mechanical connection with operator head
    • B2B Bullet Point 5 : A wide choice of contact blocks for general purposes or specific applications
    • B2B Bullet Point 6 : Large set of accessories to customize your panels
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-01-12
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2308010EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Bezel Material : plastic colour plated grey
    • Bulb Base : integral LED
    • Compatibility Code : XB5
    • Contacts Usage : standard contacts
    • Device Short Name : XB5F
    • GCR Bridge : XB5FKCUST02
    • Head Type : built-in-flush
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
    • Mounting Diameter : 30.5 mm
    • Operator Position Information : 3 positions +/- 45°
    • Package Weight Lbs : 57.0 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : illuminated selector switch
    • Range Of Product : Harmony XB5
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 1
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Spare part relationship
    • Pep Code : ENVPEP2308010EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : illuminated selector switch
    • Range Of Product : Harmony XB5
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=495749224&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2308010EN
    • Environmental Disclosure : ENVPEP2308010EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2308010EN
  • Specifications
    • Country of Origin : France
  • Overview Attributes
    • Device Presentation : complete product
