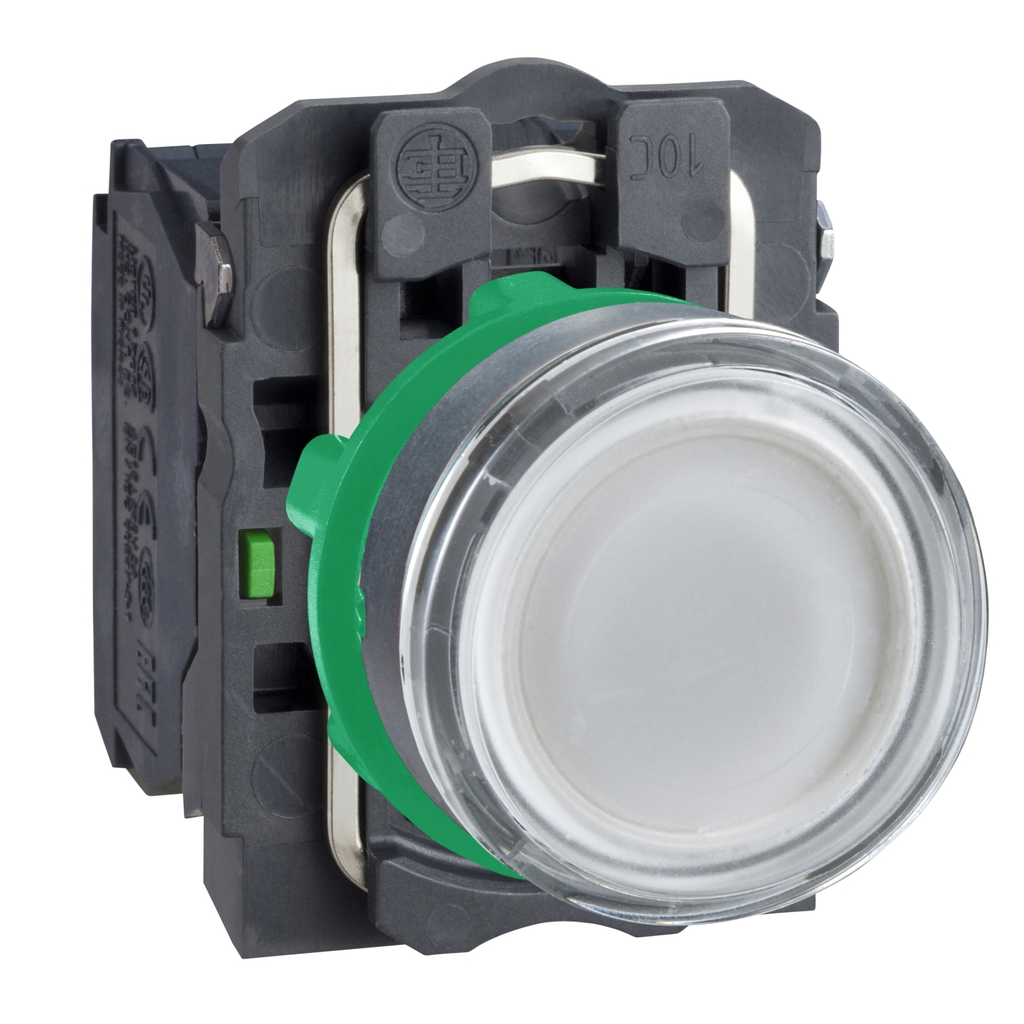

This Harmony XB5, plain lens illuminated modular white push button operates with a spring return / impulse mechanism, is supplied with 250V AC/DC and uses screw-clamp terminals. This illuminated push button with integral transformer provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : CSA || LROS (Lloyds register of shipping) || BV || UL Listed || DNV
• Ik Degree Of Protection : IK05 conforming to IEC 50102
• Ambient Air Temperature For Operation : -40-55 °C
• Standards : UL 508 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Ip Degree Of Protection : IP66 IEC 60529 || IP69 || IP69K || IP67
• Ambient Air Temperature For Storage : -40-70 °C
• Overvoltage Category : class II conforming to IEC 60536
• Nema Degree Of Protection : NEMA 13 || NEMA 4X
• Protective Treatment : TH
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP2404014EN
• Packaging Without Single Use Plastic : Yes
• Scip Number : 425812e5-011f-4fb4-ad1b-fc9cf9865300
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : ENVEOLI2404014EN
• Take-Back : No
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 55.6165844575
• Complementary
• Contacts Usage : standard contacts
• Height : 42 mm
• Terminals Description Iso N°1 : (13-14)NO || (21-22)NC
• Operating Force : 3.5 N NC changing electrical state || 3.8 N
• Short-Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
• Operating Travel : 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
• Contacts Material : silver alloy (Ag/Ni)
• Positive Opening : with IEC 60947-5-1 appendix K
• [Ith] Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
• Net Weight : 0.057 kg
• [Uimp] Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
• Device Presentation : complete product
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
• [Ui] Rated Insulation Voltage : 600 V 3)IEC 60947-1
• Signalling Type : steady
• [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
• Mechanical Durability : 10000000 cycles
• Electrical Reliability : λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
• Width : 30 mm
• Depth : 54 mm
• Tightening Torque : 0.8-1.2 N.m IEC 60947-1
• Shape Of Screw Head : cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
• Specifications
• Country of Origin : Mexico
• Width : 30 mm
• Height : 42 mm
• Weight : 0.057 kg
• [Us] Rated Supply Voltage : <= 250 V
• Operator Additional Information : with plain lens
• Range Of Product : Harmony XB5
• Light Source : bulb not included
• Light Block Supply : direct <2.4 W
• Mounting Diameter : 22.5 mm
• Type Of Operator : spring return
• Product Or Component Type : illuminated push-button
• Shape Of Signaling Unit Head : round
• Cap/Operator Or Lens Colour : white
• Fixing Collar Material : plastic
• Head Type : standard
• Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
• Contacts Type And Composition : 1 NO + 1 NC
• Sale Per Indivisible Quantity : 1
• Bezel Material : dark grey plastic
• Contact Operation : slow-break
• Operator Profile : white flush, unmarked
• Device Short Name : XB5
• Bulb Base : BA 9s
