Bezel Material:
Plastic
-
Certifications:
BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
-
Contact Material:
Silver Alloy
-
Depth:
101 mm
-
Height:
42 mm
-
Net Weight:
0.129 kg
-
Standard:
CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
-
Storage Temperature:
-40-70 °C
-
Warranty Length:
18 mth
-
Width:
30 mm

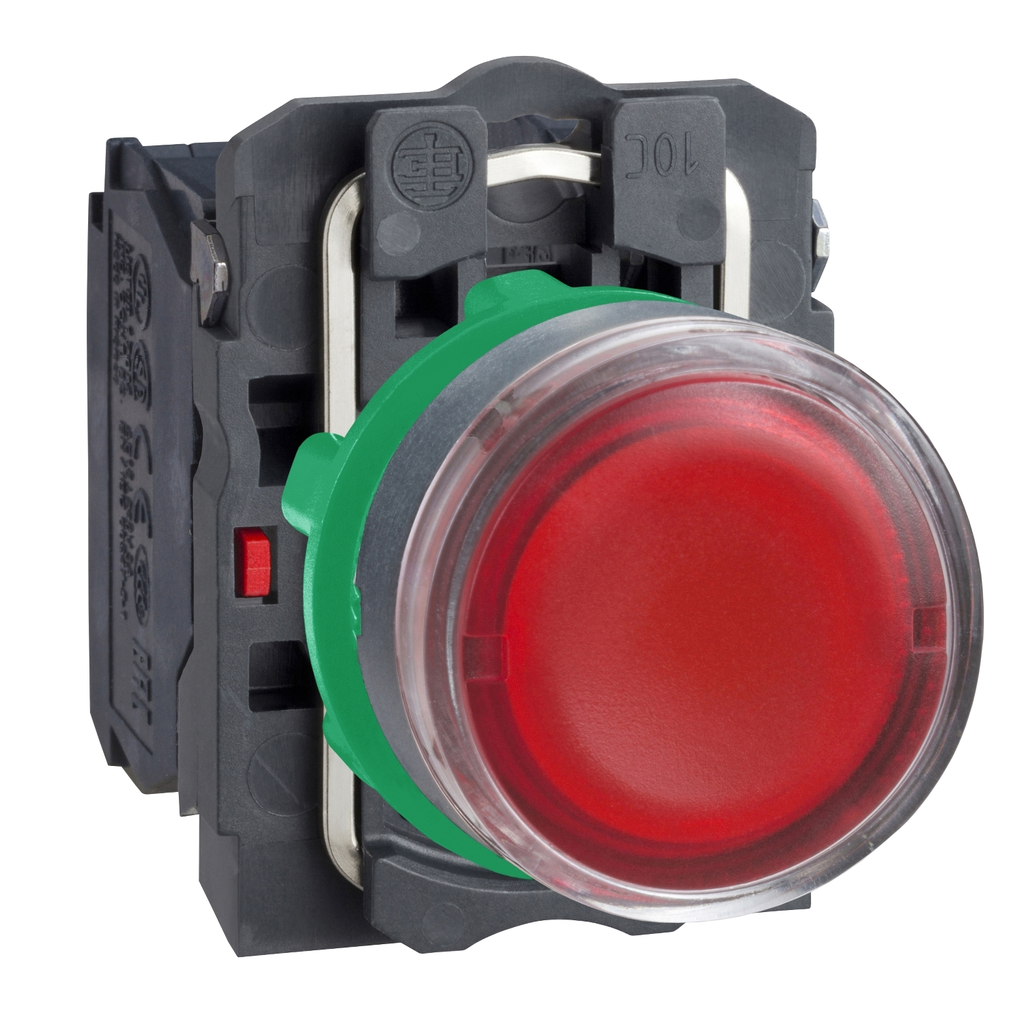

This Harmony XB5, plain lens illuminated modular red push button operates with a spring return / impulse mechanism, is supplied with 220V to 240V AC/DC, uses an integral transformer and has screw-clamp terminals. This illuminated push button with integral transformer provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
