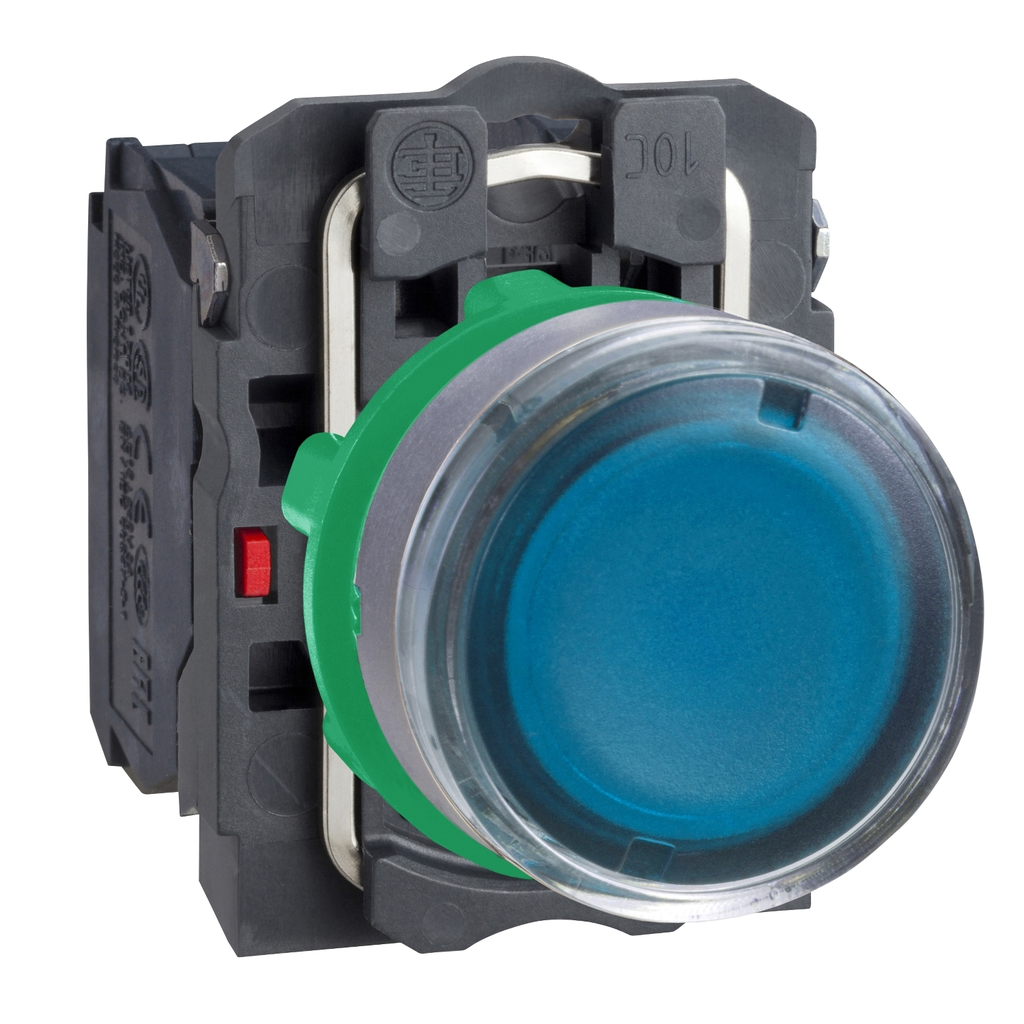

This illuminated push-button provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clear

• Connections Terminals
• screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
• screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60
• Overvoltage Category
• class II conforming to IEC 60536
• Uimp Rated Impulse Withstand Voltage
• 6 kV IEC 60947-1
• Supply Voltage Limits
• 100-132 V AC
• Shape Of Screw Head
• cross Philips no 1
• cross pozidriv No 1
• slotted flat Ø 4 mm
• slotted flat Ø 5.5 mm
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Standards
• IEC 60947-5-1
• CSA C22.2 No 14
• IEC 60947-5-4
• JIS C8201-5-1
• IEC 60947-1
• UL 508
• JIS C8201-1
• Ui Rated Insulation Voltage
• 600 V 3)IEC 60947-1
• Ip Degree Of Protection
• IP66 IEC 60529
• IP67
• Terminals Description Iso N 1
• (13-14)NO
• (21-22)NC
• Nema Degree Of Protection
• NEMA 13
• NEMA 4X
• Accessories
• ZB5AZ905
• ZBE101
• ZBE102
• ZBYP2101C0
• ZBYLEG503001
• Electrical Durability
• 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
• 1000000 cycles, AC-15, 2 A 230 V 36
• Service Life
• 100000 h at rated voltage and 25 °C
• Operating Force
• 3.5 N NC changing electrical state
• 3.8 N
• Vibration Resistance
• 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Positive Opening
• with IEC 60947-5-1 appendix K
• Resistance To Fast Transients
• 2 kV IEC 61000-4-4
• Surge Withstand
• 1 kV IEC 61000-4-5
• Us Rated Supply Voltage
• 110...120 V AC 50/60 Hz
• Electromagnetic Emission
• class B IEC 55011
• Customizable
• no
• 1
• Resistance To Electrostatic Discharge
• 6 kV on contact (on metal parts) IEC 61000-4-2
• 8 kV in free air (in insulating parts) IEC 61000-4-2
• 8 kV in
• Tightening Torque
• 0.8-1.2 N.m IEC 60947-1
• Ith Conventional Free Air Thermal Current
• 10 A IEC 60947-5-1
• Resistance To High Pressure Washer
• 7000000 Pa 55 °C 0.1 m
• Short Circuit Protection
• 10 A cartridge fuse gG IEC 60947-5-1
• Ie Rated Operational Current
• 3 A 240 V, AC-15, A600 IEC 60947-5-1
• 6 A 120 V, AC-15, A600 IEC 60947-5-1
• 6 A 120 V, AC-15, A600 IEC 60947
• Resistance To Electromagnetic Fields
• 10 V/m IEC 61000-4-3
• Operating Travel
• 1.5 mm NC changing electrical state)
• 2.6 mm NO changing electrical state)
• 4.3 mm total travel)
• Operator Profile
• blue flush, unmarked
• Electrical Reliability
• λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4
• λ < 10exp(-6) 5 V,
• Shock Resistance
• 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
• 50 gn 11 ms) half sine wave ac
• Product Certifications
• CSA
• LROS (Lloyds register of shipping)
• BV
• UL Listed
• DNV

• Physical Attributes
• Cap Operator Or Lens Color : blue
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Quick and easy assembly and disassembly
• B2B Bullet Point 2 : Robustness to withstand harsh environments
• B2B Bullet Point 3 : With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
• B2B Bullet Point 4 : A wide choice of contact blocks for general purposes or specific applications
• B2B Bullet Point 5 : Excellent mechanical connection with operator head
• B2B Bullet Point 6 : A large set of accessories to customize your panels
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-13
• ETIM 10 : EC001028
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2404014EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1930
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Bezel Material : plastic colour plated grey
• Bulb Base : integral LED
• Cap Operator Or Lens Color : blue
• Compatibility Code : XB5
• Contact Operation : slow-break
• Contacts Material : silver alloy (Ag/Ni)
• Contacts Type And Composition : 1 NO + 1 NC
• Contacts Usage : standard contacts
• Current Consumption : 14 mA
• Device Short Name : XB5
• Fixing Collar Material : plastic
• Gcr Bridge : XB5AWCUST08
• Head Type : standard
• Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
• Light Source : universal LED
• Mechanical Durability : 10000000 cycles
• Mounting Diameter : 22.5 mm
• Operator Additional Information : with plain lens
• Package Weight Lbs : 53.0 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : illuminated push-button
• Protective Treatment : TH
• Range Of Product : Harmony XB5
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Shape Of Signaling Unit Head : round
• Signalling Type : steady
• Sustainable Packaging : No
• Type Of Operator : spring return
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : illuminated push-button
• Range Of Product : Harmony XB5
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=495889559&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2404014EN
• Environmental Disclosure : ENVPEP2404014EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Specifications
• Country of Origin : France
• Height : 1.65 in
• Width : 1.18 in
• Depth : 2.24 in
• Overview Attributes
• Device Presentation : complete product
