SQUARE D

Illuminated push-button, Harmony 9001K, metal, projecting, blue, 30mm, spring return, LED blue, 24-28V, 1 NO

HARMONY 9001K, ILLUMINATED PUS

SQD9001K2L35LLLH5 9001K2L35LLLH5 SQD9001K2L35LLLH5
211.31 / EA
http://schema.org/OutOfStock

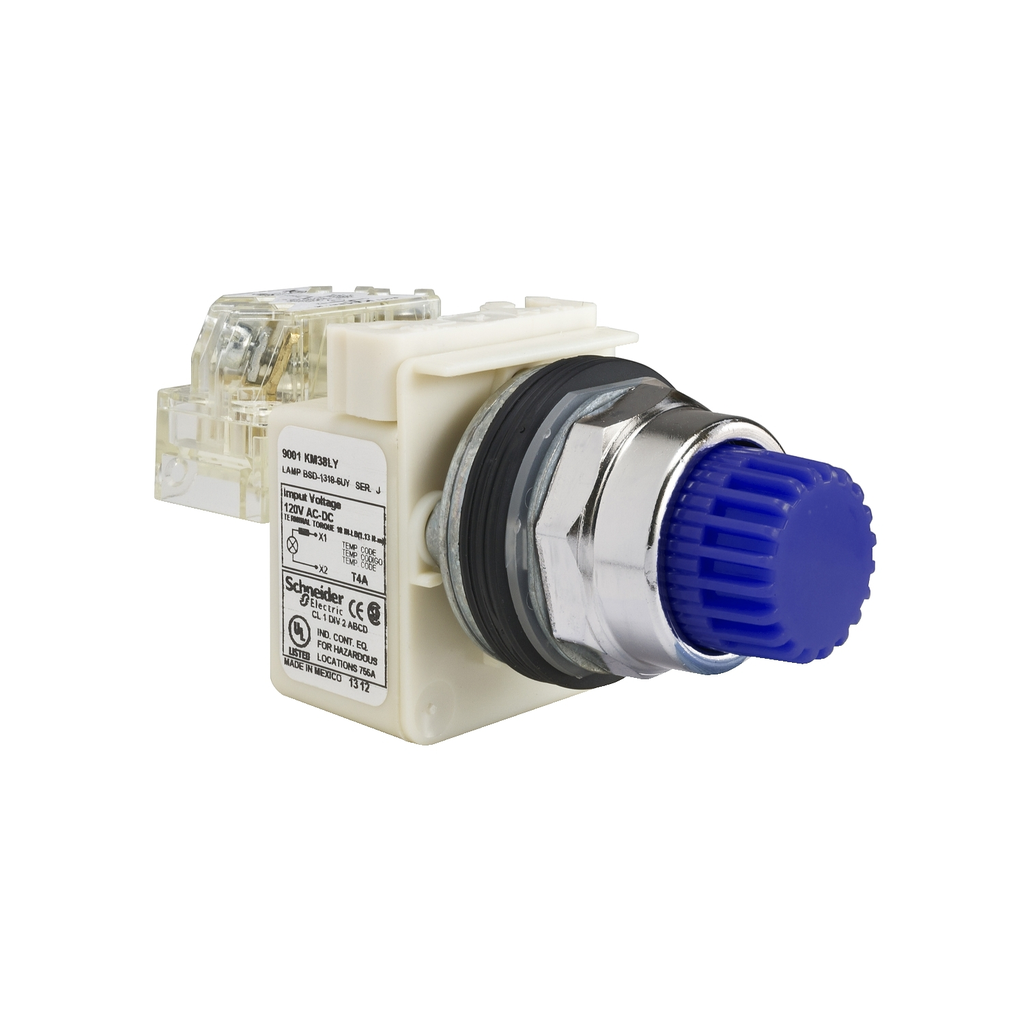

Mayer-DDS-Illuminated push-button, Harmony 9001K, metal, projecting, blue, 30mm, spring return, LED blue, 24-28V, 1 NO-1
  • Bezel Material: Metal
  • Light Source: LED, Blue LED
  • Operating Position: Any Position
  • Warranty Length: 18 mth
This Harmony 9001K, modular illuminated projecting blue push button is supplied with contact block. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED and has 1 x NO contact. This illuminated push button with integral LED provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001K, modular illuminated projecting blue push button is supplied with contact block. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED and has 1 x NO contact. This illuminated push button with integral LED provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cap Operator Or Lens Color : blue
    • Light Source Color : blue
    • Size : 30 mm
  • Conformance Attributes
    • Product Certifications : UL listed file E42259 CCN NKCR, NEMA, CE, CSA LR 25490 class 3211 03
  • Important Information Attributes
    • Light Source : LED, Blue LED
    • Operator Profile : projecting, blue projecting, unmarked
    • Ie Rated Operational Current2 : 10 A, AC-15, 10 A, DC-13
    • Us Rated Supply Voltage2 : 24...28 V, 24...28 V AC/DC
    • Ie Rated Operational Current5 : 10 A, AC-15, 10 A, DC-13
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Bezel Material : metal
    • Bulb Base : BA 9s
    • Cap Operator Or Lens Color : blue
    • Compatibility Code : 9001K
    • Contact Operation : standard
    • Contacts Material : silver alloy contacts
    • Contacts Type And Composition : 1 NO
    • Device Short Name : 9001K
    • Light Block Supply : direct
    • Light Source Color : blue
    • Mechanical Durability : 5000000 cycles
    • Mounting Diameter : 30 mm
    • Operating Position : any position
    • Operator Additional Information : without guard
    • Overvoltage Category : class II conforming to IEC 61140
    • Package Weight Lbs : 144.5 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : illuminated push-button
    • Protective Treatment : TC
    • Range Of Product : Harmony 9001K
    • Returnability : No
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Short Circuit Protection : 10 A cartridge fuse IEC 60947-5-1
    • Sustainable Packaging : Yes
    • Tightening Torque : 0.8-0.8 N.m IEC 60947-1
    • Type Of Operator : spring return
    • Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Icm Rated Short Circuit Making Capacity2 : 12 kA
    • Ith Conventional Free Air Thermal Current2 : 10 A
    • Connections Terminals : screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • Medium Desc : Illuminated push-button, Harmony 9001K, metal, projecting, blue, 30mm, spring return, LED blue, 24-28V, 1 NO
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2503027EN
    • Global Commercial Status : Commercialised
    • Connections Terminals3 : screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • Icm Rated Short Circuit Making Capacity5 : 12 kA
    • Ith Conventional Free Air Thermal Current5 : 10 A
    • Us Rated Supply Voltage5 : 24...28 V AC/DC
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • IP Degree Of Protection : IP66 IEC 60529
    • Nema Degree Of Protection : NEMA 3R/6/13
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : illuminated push-button
    • Range Of Product : Harmony 9001K
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Overview Attributes
    • Device Presentation : complete product
