Illuminated push button, Harmony 9001K, metal, metal guard flush, green, 30mm, spring return, 24...28V, screw terminals for lug, 2 C/O

Illuminated push button, Harmo

SQD9001K3L35GH2Y238 9001K3L35GH2Y238 785901836339
284.40 / EA
http://schema.org/OutOfStock

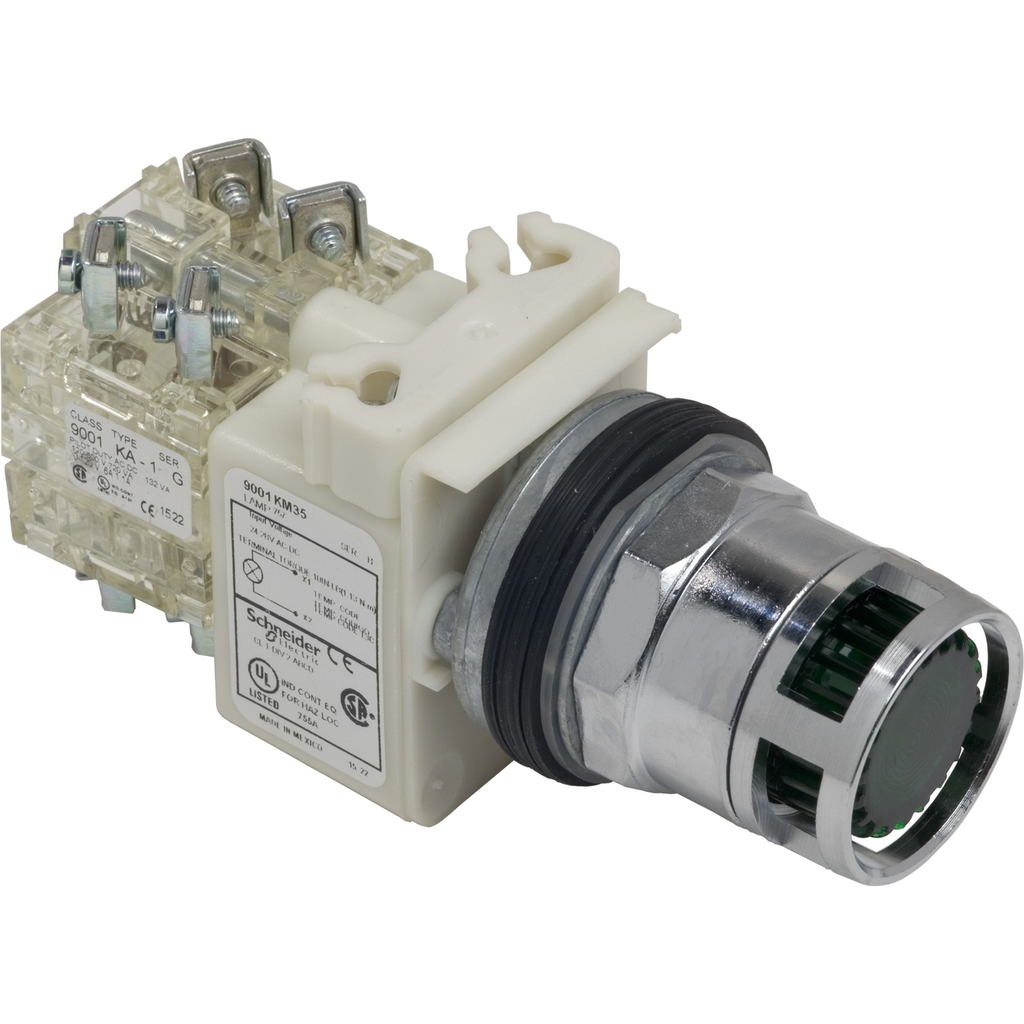

Mayer-DDS-Illuminated push button, Harmony 9001K, metal, metal guard flush, green, 30mm, spring return, 24...28V, screw terminals for lug, 2 C/O-1
  • Bezel Material: Chromium Plated Metal
  • Warranty Length: 18 mth
This product is part of the Harmony 9001K range, an offer of metal pushbuttons, switches and piolt lights. This Type-K pushbutton provides an ergonomic and visual interface for controlling the machines. It is supplied with 600V AC and current of 10A. It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits International standards & certifications (Marine ABS certification, IP20, Type 1, 2, 3, 3R, 4, 12 and 13)
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Harmony 9001K range, an offer of metal pushbuttons, switches and piolt lights. This Type-K pushbutton provides an ergonomic and visual interface for controlling the machines. It is supplied with 600V AC and current of 10A. It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits International standards & certifications (Marine ABS certification, IP20, Type 1, 2, 3, 3R, 4, 12 and 13)
  • Features
    • Improved security thanks to finger-safe contact blocks and light modules
    • Robustness to withstand the harshest environments
    • Easy, secure mounting system
    • Automatic self-grounding operators without additional wiring
    • A large metal set of accessories to customize your product
    • Single screw Contact Block Fastening
    • High brightness for easy identification of function and operation mode, even in brightly lit environments
    • The metal guard is ideal for protection of control and signaling units in harsh environment
    • Vibration resistant screw clamp connection terminals emake product suitable for installation on high impact machine
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cap Operator Or Lens Color : green
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Carbon Footprint Of The Distribution Phase A4 : 0.12022831503412852, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.5 kg CO2 eq., 0.48828064722250747
    • Carbon Footprint Of The Installation Phase A5 : 0.0016402566254265865, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 1.2129507645172184
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 60 kg CO2 eq., 59.82673420507562
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : chromium plated metal
    • Cap Operator Or Lens Color : green
    • Contacts Type And Composition : 2 C/O
    • Mounting Diameter : 30 mm
    • Package Weight Lbs : 222.26 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : illuminated push-button
    • Range Of Product : Harmony 9001K
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 62 kg CO2 eq.
    • Type Of Operator : spring return
    • Medium Desc : Illuminated push button, Harmony 9001K, metal, metal guard flush, green, 30mm, spring return, 24...28V, screw terminals for lug, 2 C/O
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2503027EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-03-26
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : This subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; High voltage; 2020; Mexico, MX
    • Energy Model Installation A5 2 : No energy used
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; United States, US
    • Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 61.6498341884749
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • IP Degree Of Protection : IP65/IP66
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
    • Pep Verification Date : 2025-03-26
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : illuminated push-button
    • Range Of Product : Harmony 9001K
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Overview Attributes
    • Device Presentation : complete product
