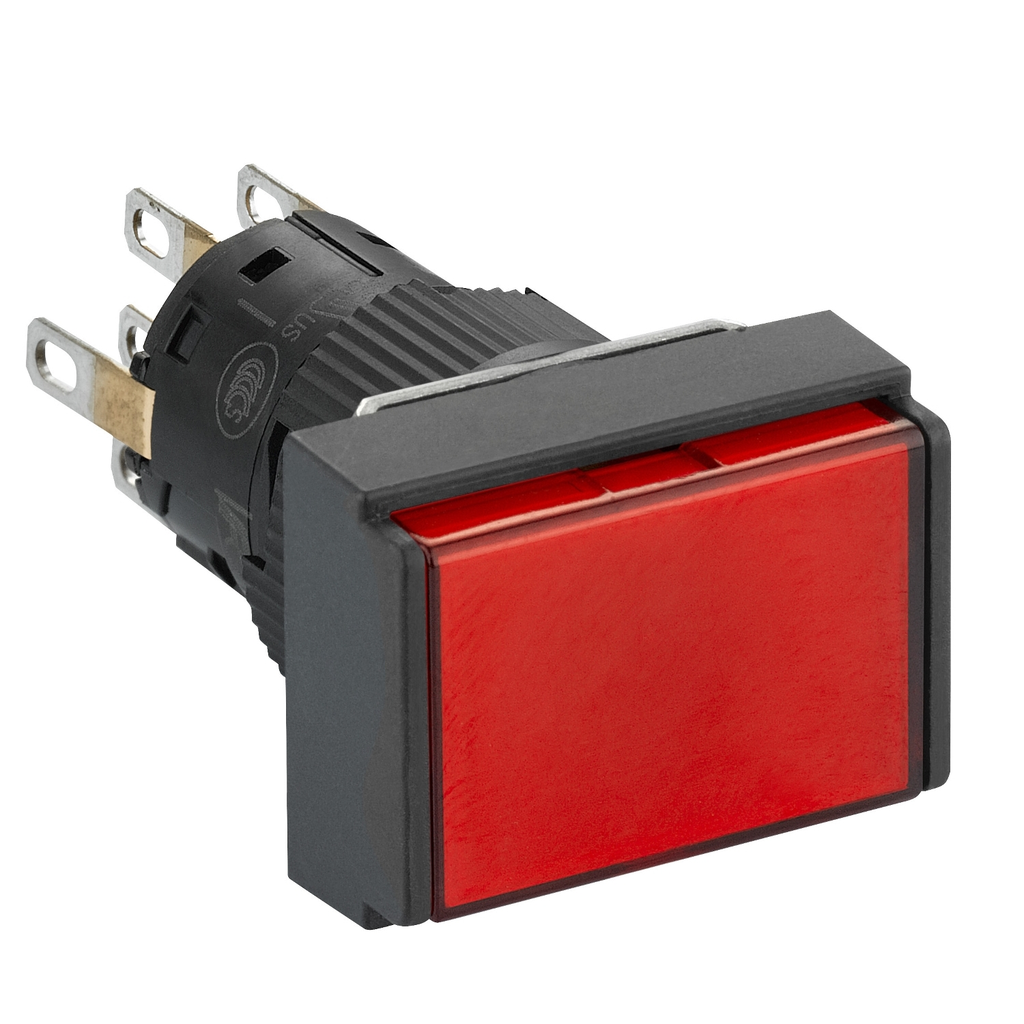

Illuminated monolithic push button, Harmony XB6E, rectangle red flush, 16mm, spring return, 24V DC, 2CO

ILLUMINATED MONOLITHIC PUSH BU

SQDXB6EDW4B2P XB6EDW4B2P 785901149330
11.19 / EA
http://schema.org/OutOfStock
Illuminated monolithic push button, Harmony XB6E, rectangle red flush, 16mm, spring return, 24V DC, 2CO
  • Bezel Material: Plastic
  • Country of Origin: China
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • US Rated Supply Voltage
    • 24 V DC polarised
  • Connections Terminals
    • insulated faston 2.8 x 0.5 mm
    • solder terminal <= 0.75 mm² AWG 19
    • fast connector socket
  • Overvoltage Category
    • II conforming to IEC 60536
  • IE Rated Operational Current
    • 1.5 A 120 V, AC-12 IEC 60947-5-1
    • 1 A 240 V, AC-12 IEC 60947-5-1
    • 1 A 240 V, AC-12 IEC 60947-5-
  • ITH Conventional Free Air Thermal Current
    • 3 A fast connector socket)
    • 5 A
  • IP Degree Of Protection
    • IP65 IEC 60529
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
  • Contact Resistance
    • 50 mOhm 1/6 V
  • Electrical Durability
    • 100000 cycles, AC, 0.7 A 220 V IEC 60947-5-1 appendix C
    • 100000 cycles, AC, 0.7 A 220 V
  • Vibration Resistance
    • 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
  • Short Circuit Protection
    • 2 A cartridge fuse gG
  • Operator Profile
    • red flush
  • Shock Resistance
    • 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2129
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Bezel Material : plastic
    • Compatibility Code : XB6
    • Device Short Name : XB6E
    • Mounting Diameter : 16 mm
    • Package Weight Lbs : 13.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : illuminated monolithic push-button
    • Range Of Product : Harmony XB6E
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 5
    • Service Life : 30000 h
    • Shape Of Signaling Unit Head : rectangular
    • Signalling Type : steady
    • Sustainable Packaging : No
    • Type Of Operator : spring return
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • General Attributes
    • Product Or Component Type : illuminated monolithic push-button
    • Range Of Product : Harmony XB6E
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=668934&lang=en-us
    • Take Back : No
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : China
