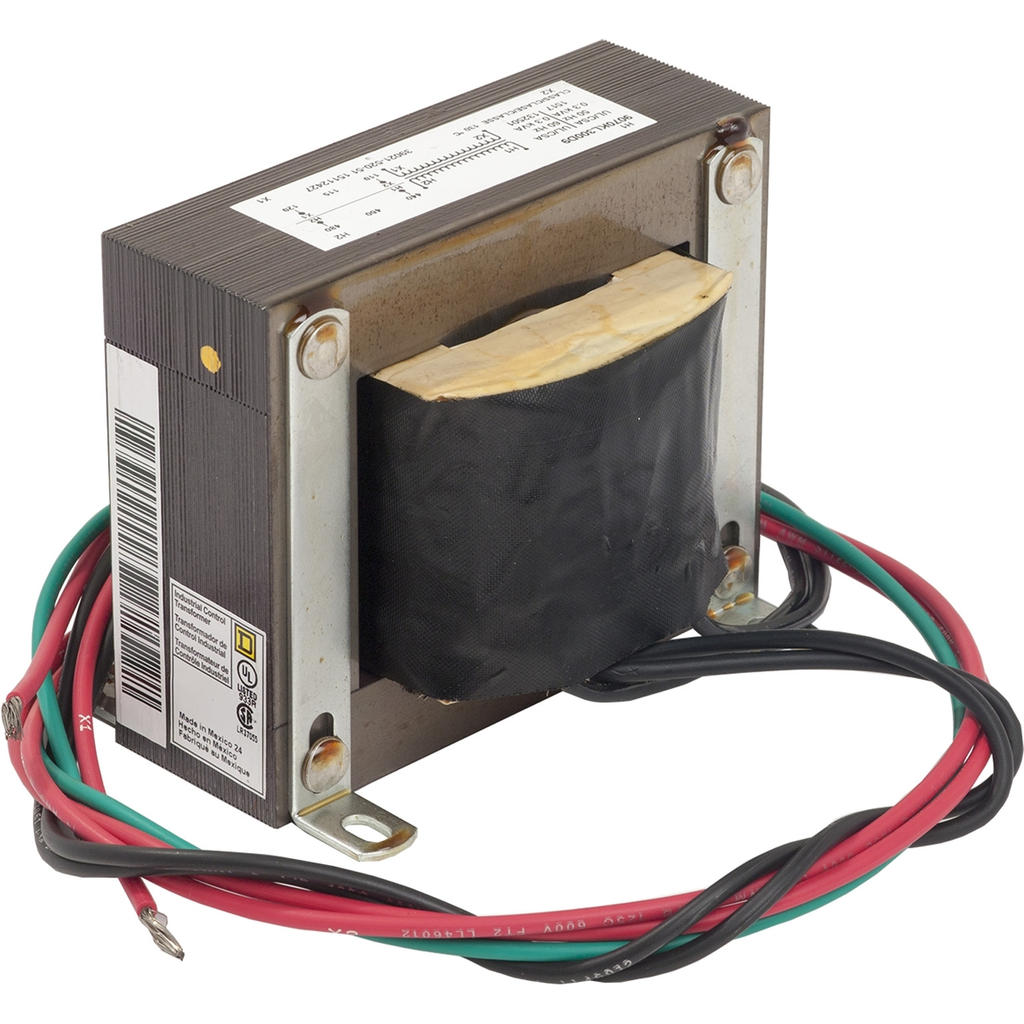

Schneider Electric offers transformers with internally pre-wired 24-inch primary and secondary leads, instead of terminal boards, to make installation easier and faster for many applications. These are only available for single voltage primary and single

• Connector Type
• lead 610 m
• Secondary Voltage
• 120 V
• 115 V
• 110 V
• Primary Voltage
• 440 V
• 460 V
• 480 V
• Prop 65
• WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Product Certifications
• CE
• UL Listed
• CSA

• Complementary Attributes
• Rated Power In Va : 300 VA
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Used with motor control center buckets
• B2B Bullet Point 2 : No screw terminals
• B2B Bullet Point 3 : Long wire leads
• B2B Bullet Point 4 : Includes a green ground lead
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-03
• ETIM 10 : EC002486
• Html Descr : TRANSFORMER CONTROL 300VA 480V
• Manufacturer : Schneider Electric
• Device Type : Transformer - dry
• Serviceability : No
• Traceability : No
• Field Service Division : PSIBS
• Average Life Duration : 25 year(s)
• Legacy WEEE Scope : In
• WEEE Product Category : 4
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1905
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : A - SELECTED - PCE ONLY (Migration)
• Electrical Connection : screw clamp terminals
• Insulation Temperature : 130 °C
• Package Weight Lbs : 3.874 kg
• Phase : 1 phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Industrial Control Transformer
• Range Of Product : KL
• Returnability : Yes
• Sustainable Packaging : No
• Temperature Rise : 80 °C
• General Attributes
• Phase : 1 phase
• Product Or Component Type : Industrial Control Transformer
• Range Of Product : KL
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=451197&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1308008EN
• Eu Rohs Directive : Compliant with Exemptions
• Nema Degree Of Protection : not rated (open device)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
