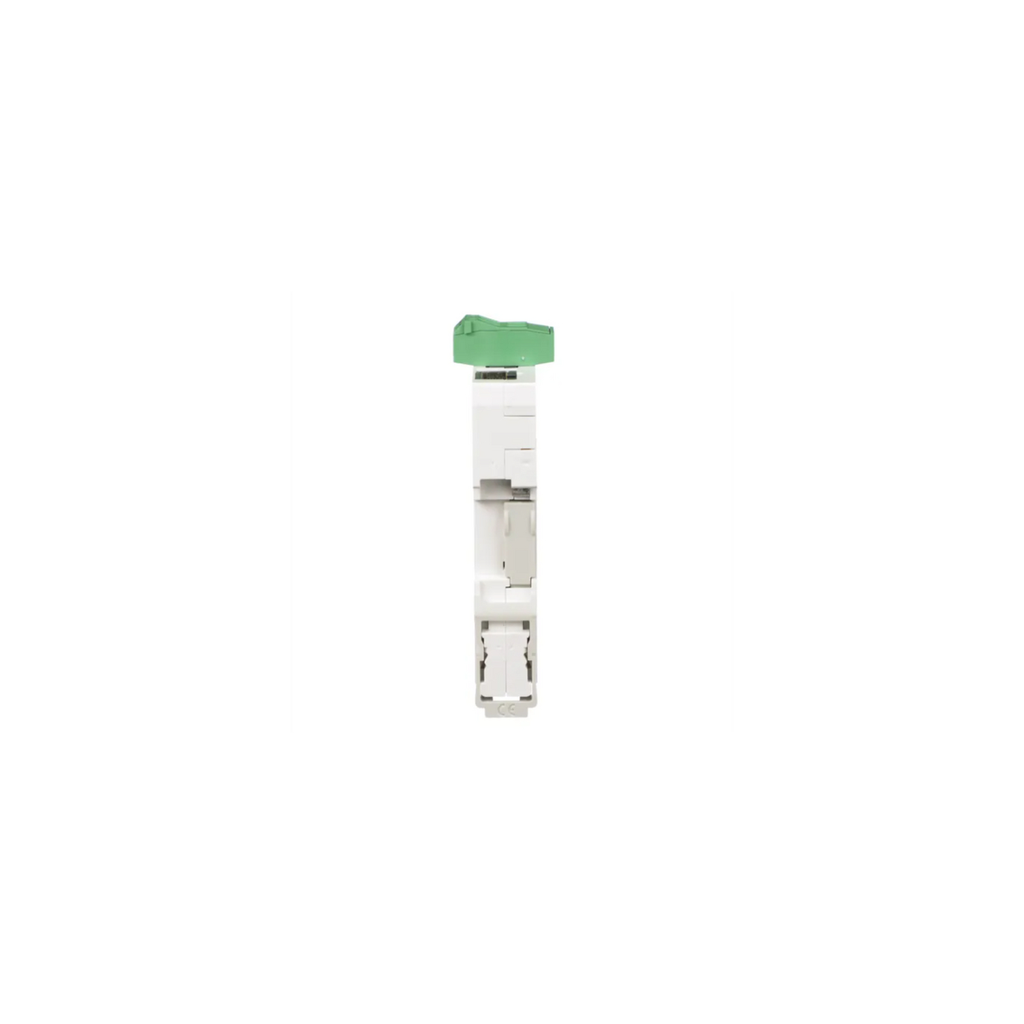

This IFM is a Modbus interface module, and it is part of EnerlinX communication system. It is required for connection of MasterPacT, ComPacT and PowerPacT circuit breakers to a Modbus Serial Line network. Once connected, the circuit breaker is considered as a slave by the Modbus master. The Modbus address is easily set with two rotary switches on its front face. It is equipped on the top with one 24VDC screw clamp terminal block and one RJ45 socket for Modbus Serial line. It is equipped on the bottom with two RJ45 sockets for ULP internal network connection (Universal Logic Plug). The IFM interface is a DIN rail mounting device and its dimensions are 18mm x 72mm x 96mm. The protection degree is IP4x on the front face and IP2x on the connectors. The IFM interface is entirely part of the EcoStruxure Power architecture. The IFM interface firmware can be updated using EcoStruxure Power Commission software.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Communication Network Type : Universal Logic Plug 2-port RJ45, Modbus, Modbus Serial line slave 9.6...38.4 kbauds 1 RJ45
• Important Information Attributes
• Persona Type Ids : PB, SI
• Persona Type Names : Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Range Of Product : ComPact NSX100...250, ComPact NSX400...630, ComPact NS630b...1600, ComPact NS1600b...3200
• Shock Resistance : +/- 15 gn 11 ms EN/IEC 60068-2-27, +/- 15 gn 11 ms EN/IEC 60068-2-27, +/- 15 gn 11 ms EN/IEC 60068-2-27+/- 15 gn 11 ms EN/IEC 60068-2-27, +/- 15 gn 11 ms EN/IEC 60068-2-27, +/- 15 gn 11 ms EN/IEC 60068-2-27
• Connections Terminals : RJ45 connector, screw type terminals
• Carbon Footprint Of The Distribution Phase A4 : 0.018635, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.16007
• Carbon Footprint Of The Installation Phase A5 : 0.083038, 0.1 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 7 kg CO2 eq., 6.6796
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 21 kg CO2 eq., 20.681
• Certificate Agency : EAC, cULus, CE, FCC
• Other Technical Guide : https://download.schneider-electric.com/files?p_Doc_Ref=ESXP1G003EN&p_File_name=ESXP1G003EN_web.pdf, ESXP1G003EN
• Local Data Status : Publishable
• Local Publishable Date : 2026-03-26
• Return Indicator : Y
• Stocking Flag : N
• Device Type : Relay, Control & Measurement - gateway
• Serviceability : No
• Traceability : Yes
• Field Service Division : DPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 6.6796
• Use Carbon Footprint : 20.681
• Weee Applicability : Finished product
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2305018EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1915
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• China Rohs Label : 7
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 3
• Tier : 3
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Compatibility Code : IFM
• Current Consumption : 30 mA 24 V DC room temperature
• Device Short Name : IFM
• Energy Efficiency Optimized : False
• Flame Retardance : V0 conforming to UL 94
• Halogen Free Status : Product contains halogen above thresholds
• Memory Type : EEPROM data storage
• Mounting Mode : by clips
• Mounting Support : 35 mm DIN rail
• Power Consumption In W : 1.635 W
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : interface module
• Range : Enerlin'X
• Returnability : Yes
• Software Version : v5.9.4
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 28 kg CO2 eq.
• Vibration Frequency : 5-8.4 Hz EN/IEC 60068-2
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Warranty In Months : 18
• Pep Code : ENVPEP2305018EN
• Database Version : 2022-01
• Pep Verification Date : 2023-12-03
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Data Source : referent product
• Functional-unit Description : The main function of the IFM V2 MODBUS COMMUNICATION INTERFACE is to convert ULP protocol to Modbus serial in order to transmit Breaker Parameters like voltage, Current, Power Factor to supervisor during 10 years.
• Functional-unit Quantity : 1
• Functional-unit Unit : Unit
• Reference Lifetime, In Y : 10
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Production mix; Low voltage; ID
• Energy Model - Installation [A5] : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model - End Of Life [C1-c4] : Electricity Mix; Production mix; Low voltage; UE-27
• Recyclability Potential, In % : 1
• Offer Owner Code : 190788
• Pn : 1
• Height Nominal : 109 mm
• Width Nominal : 18 mm
• Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3] : 6.6773
• Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6] : 20.653
• Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3] : 6.6796
• Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6] : 20.681
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] : 79.388
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] : 526.89
• Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3] : 84.073
• Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] : 222.72
• Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4] : 47.649
• Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 74.12
• Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3] : 3.3294
• Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6] : 30.749
• Net Use Of Fresh Water (M3) End Of Life [C1-c4] : 0.6361
• Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 1.5843
• Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] : 2.9755
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle : 1.5941
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 1.5941
• Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] : 82.081
• Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] : 628.06
• Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] : 1.0355
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 2.6926
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 101.18
• Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 1.5941
• Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 1.5941
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 77.794
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 526.89
• Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 0.1207
• Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 0.1207
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 2.572
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 101.18
• Water Use (M3 Eq) Manufacturing [A1-a3] : 2.9614
• Water Use (M3 Eq) End Of Life [C1-c4] : 24.301
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Ambient Air Temperature For Operation : -20-70 °C, -20-70 °C
• Ambient Air Temperature For Storage : -40-85 °C, -40-85 °C
• Ip Degree Of Protection : connectors IP20, other parts IP30
• Take Back : No
• Halogene Performance : Product contains halogen above thresholds
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 27.622343
• Circularity Profile : ENVEOLI2305018EN
• Environmental Disclosure : ENVPEP2305018EN
• Eu Rohs Directive : Compliant By Exemption
• Halogen Content Performance : Product contains halogen above thresholds
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 5-85 % 55-55 °C without condensation
• Pep Code : ENVPEP2305018EN
• Pep Verification Date : 2023-12-03
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Range Of Product : ComPact NSX100...250, ComPact NSX400...630, ComPact NS630b...1600, ComPact NS1600b...3200
• Product Or Component Type : interface module
• ETIM
• ETIM 8 : EC001604
• ETIM 9 : EC001604
• Output Attributes
• Output Current : 3 A
• Output Voltage : 24 V DC
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Input Voltage : 24 V DC - 20...10 %
• Specifications
• Country of Origin : Argentina, Brazil, China, France, Indonesia, Mexico, Sweden, Singapore, United States
• Depth : 73 mm
