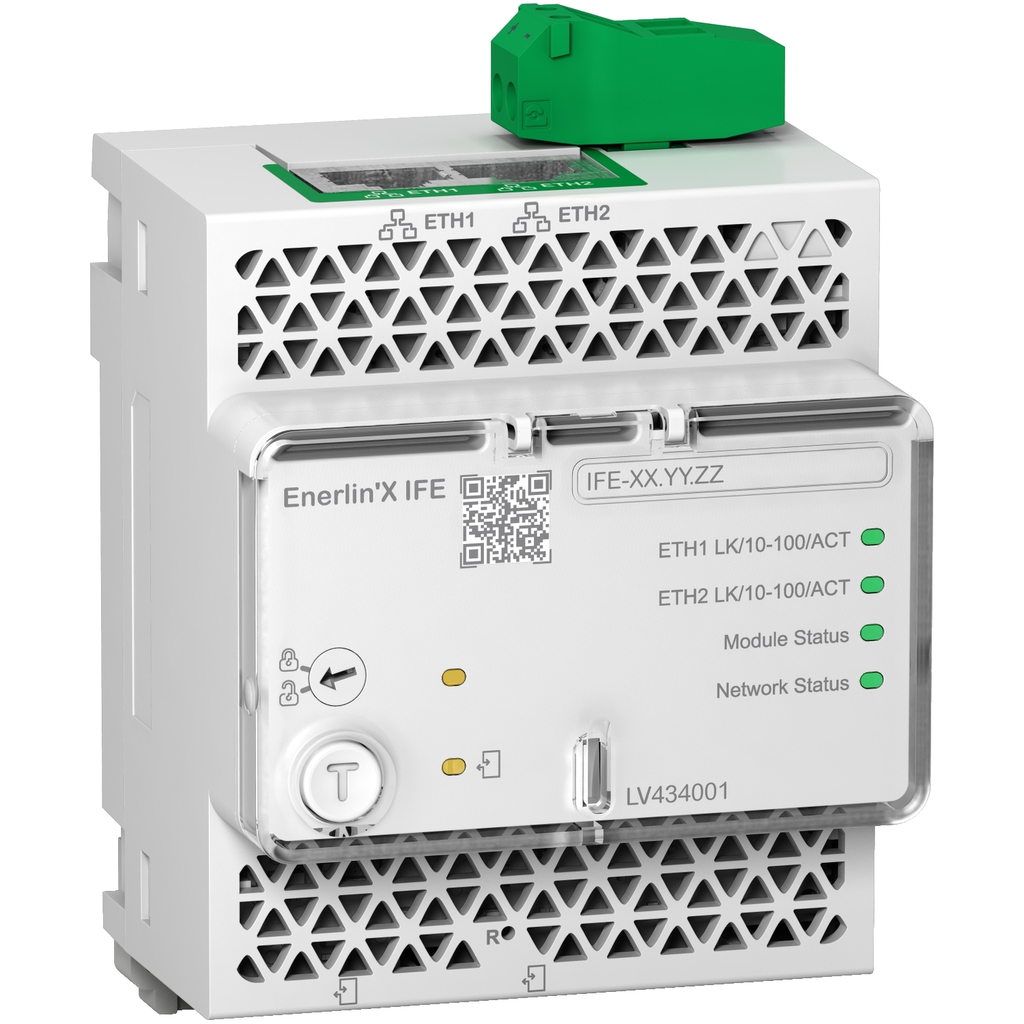

This IFE is an Ethernet interface module, and it is part of EnerlinX communication system. It provides an Ethernet access to a single Masterpact, Compact or PowerPact circuit breaker. The data flow is 10/100 Mbps for a simple daisy chain connection. It is equipped on the top with one 24VDC screw clamp terminal block and 2xRJ45 sockets for Ethernet network connection. It is equipped on the bottom with two RJ45 sockets for ULP internal network connection (Universal Logic Plug). The IFE interface is a DIN rail mounting device and its dimensions are 72mm x 105mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The IFE interface is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The IFE interface firmware can be updated using EcoStruxure Power Commission software.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Communication Network Type : Ethernet, Modbus TCP/IP, HTTP, FTP, SMTP, NTP, SNMP 10/100 Mbit/s 2-port RJ45, Universal Logic Plug 2-port RJ45
• Complementary Attributes
• Maximum Supply Current : 3 A
• Us Rated Supply Voltage : 24 V DC - 20...10 %
• Important Information Attributes
• Persona Type Ids : PB, SI
• Persona Type Names : Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Flame Retardance : V0 conforming to UL 94, V0 conforming to IEC 60947-1, V0 conforming to IEC 60695-2-11
• Range Of Product : ComPact NSX100...250, ComPact NSX400...630, ComPact NS630b...1600, ComPact NS1600b...3200
• Accessory Separate Part Category : spare part Compact NS630b...1600, spare part Compact NS1600b...3200
• Carbon Footprint Of The Distribution Phase A4 : 0.029305013, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.306657308
• Carbon Footprint Of The Installation Phase A5 : 0.083288309, 0.1 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 12 kg CO2 eq., 12.04027228
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 103 kg CO2 eq., 103.4
• Certificate Agency : GOST, cULus, FCC, CE
• Other Technical Guide : https://download.schneider-electric.com/files?p_Doc_Ref=ESXP1G003EN&p_File_name=ESXP1G003EN_web.pdf, ESXP1G003EN
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Device Type : Relay, Control & Measurement - gateway
• Serviceability : No
• Traceability : Yes
• Field Service Division : DPIBS
• Average Life Duration : 15 year(s)
• Use Carbon Footprint : 103.4
• Weee Applicability : Finished product
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2305024EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1920
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• China Rohs Label : 7
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
• Tier Id : 3
• Tier : 3
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Compatibility Code : IFE
• Control Type : by software
• Current Consumption : 120 mA
• Device Short Name : IFE
• Energy Efficiency Optimized : False
• Halogen Free Status : Halogen free plastic parts product
• Mounting Mode : by clips
• Mounting Support : 35 mm DIN rail
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : interface module
• Range : Enerlin'X
• Returnability : Yes
• Shock Resistance : 1000 m/s²
• Software Version : v5.9.4
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 116 kg CO2 eq.
• Vibration Frequency : 5-8.4 Hz
• Web Server : embedded HTTP server
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Connections Terminals : RJ45 connector
• Warranty In Months : 18
• Pep Code : ENVPEP2305024EN
• Database Version : 2022-01
• Pep Verification Date : 2023-12-03
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional-unit Description : This is an Ethernet gateway module with dual Ethernet ports with 10/100Mbps bit rate and able to handle 8 Modbus client connections to monitor, control and configure LV range of breaker systems during 10 years
• Functional-unit Quantity : 1
• Functional-unit Unit : Unit
• Reference Lifetime, In Y : 10
• Energy Consumption On Product Lifetime, In Kwh : 252.288
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Production mix; Low voltage; ID
• Energy Model - Installation [A5] : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model - End Of Life [C1-c4] : Electricity Mix; Production mix; Low voltage; UE-27
• Recyclability Potential, In % : 1
• Offer Owner Code : 190788
• Pn : 1
• Height Nominal : 105 mm
• Width Nominal : 72 mm
• Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6] : 103.27
• Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6] : 103.4
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] : 2634.4
• Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] : 1113.6
• Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6] : 2.0574
• Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6] : 153.75
• Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] : 14.878
• Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6] : 1.0072
• Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] : 3140.3
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 505.88
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 2634.4
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 505.88
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Ambient Air Temperature For Operation : -20-70 °C, -20-70 °C
• Ambient Air Temperature For Storage : -40-85 °C, -40-85 °C
• Ip Degree Of Protection : connectors IP2X, other parts IP3x, front panel IP4X
• Take Back : No
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 115.8595229
• Circularity Profile : ENVEOLI2305024EN
• Environmental Disclosure : ENVPEP2305024EN
• Eu Rohs Directive : Compliant By Exemption
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 5-85 %
• Pep Code : ENVPEP2305024EN
• Pep Verification Date : 2023-12-03
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Range Of Product : ComPact NSX100...250, ComPact NSX400...630, ComPact NS630b...1600, ComPact NS1600b...3200
• Product Or Component Type : interface module
• ETIM
• ETIM 8 : EC001604
• ETIM 9 : EC001604
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Argentina, Brazil, China, Spain, Indonesia, Mexico, Singapore, United States
• Depth : 71 mm
