TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up

• Uc Control Circuit Voltage
• 110 V DC
• Connections Terminals
• control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
• control circuit: screw clamp terminals 1 1-4 mm² - cable stiffne
• Mounting Support
• plate
• rail
• Uimp Rated Impulse Withstand Voltage
• 8 kV IEC 60947
• Power Dissipation Per Pole
• 12.5 W AC-1
• 5.1 W AC-3
• 5.1 W AC-3e
• Maximum Operating Rate
• 3600 cyc/h at 60 °C
• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.5034847217759557
• 0.5 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 7 kg CO2 eq.
• 6.640550787829958
• Standards
• CSA C22.2 No 14
• EN 60947-4-1
• EN 60947-5-1
• IEC 60947-4-1
• IEC 60947-5-1
• UL 60947-4-1
• Ue Rated Operational Voltage
• power circuit <= 690 V AC 25...400 Hz
• power circuit <= 300 V DC
• Ui Rated Insulation Voltage
• power circuit 600 V CSA
• power circuit 600 V UL
• power circuit 1000 V IEC 60947-4-1
• Operating Time
• 6...20 ms opening
• 20...35 ms closing
• Control Circuit Type
• DC DC standard
• Ip Degree Of Protection
• IP20 front face IEC 60529
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 18 kg CO2 eq.
• 17.800248376754524
• Average Impedance
• 0.8 mOhm - Ith 125 A 50 Hz for power circuit
• Electrical Durability
• 0.8 Mcycles 125 A AC-1 <= 440 V
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Inrush Power In W
• 22-22 W 20 °C)
• Fire Resistance
• 850 °C IEC 60695-2-1
• Flame Retardance
• V1 conforming to UL 94
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 404 kg CO2 eq.
• 403.84999999999985
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• SI
• Auxiliaries
• LADN22
• LADN11
• LADN20
• LADT2
• LADN40
• LADN31
• LADN02
• LADT0
• LADS2
• LADR2
• Safety Reliability Level
• B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
• B10d = 1369863 cycles contactor with nominal load EN/ISO 13
• Carbon Footprint Of The Distribution Phase A4
• 0.35115170497108616
• 0.4 kg CO2 eq.
• Tightening Torque
• control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm
• control circuit 1.2 N.
• Ith Conventional Free Air Thermal Current
• 125 A (at 60 °C) for power circuit
• Irms Rated Making Capacity
• 1100 A at 440 V for power circuit conforming to IEC 60947
• Mechanical Robustness
• vibrations contactor open 2 Gn, 5...300 Hz)
• vibrations contactor closed 3 Gn, 5...300 Hz)
• vibrations contactor closed 3
• Control Circuit Voltage Limits
• 0.1...0.3 Uc (-40-70 °C):drop-out DC
• 0.85...1.1 Uc (-40-55 °C):operational DC
• 0.85...1.1 Uc (-40-55 °C
• Hold In Power Consumption In W
• 22-22 W 20 °C
• Ie Rated Operational Current
• 125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
• 125 A (at <60 °C) at <= 440 V
• Icw Rated Short Time Withstand Current
• 135 A 40 °C - 10 min for power circuit
• 320 A 40 °C - 1 min for power circuit
• 320 A 40 °C - 1 min fo
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Associated Fuse Rating
• 200 A gG at <= 690 V coordination type 1 for power circuit
• 200 A gG at <= 690
• Permissible Ambient Air Temperature Around The Device
• -40-60 °C
• 60-70 °C with derating
• Rated Breaking Capacity
• 1100 A at 440 V for power circuit conforming to IEC 60947
• Product Certifications
• BV
• CCC
• CSA
• DNV
• EAC
• GL
• LROS (Lloyds register of shipping)
• UL
• UKCA

• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-02-26
• ETIM 10 : EC000066
• Device Type : LV equipment - LV contactor
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 20 year(s)
• Manufacturing Carbon Footprint : 17.8002483767545
• Distribution Carbon Footprint : 0.351151704971086
• Installation Carbon Footprint : 0.503484721775956
• Use Carbon Footprint : 403.85
• End Of Life Carbon Footprint : 6.64055078782996
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1924
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Coil Technology : without built-in suppressor module
• Compatibility Code : LP1D
• Contact Compatibility : M4
• Contactor Application : resistive load
• Device Short Name : LP1D
• Mechanical Durability : 4 Mcycles
• Overvoltage Category : III
• Package Weight Lbs : 2.708 kg
• Pole Contact Composition : 4 NO
• Poles Description : 4P
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : contactor
• Range : TeSys
• Range Of Product : TeSys Deca
• Returnability : No
• Sustainable Packaging : Yes
• Time Constant : 75 ms
• Total Lifecycle Carbon Footprint : 429 kg CO2 eq.
• Utilisation Category : AC-1
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 429.14543559133136
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : contactor
• Range Of Product : TeSys Deca
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=638254&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 429.145435591331
• Environmental Disclosure : ENVPEP110205EN
• Eu Rohs Directive : Compliant
• Operating Altitude : 0...9842.52 ft (0...3000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Czechia

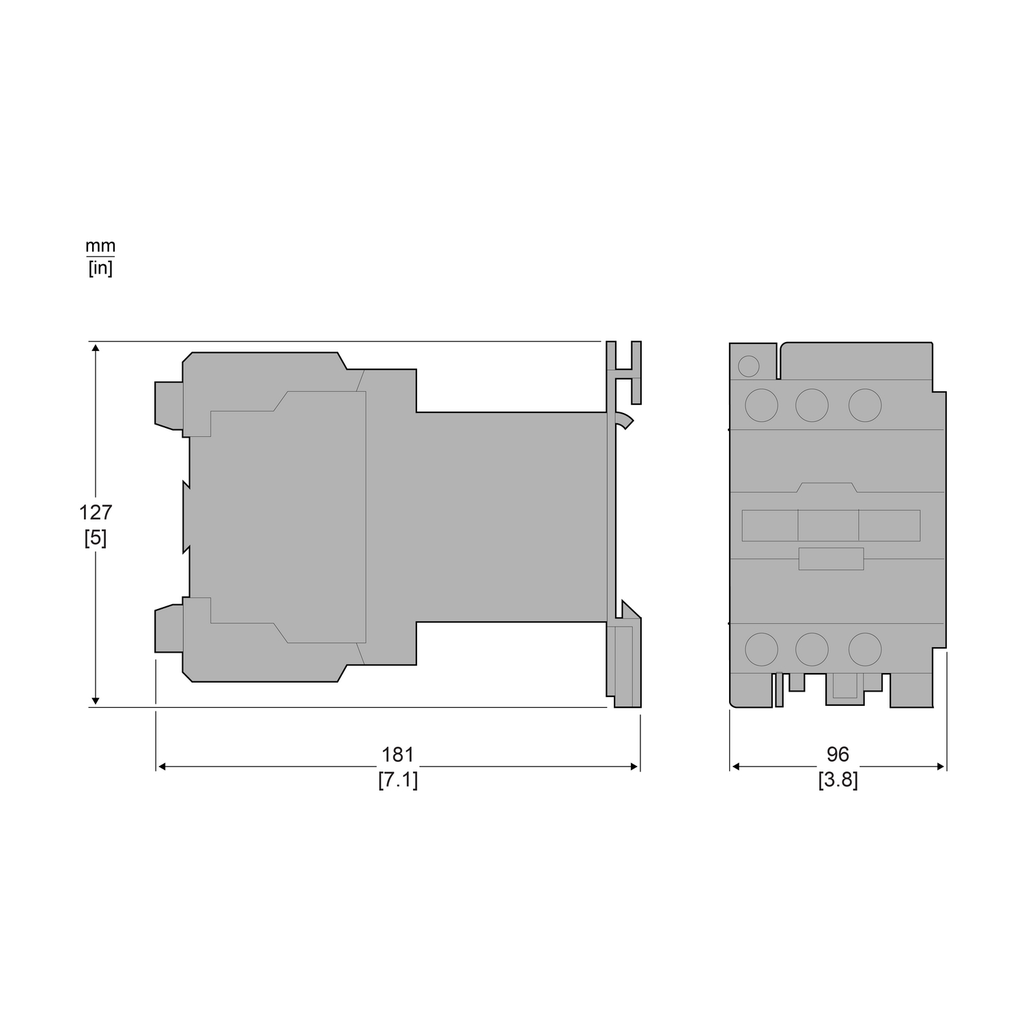

• Height : 5 in
• Width : 3.78 in
• Depth : 7.13 in
