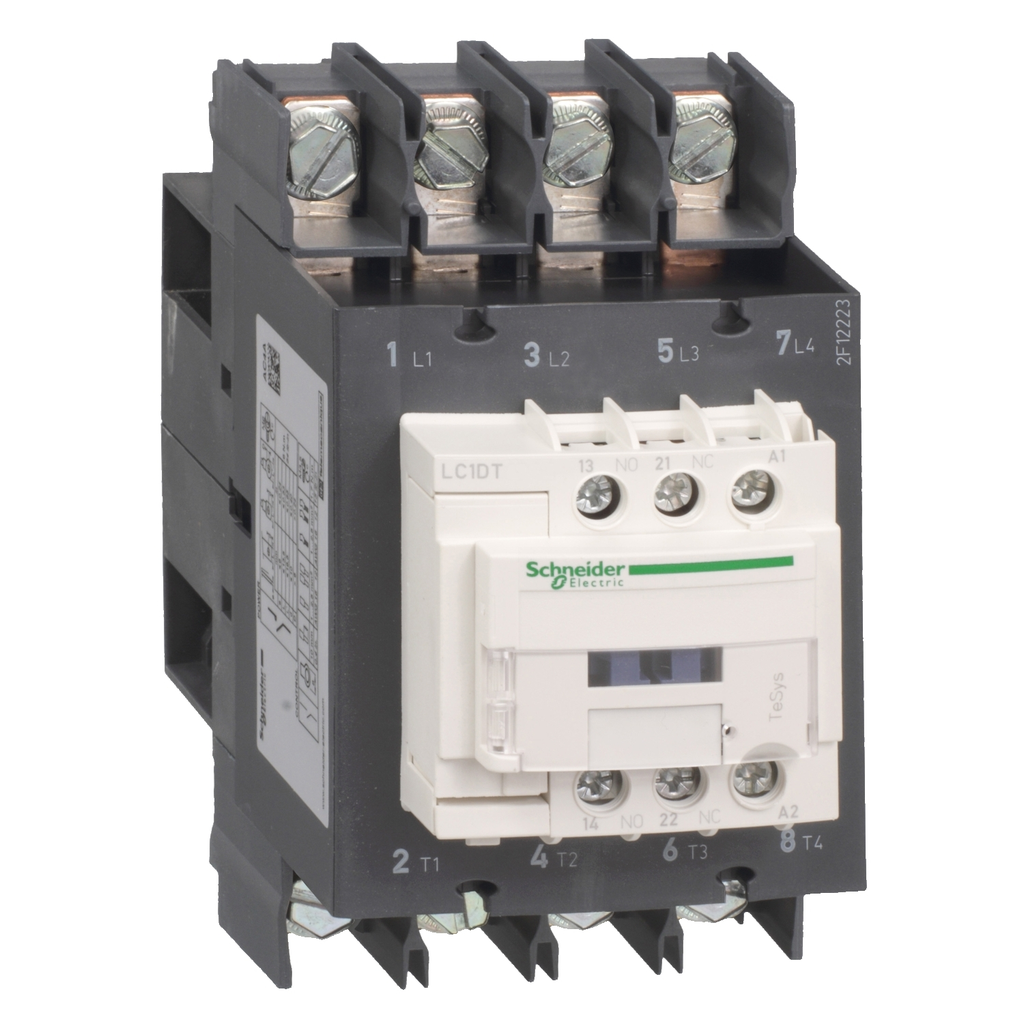

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up

• Insulation Resistance
• > 10 MOhm for signalling circuit
• Heat Dissipation
• 4-5 W at 50/60 Hz
• Inrush Power In VA
• 140-140 VA 60 Hz cos phi 0.75 (at 20 °C)
• 160-160 VA 50 Hz cos phi 0.75 (at 20 °C)
• 160-160
• Connections Terminals
• control circuit: lugs-ring terminals - external diameter: 8 mm
• power circuit: lugs-ring terminals - external diameter: 16.5 mm
• p
• IE Rated Operational Current
• 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
• 80 A (at <60 °C) at <= 440 V AC AC
• ITH Conventional Free Air Thermal Current
• 10 A (at 60 °C) for signalling circuit
• 80 A (at 60 °C) for power circuit
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004470_3D-CAD&p_File_name=MCADPD0004470_3D-simplified.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004470_3D-CAD&p_File_name=MCADPD0004470_2D-back.dwg
• https://downlo
• IP Degree Of Protection
• IP20 front face IEC 60529
• Climatic Withstand
• IACS E10 exposure to damp heat
• IEC 60947-1 Annex Q category D exposure to damp heat
• Power Dissipation Per Pole
• 10.2 W AC-1
• Maximum Operating Rate
• 3600 cyc/h at 60 °C
• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.2 kg CO2 eq.
• 0.23243182602476692
• Non Overlap Time
• 1.5 ms on de-energisation between NC and NO contact
• 1.5 ms on energisation between NC and NO contact
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 3.0655852673764916
• 3 kg CO2 eq.
• Standards
• CSA C22.2 No 14
• EN 60947-4-1
• EN 60947-5-1
• IEC 60947-4-1
• IEC 60947-5-1
• UL 60947-4-1
• Operating Time
• 4...19 ms opening
• 12...26 ms closing
• Control Circuit Type
• AC 50/60 Hz
• Minimum Switching Voltage
• 17 V for signalling circuit
• UC Control Circuit Voltage
• 110 V AC 50/60 Hz
• ICW Rated Short Time Withstand Current
• 640 A 40 °C - 10 s for power circuit
• 900 A 40 °C - 1 s for power circuit
• 900 A 40 °C - 1 s for power circui
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 8 kg CO2 eq.
• 8.217417639426431
• Protective Treatment
• THIEC 60068-2-30
• UI Rated Insulation Voltage
• power circuit 600 V CSA
• power circuit 600 V UL
• signalling circuit 690 V IEC 60947-1
• si
• Average Impedance
• 1.6 mOhm - Ith 80 A 50 Hz for power circuit
• Electrical Durability
• 1.4 Mcycles 80 A AC-1 <= 440 V
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Fire Resistance
• 850 °C IEC 60695-2-1
• Add Ons
• LAD4RC3U
• LAD4RC3G
• Flame Retardance
• V1 conforming to UL 94
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 89 kg CO2 eq.
• 88.96405797101447
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• SI
• Auxiliaries
• LADN226
• LADN116
• LADN406
• LADN206
• LADN316
• LADT26
• LADR06
• Safety Reliability Level
• B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
• B10d = 1369863 cycles contactor with nominal load EN/ISO 13
• Carbon Footprint Of The Distribution Phase A4
• 0.16210786239996203
• 0.2 kg CO2 eq.
• Tightening Torque
• control circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3.5
• control ci
• Mechanical Robustness
• vibrations contactor open 2 Gn, 5...300 Hz)
• vibrations contactor closed 4 Gn, 5...300 Hz)
• vibrations contactor closed 4
• Minimum Switching Current
• 5 mA for signalling circuit
• Control Circuit Voltage Limits
• 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz
• 0.8...1.1 Uc (-40-60 °C)
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• IRMS Rated Making Capacity
• 140 A AC for signalling circuit conforming to IEC 60947-5-1
• 250 A DC for s
• Associated Fuse Rating
• 10 A gG for signalling circuit conforming to IEC 60947-5-1
• 125 A gG at <= 690
• Hold In Power Consumption In VA
• 13-13 VA 60 Hz cos phi 0.3 (at 20 °C)
• 15-15 VA 50 Hz cos phi 0.3 (at 20 °C)
• 15-15 VA 50 Hz cos phi 0.3
• UE Rated Operational Voltage
• power circuit <= 690 V AC 25...400 Hz
• power circuit <= 300 V DC
• Permissible Ambient Air Temperature Around The Device
• -40-60 °C
• 60-70 °C with derating
• Rated Breaking Capacity
• 1000 A at 440 V for power circuit conforming to IEC 60947
• UIMP Rated Impulse Withstand Voltage
• 6 kV IEC 60947

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2/26/2025
• Device Type : LV equipment - LV contactor
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 20 year(s)
• Manufacturing Carbon Footprint : 8.217417639
• Distribution Carbon Footprint : 0.162107862
• Installation Carbon Footprint : 0.232431826
• Use Carbon Footprint : 88.96405797
• End Of Life Carbon Footprint : 3.065585267
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1503009EN
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1926
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Coil Technology : without built-in suppressor module
• Compatibility Code : LC1D
• Contact Compatibility : M6
• Contactor Application : resistive load
• Device Short Name : LC1D
• Package Weight Lbs : 1.1 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : contactor
• Range : TeSys
• Range Of Product : TeSys Deca
• Returnability : No
• Signalling Circuit Frequency : 25...400 Hz
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 101 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 100.6416006
• Relationship Type : Compatible relationship
• Accessories : LAD9ET1S
• Pep Code : ENVPEP1503009EN
• Pep Verification Date : 8/5/2025
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Rated Thermal Current Ith : 80 A
• Product Weight In G : 1318
• Functional Unit Description : Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(3NO), a control circuit voltage 230V AC, a power circuit voltage 690V a
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 1331.52
• Energy Model Manufacturing A1 A3 : Electricity Mix; Production mix; Low voltage; CZ
• Energy Model Installation A5 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model Use B6 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model End Of Life C1 C4 : Electricity Mix; Production mix; Low voltage; FR
• Recyclability Potential In : 76
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.641667134
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.112718005
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.001025672
• Acidification Ap Mole Of H Equiv Installation A5 : 0.000922564
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.514971594
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0120293
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.569008352
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.354674341
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.080025135
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.010331404
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.229255652
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.03506215
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.278285672
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 100.2870926
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 8.137400126
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.162107862
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.222098136
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 88.73495652
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 3.030529976
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -84.63566754
• Climate Change Total Kg Co2 Eq Total Life Cycle : 100.6416006
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 8.217417639
• Climate Change Total Kg Co2 Eq Distribution A4 : 0.162107862
• Climate Change Total Kg Co2 Eq Installation A5 : 0.232431826
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 88.96405797
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 3.065585267
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -84.91763401
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.010166287
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.010089065
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 6.3758E-09
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 7.7556E-09
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 4.20941E-05
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 3.51132E-05
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.026736519
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 17402.76293
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 156.0951178
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 2.259313556
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 2.419348584
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 17083.47826
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 158.5108846
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -1930.098642
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 2455.384993
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 1697.057159
• Ecotoxicity Fresh Water Ctue Distribution A4 : 0.109098165
• Ecotoxicity Fresh Water Ctue Installation A5 : 1.586175747
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 628.2997101
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 128.3328508
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -1452.965638
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 2.23048E-05
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 2.28157E-06
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 8.34087E-09
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 6.1378E-09
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 1.99483E-05
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 6.04003E-08
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -4.64201E-05
• Exported Energy Mj By Energy Vector Total Life Cycle : 0
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.005550588
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 7.28205E-05
• Freshwater Eutrophication Kg P Eq Distribution A4 : 6.07501E-08
• Freshwater Eutrophication Kg P Eq Installation A5 : 1.67907E-06
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.004231107
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00124492
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.000130871
• Hazardous Waste Disposed Of Kg Total Life Cycle : 119.8830818
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 118.6316799
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 0.002747649
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 1.248654252
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -2118.025489
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 1.56936E-05
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 1.55943E-05
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 2.84603E-12
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 8.30963E-08
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 1.48872E-08
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 1.36639E-09
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.000311299
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 1.6603E-06
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 8.84155E-07
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 3.07991E-10
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 1.20369E-09
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 6.42608E-07
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 1.32021E-07
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -5.94957E-06
• Impacts Related To Land Use Soil Quality Total Life Cycle : 6.066814814
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.004420853
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 2.836011594
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 3.226382367
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 2362.309598
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 56.23173632
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.000394471
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.010896861
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 2305.994203
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.072367077
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -143.9858007
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.08861506
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.014957941
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.000480768
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.000244328
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.070872754
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.00205927
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.049481306
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 1.028949021
• Materials For Recycling Kg Manufacturing A1 A3 : 0
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0.127723194
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.901225828
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 0.285105582
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0800861
• Net Use Of Fresh Water M3 Distribution A4 : 1.43193E-05
• Net Use Of Fresh Water M3 Installation A5 : 0.002310753
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.150028406
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.052666003
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.890861655
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 16.11163307
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 6.584603113
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.005684901
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.75610454
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 8.554405797
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.210834718
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -70.76901342
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 2.49008E-06
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 1.13724E-06
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 2.48268E-10
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 1.53847E-08
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 1.30885E-06
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 2.83521E-08
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -1.26458E-05
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.2681794
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.049069788
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.001330272
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.000492405
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.209892174
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.007394761
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.204852456
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.008728041
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.00501405
• Radioactive Waste Disposed Of Kg Distribution A4 : 4.04896E-06
• Radioactive Waste Disposed Of Kg Installation A5 : 0.000101493
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.003593699
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 1.47514E-05
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.030558308
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 1.212489756
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.16283183
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.005274297
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.001844137
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 1.01871942
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.023820071
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.57655286
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 7.586041351
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 7.586041351
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 18987.65327
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 160.48465
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 2.262361842
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 2.592948485
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 18662.95652
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 159.3567841
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -1948.083531
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1584.778173
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 4.387703218
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.003014984
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.173592281
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1579.368116
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.845747018
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -17.93992661
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 7.586041351
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 7.586041351
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 17395.18031
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 148.5125058
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 2.259313556
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 2.419348584
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 17083.47826
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 158.5108846
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -1930.098642
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.51887513
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.51887513
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -2.299017484
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1582.259298
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.868828088
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.003014984
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.173592281
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1579.368116
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.845747018
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -15.64075671
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Total Life Cycle : 11.93895693
• Water Use M3 Eq Manufacturing A1 A3 : 3.410727477
• Water Use M3 Eq Distribution A4 : 0.000615022
• Water Use M3 Eq Installation A5 : 0.099244579
• Water Use M3 Eq Maintenance B2 : 0
• Water Use M3 Eq Repair B3 : 0
• Water Use M3 Eq Replacement B4 : 0
• Water Use M3 Eq Operational Energy Use B6 : 6.443478261
• Water Use M3 Eq End Of Life C1 C4 : 1.984891587
• Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -38.25827856
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0
• Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0
• Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : contactor
• Range Of Product : TeSys Deca
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=8695041&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 100.6416006
• Circularity Profile : ENVEOLI1503009EN
• Environmental Disclosure : ENVPEP1503009EN
• EU ROHS Directive : Compliant
• Operating Altitude : 0...9842.52 ft (0...3000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Pep Code : ENVPEP1503009EN
• Pep Verification Date : 8/5/2025
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
