I/O (input/output) application module, Enerlin'X

CIRCUIT BREAKER I/O MODULE

SQDLV434063 LV434063 3606480631146
1073.08 / EA
http://schema.org/OutOfStock
Mayer-DDS-I/O (input/output) application module, Enerlin'X-1
  • Number of Outputs: 3 Digital
  • Warranty Length: 18 mth

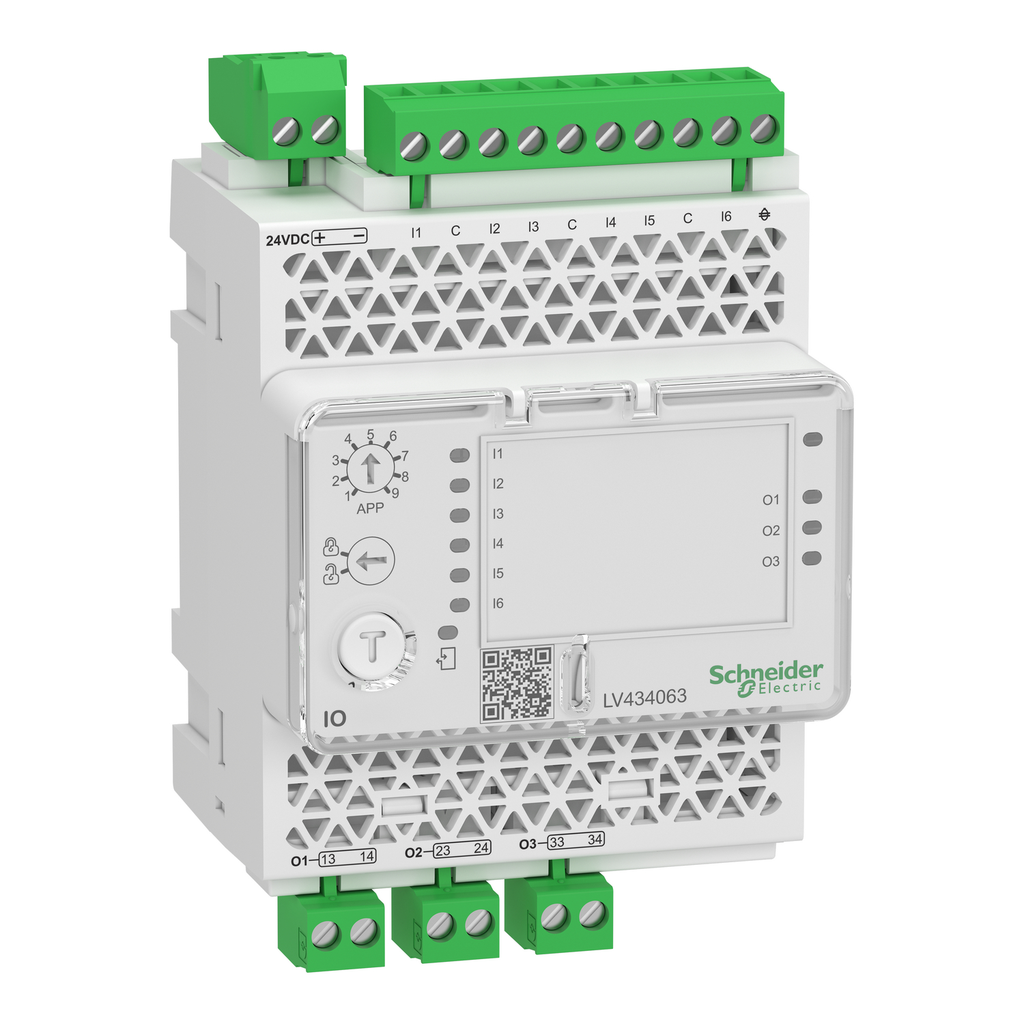

This I/O module is an Input/Output application module and it is part of EnerlinX communication system. This I/O module is compatible with Masterpact, Compact and PowerPact devices. It is used for protection, circuit breaker control, motor control, energy management and monitoring applications. It provides six digital inputs, three digital outputs and one analog input. It is equipped on the top with one 24VDC screw clamp terminal block and one terminal block for the 6 digital inputs. There are two RJ45 sockets on the bottom for ULP, and 4 terminal blocks for the digital outputs and analog input. The I/O module is a DIN rail mounting device and its dimensions are 72mm x 116mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The I/O module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The I/O module can be configured and updated (firmware) using EcoStruxure Power Commission software.
QTY
  • Product Description
  • Features
  • Specifications
This I/O module is an Input/Output application module and it is part of EnerlinX communication system. This I/O module is compatible with Masterpact, Compact and PowerPact devices. It is used for protection, circuit breaker control, motor control, energy management and monitoring applications. It provides six digital inputs, three digital outputs and one analog input. It is equipped on the top with one 24VDC screw clamp terminal block and one terminal block for the 6 digital inputs. There are two RJ45 sockets on the bottom for ULP, and 4 terminal blocks for the digital outputs and analog input. The I/O module is a DIN rail mounting device and its dimensions are 72mm x 116mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The I/O module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The I/O module can be configured and updated (firmware) using EcoStruxure Power Commission software.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication Network Type : Universal Logic Plug 2 RJ45 connectors
  • Complementary Attributes
    • US Rated Supply Voltage : 24 V DC - 20...10 %
  • Important Information Attributes
    • Persona Type Ids : PB, SI
    • Persona Type Names : Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Electromagnetic Compatibility : electrostatic discharge immunity test conforming to EN/IEC 61000-4-2, immunity to radiated fields 10 V/m conforming to EN/IEC 61000-4-3, surge immunity test conforming to EN/IEC 61000-4-5
    • Range Compatibility : Masterpact MasterPact MTZ, Masterpact MasterPact NT, Masterpact MasterPact NW, ComPact ComPact NSX, ComPact ComPact NS630b...1600, ComPact ComPact NS1600b...3200, PowerPact PowerPact J, PowerPact PowerPact L, PowerPact PowerPact H, PowerPact PowerPact P, PowerPact PowerPact R
    • Range Of Product : ComPact NSX100...250, ComPact NSX400...630, ComPact NS630b...1600, ComPact NS1600b...3200
    • Carbon Footprint Of The Distribution Phase A4 : 0.04563376, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.4 kg CO2 eq., 0.39198261
    • Carbon Footprint Of The Installation Phase A5 : 0.203345111, 0.2 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 16 kg CO2 eq., 16.35713776
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 21 kg CO2 eq., 20.681
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-02-10
    • HTML Description : Enerlin'X I/O application module for Masterpact, PowerPact and Compact
    • Manufacturer : Schneider Electric
    • Device Type : Relay, Control & Measurement - measuring, monitoring device
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : DPIBS
    • Average Life Duration : 15 year(s)
    • WEEE Applicability : Finished product
    • WEEE Scope : In
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • BVB : Recommended
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2411031EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Compatibility Code : I/O
    • Device Short Name : I/O
    • Energy Efficiency Optimized : False
    • Flame Retardance : V0 conforming to UL
    • Halogen Free Status : Product contains halogen above thresholds
    • Package Weight Lbs : 270.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : I/O module
    • Range : Enerlin'X
    • Returnability : Yes
    • Sustainable Packaging : No
    • Time Delay : 0...20 s
    • Total Lifecycle Carbon Footprint : 38 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2411031EN
    • Pep Verification Date : 2023-12-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent external review
    • Functional Unit Description : The main function of the IFM V2 MODBUS COMMUNICATION INTERFACE is to convert ULP protocol to Modbus serial in order to transmit Breaker Parameters like voltage, Current, Power Factor to supervisor during 10 years.
    • Functional Unit Unit : Unit
    • Product Kit Identifier : N
    • Product Manager : DANIEL NEVES
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • IP Degree Of Protection : IP2X connectors:, IP4X front panel:, IP3x other parts:
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Halogene Performance : Product contains halogen above thresholds
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Carbon Footprint : 37.67909924
    • Circularity Profile : ENVEOLI2411031EN
    • Environmental Disclosure : ENVPEP2411031EN
    • Halogen Content Performance : Product contains halogen above thresholds
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-85 %
    • Pep Code : ENVPEP2411031EN
    • Pep Verification Date : 2023-12-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Range Of Product : ComPact NSX100...250, ComPact NSX400...630, ComPact NS630b...1600, ComPact NS1600b...3200
    • Product Or Component Type : I/O module
  • Output Attributes
    • Number Of Outputs : 3 digital
    • Output Type : digital 250 V - AC - 5 A
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Input Type : digital state 1 19.8-25.2 V - DC - 6.1-8.8 mA, digital state 0 0-19.8 V - DC - 0-0 mA
    • Number Of Inputs : 6-6 digital, 1-1 analog
