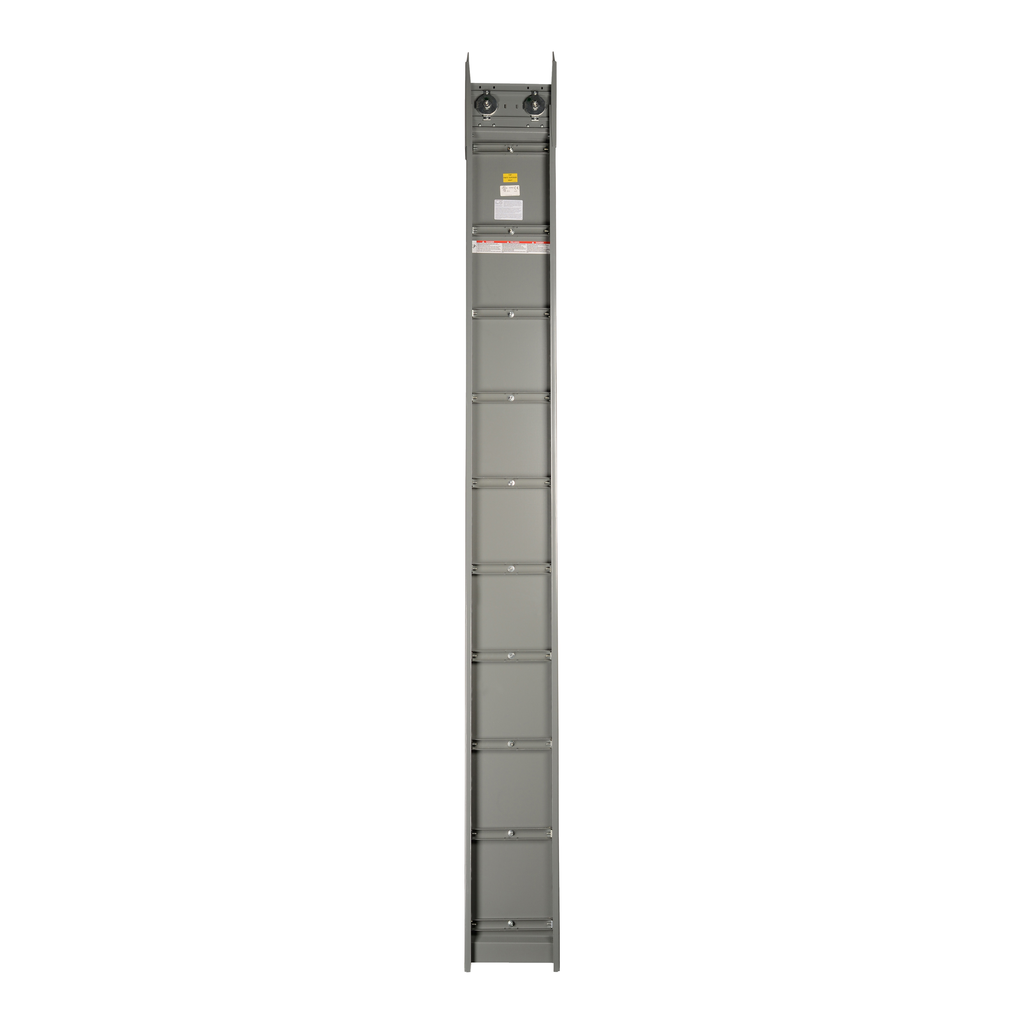

Straight length, I-Line Busway, 2000A, 600VAC, 3 phase, 3 wire, integral ground bus, Al, feeder, 10ft

Straight length, I-Line Busway, 2000A, 600VAC, 3 phase, 3 wire, integral ground bus, Al, feeder, 10ft

SQDAF2320G10ST AF2320G10ST 785901329817
21720.60 / EA
http://schema.org/OutOfStock
Mayer-DDS-Straight length, I-Line Busway, 2000A, 600VAC, 3 phase, 3 wire, integral ground bus, Al, feeder, 10ft-1
  • Certifications: UL Listed File E22182
  • Length: 10 ft
  • Line Rated Current: 2000 A
  • Material: Aluminium: Busbar
  • Number of Phases: 3
  • Standard: CSA C22.2 No 27:1997, IEC 61439-2, UL 857
  • Warranty Length: 18 mth
I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line's plug-in busway has options from 225A to 5000A with aluminum or copper conductors; its feeder busway from 800A to 5000A. I-Line busway is constructed with three pole and four pole full neutral configurations for system voltages to 600 volts. This 10 foot feeder section of busway has an aluminum bus rated at 2000A at 600V. This busway system is configured for a 3 phase, 3 wire system and has a 50 percent capacity integral ground bus.
QTY
  • Product Description
  • Specifications
I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line's plug-in busway has options from 225A to 5000A with aluminum or copper conductors; its feeder busway from 800A to 5000A. I-Line busway is constructed with three pole and four pole full neutral configurations for system voltages to 600 volts. This 10 foot feeder section of busway has an aluminum bus rated at 2000A at 600V. This busway system is configured for a 3 phase, 3 wire system and has a 50 percent capacity integral ground bus.
  • Environment
    • Product Certifications : UL listed file E22182
    • Standards : CSA C22.2 No 27:1997 || IEC 61439-2 || UL 857
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407015EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Compliant
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
  • Complementary
    • Material : aluminium: busbar
    • Trunking Length : 10 ft
    • Line Rated Current : 2000 A
    • Wiring Configuration : 3-wire
    • Protection Type : 50 percent capacity integral ground bus
    • Phase : 3 phase
    • Short-Circuit Withstand : 100 kA
    • [Ue] Rated Operational Voltage : 600 V AC
  • Specifications
    • Length : 10 ft
    • Range Of Product : I-Line
    • Device Application : feeder
    • Product Or Component Type : straight length
