SQUARE D

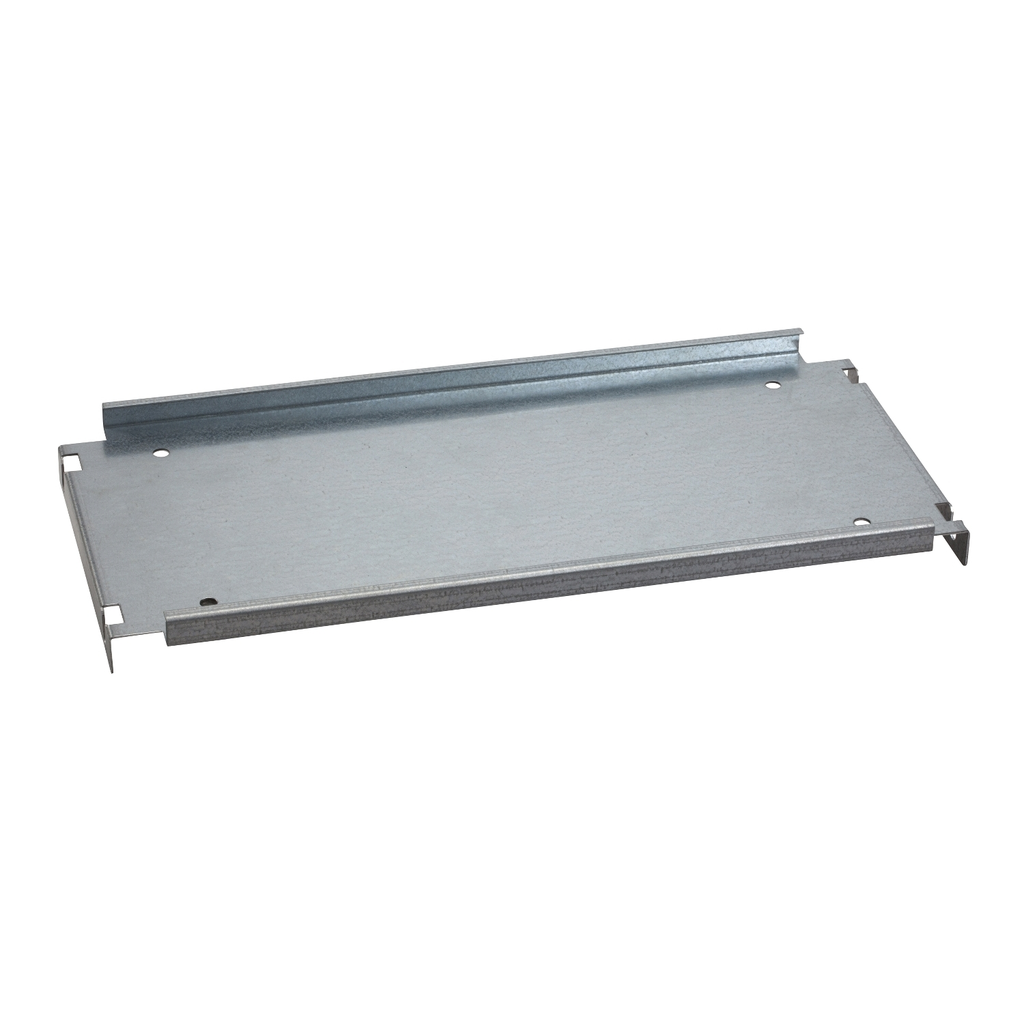

Horizontal support plate for PLA enclosure W500xD320mm

HORIZONTAL SUPPORT PLATE FOR P

SQDNSYBANPLA53 NSYBANPLA53 3606480194504
102.73 / EA
http://schema.org/OutOfStock
Mayer-DDS-Horizontal support plate for PLA enclosure W500xD320mm-1
  • Depth: 240 mm
  • Material: Galvanized Steel
  • Warranty Length: 18 mth
QTY
  • Specifications
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=NSYBANPLA53_3D-CAD
  • Complementary Attributes
    • Maximum Load : 60 kg
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB, SI
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Device Composition : fixing elements, 1 plate
    • Enclosure Nominal Dimensions : -, -
    • Medium Desc : Horizontal support plate for PLA enclosure W500xD320mm
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-12-11
    • Global Commercial Status : Commercialised
    • Return Indicator : N
    • Stocking Flag : Y
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Adjustment : adjustable in height every 50 mm uprights
    • Device Application : multi-purpose
    • Material : galvanised steel
    • Mounting Support : vertical uprights, for installation of one or several support plates
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : support
    • Range : PanelSeT
    • Returnability : No
    • Sustainable Packaging : No
    • Accessory Separate Part Category : installation accessory
    • Pep Code : ENVPEP1109021EN
    • Height Nominal : 18 mm
    • Width Nominal : 458 mm
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Take Back : Nej
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1109021EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1109021EN
  • General Attributes
    • Product Or Component Type : support
  • ETIM
    • ETIM 8 : EC000213
    • ETIM 9 : EC000213
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 240 mm
