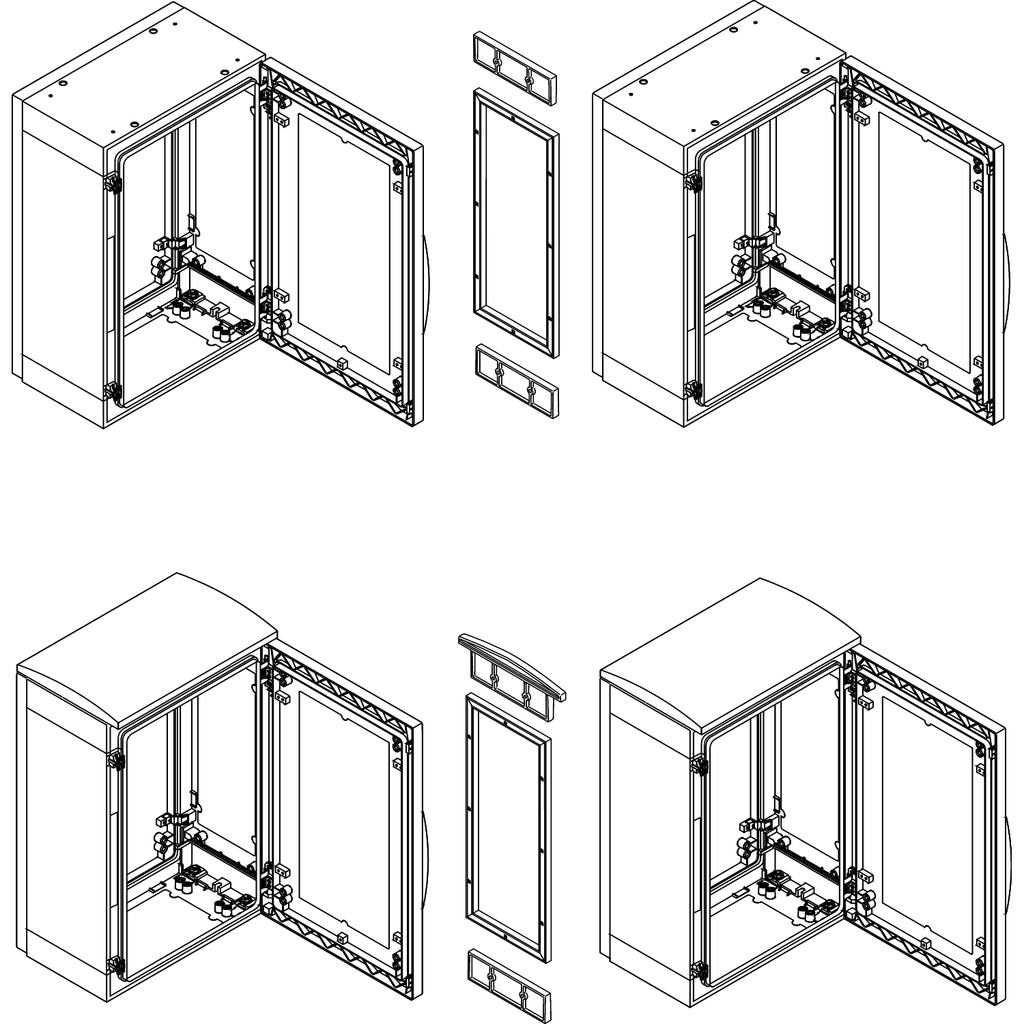

Coupling frame for PanelSeT PLA enclosures mounted on ZA plinth. The frame is made from polyester. The frame width is 15mm. The nominal height is 1000mm. The depth is 320mm. The coupling frame has a grey (RAL 7035) color. Fixed on side coupling of 2 encl

• Range Compatibility
• PanelSeT PLA suitable enclosure
• Material
• frame polyester
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Device Composition
• 1 frame
• fixing elements
• Persona Type Ids
• LC
• OM
• OM8
• PB
• SI
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Color
• Gray RAL 7035)

• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-16
• ETIM 10 : EC002622
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1916
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Device Application : multi-purpose
• Mounting Location : side coupling of 2 enclosures
• Mounting Support : ZA plinth
• Package Weight Lbs : 1.060 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : coupling frame
• Range : PanelSeT
• Returnability : No
• Sustainable Packaging : No
• Accessory Separate Part Category : coupling accessory
• General Attributes
• Product Or Component Type : coupling frame
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=421416374&lang=en-us
• Take Back : No
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP110505EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Ip Degree Of Protection : IP55
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Spain
• Height : 39.37 in
• Width : 0.59 in
• Depth : 12.6 in
