SQUARE D

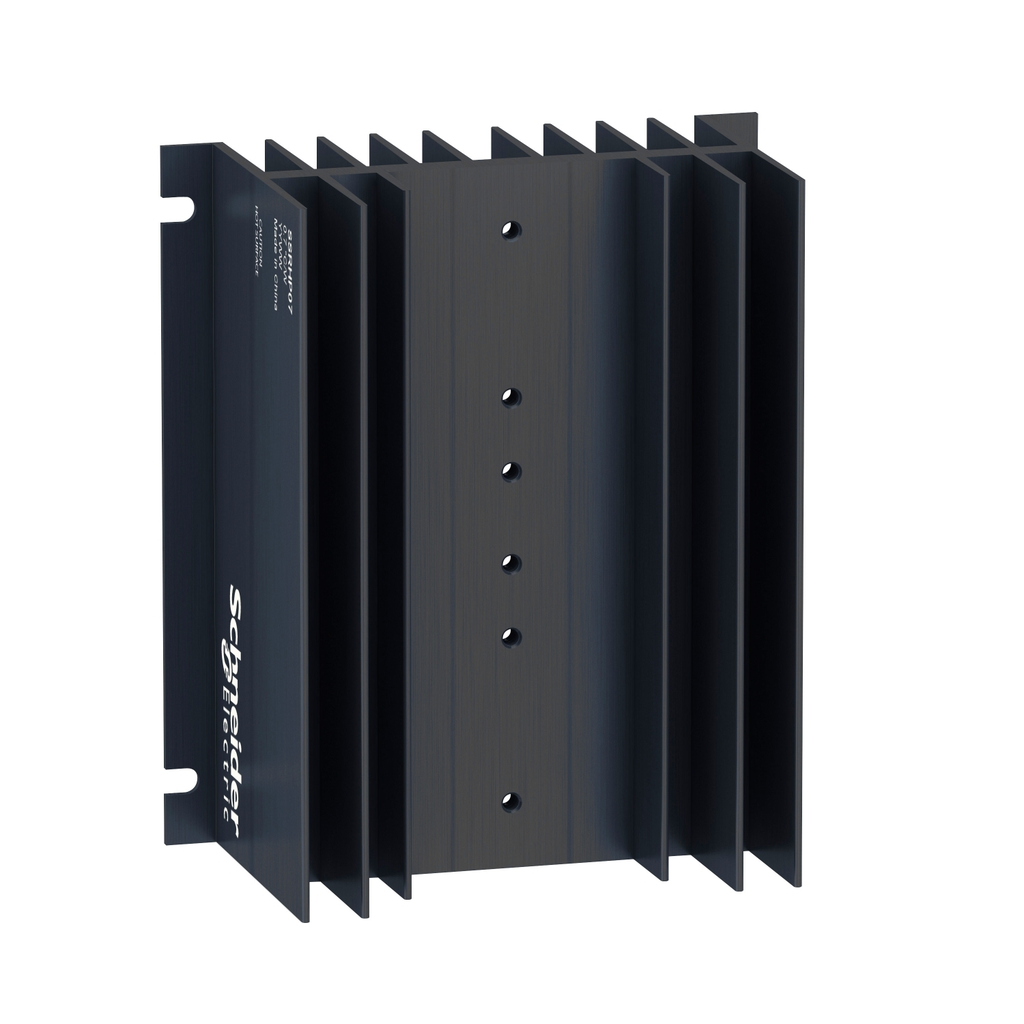

Heat sink, Harmony, panel mount, thermal resistance 0.7 degree C W

SSP HEATSHRINK 0.7 C W

SQDSSRHP07 SSRHP07 3606485442198
39.24 / EA
http://schema.org/OutOfStock
Mayer-DDS-Heat sink, Harmony, panel mount, thermal resistance 0.7 degree C W-1
  • Depth: 66.8 mm
  • Height: 120.7 mm
  • Material: Aluminum
  • Net Weight: 0.526 g
  • Number of Holes: 6
  • Width: 139.7 mm
QTY
  • Specifications
  • Complementary
    • Height : 120.7 mm
    • Product Compatibility : 1 solid state relay SSR panel
    • Sale Per Indivisible Quantity : 1
    • Number Of Mounting Holes : 6 UNC 8-32
    • Mounting Support : panel
    • Surface Finish : black anodized
    • Surface And Useful Surface : 1640 cm²
    • Thermal Resitance : 0.7 °C/W
    • Width : 139.7 mm
    • Depth : 66.8 mm
    • Material : aluminium
    • Net Weight : 0.526 g
    • Tightening Torque : 1.7-2.2 N.m
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1308009
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
  • Specifications
    • Range Of Product : Harmony Solid State Relays
    • Product Or Component Type : heat sink
